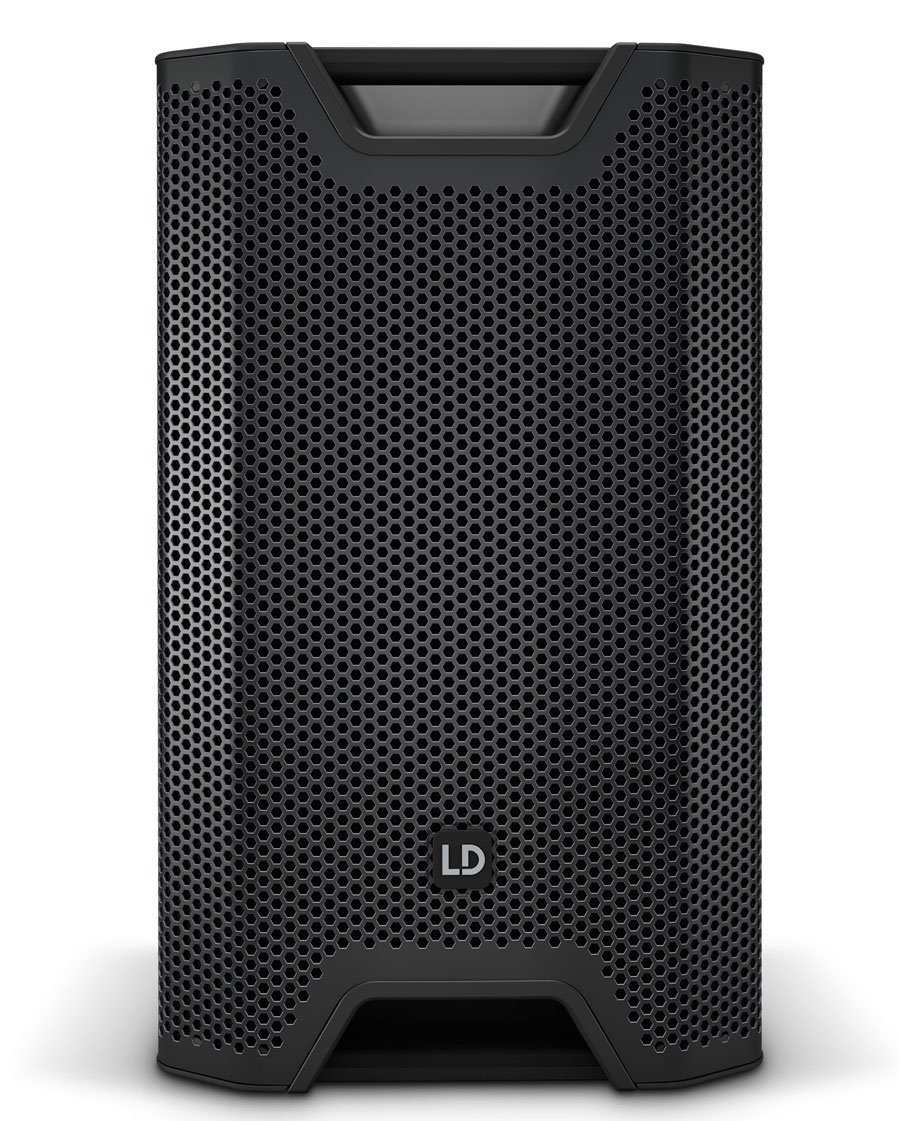

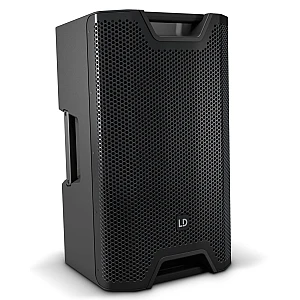

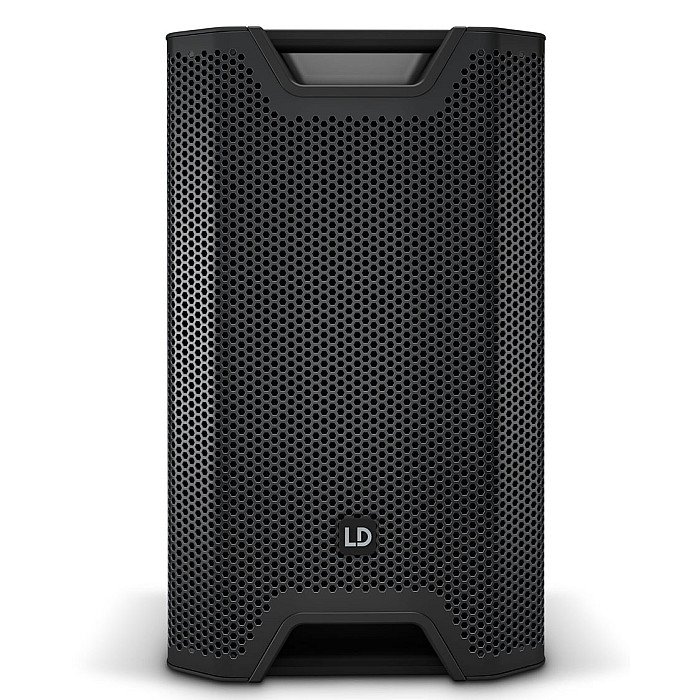

LD Systems ICOA 12A 12inch Powered Coaxial PA Loudspeaker

Spesifikasi LD Systems ICOA 12A 12inch Powered Coaxial PA Loudspeaker

LD Systems ICOA 12A 12inch Powered Coaxial PA Loudspeaker

This full-range loudspeaker impresses with its outstanding sound, even at low frequencies. The ICOA 12 A by LD Systems is a genuine all-rounder that offers unparalleled features for its class. Its coaxial design, rotating, BEM-optimised CD horn and extensive and precisely calibrated DynX DSP presets make this powered 12" loudspeaker exceptionally flexible. The outstanding bass reproduction from the horn-loaded woofer makes the LD ICOA 12 A the ideal choice for musicians, bands, entertainers and dance schools. It also allows DJs to play sets without the need for a subwoofer. Deployed vertically, the speaker impresses as a satellite; horizontally, it's excellent in suspended systems or as a floor monitor. The efficient class-D power amplifier delivers 126 dB max. SPL and 1200 W peak performance.

Drawing on DynX DSP technology by LD Systems, the speaker delivers perfect performance with maximum clarity and power under all conditions. 4 presets, a 3-band EQ and a delay function facilitate optimal adjustment of the sound to the venue conditions. The 2 line/mic input channels with individual gain controllers, plus mono mix output, allow a variety of signal sources to be connected. Thanks to its shock-resistant front grille and ideal 55° tilt angle, the LD ICOA 12 A is also outstanding as a floor monitor. Placed vertically, the 36 mm dual tilt stand attachment offers the choice of a 0° or 5° tilt angle for optimally adapting the system to the local acoustic environment.

Extensive and smart accessories for installation and transport are optionally available. 4 aluminium handles with an ergonomic rubber surface provide optimal grip when carrying the speaker.

Features

• Can be used vertically and horizontally thanks to coaxial construction with rotating BEM-optimised CD horn
• DynX DSP with 4 presets, 3-band EQ and delay
• Equipped with: 12" LF and 1" HF driver
• Class D amplifier
• Power: 300 Watts RMS / 1200 W peak
• Maximum SPL: 126 dB
• Frequency range: 50 - 20000 Hz
• Dispersion pattern: 90° x 50°
• With rotating horn

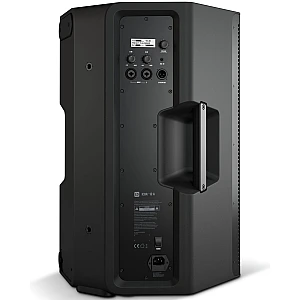

• 2x XLR/jack combo Mic/Line inputs
• AUX input via 3.5 mm stereo mini jack
• XLR mono mix output

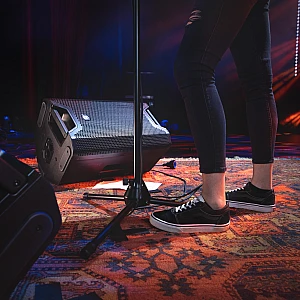

• Monitor angle: 55°

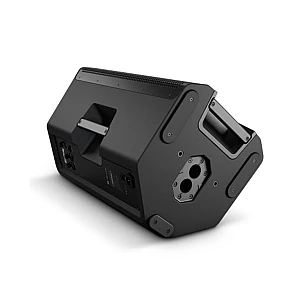

• 2x 36 mm pole mount with fixed inclination angles (0° / 5°)
• 6 x M10 rigging points
• 4 Handles
• Power consumption: 150 W
• Dimensions (W x H x D): 375 x 635 x 396 mm
• Weight: 19.95 kg
•

1. General
2. Product type PA loudspeaker
3. Type Powered
4. Low/mid Woofer dimensions 12 "
5. Woofer dimensions (mm) 304.8 mm
6. Woofer magnet Ferrite
7. Woofer brand Custom-made
8. Horn BEM optimized CD Horn
9. HF driver dimensions 1 "
10. HF driver dimention (mm) 25.4 mm
11. HF driver magnet Ferrite
12. HF driver brand Custom-made
13. HF driver voice coil 1.4 "
14. HF driver voice coil 35 mm
15. Amplifier Class D
16. Dispersion (H x V) 90° x 50°
17. System Power (RMS) 300 W
18. Peak power 1200 W
19. Frequency response 50 Hz - 20000 Hz
20. Crossover frequency kHz 2 kHz
21. Max. SPL (Peak) 126 dB
22. Protection circuits Multiband limiter, over voltage, over-current, thermal overload
23. Controls 2 x gain, On / off switch, Rotary/push encoder
24. Indicators LC display
25. Mic/ line inputs 2
26. Mic-/ Line Input Connectors 6.3 mm jack Combination sockets (symmetrical), XLR
27. Line inputs 1
28. Line input connectors 3.5 mm TRS
29. Line outputs 1
30. Line output connectors XLR
31. Operating voltage SMPS
32. Power consumption 150 W
33. Ambient temperature (in operation) 0 - 40 °C
34. Operating voltage 100 V - 240 V AC / 50 - 60 Hz
35. Relative Humidity < 80 %, not condensing
36. Fuse T4AL 250 V
37. Cabinet material Polypropylene
38. Cabinet construction Bass Reflex
39. Mounting 36mm flange (0°, 5°), 6 x M10 flying points
40. Monitor angle 55 °
41. Width 375 mm
42. Height 635 mm
43. Depth 396 mm
44. Accessories (included) Power cord
