ADAM Audio A5X 5.5 inch Powered Studio Monitor, UK Plug

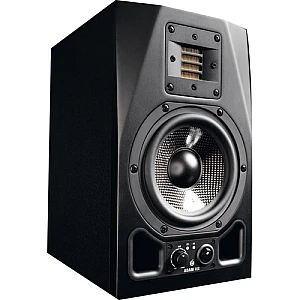

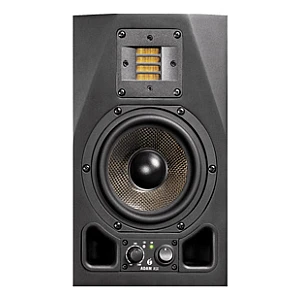

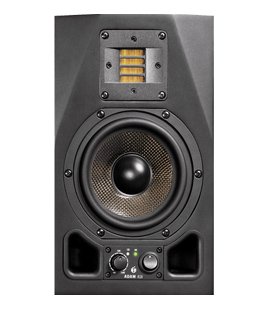

The A5X from Adam Professional Audio is a professional-quality studio monitor speaker that delivers high-quality audio from a compact design. The speaker features a 5.5" carbon fiber/rohacell/glass fiber midwoofer and an X-ART tweeter to deliver crisp, natural audio with a wide frequency response. Each driver is powered by its own 50W amplifier for strong, distortion-free performance. Dual bass ports on the front of the cabinet help to extend the bass response.

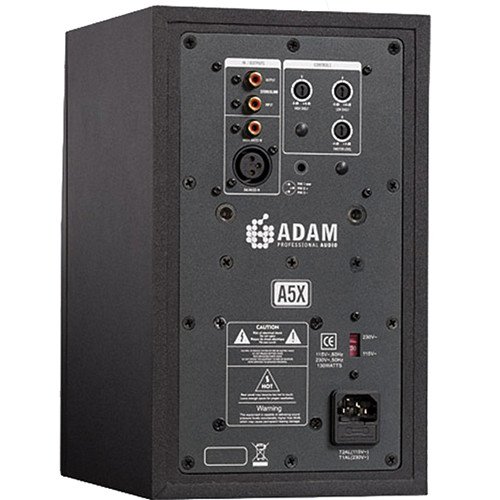

The monitor has XLR and RCA input connectors, allowing you to connect to virtually any audio system or device you encounter. A unique Stereolink connector, consisting of 2 RCA jacks, allows you to bypass a second stereo channel to a second speaker. This lets you connect a pair of A5X speakers together and control the overall stereo volume of the system from either speaker's gain knob. This is ideal for small, mixer-free applications where volume needs to be adjusted easily. In addition to the main gain control on the front panel, the A5X also features a tweeter gain control and a set of high and low shelving controls on the rear panel.
Features
- Compact design, ideal for home, project, and mobile studios
- 5.5" carbon fiber/rohacell/glass fiber midwoofer and X-ART tweeter deliver crisp, natural audio with a wide frequency response
- Each driver is powered by its own 50W amplifier for strong, distortion-free performance
- Dual bass ports on the front of the cabinet help to extend the bass response
- XLR and RCA input connectors allow you to connect to virtually any audio system or device you encounter
- Unique Stereolink connector lets you connect a pair of A5X speakers together and control the overall stereo volume of the system from either speaker's gain knob. This is ideal for small, mixer-free applications where volume needs to be adjusted easily
- Front-panel gain control and rear-panel tweeter gain control for precise adjustments, plus high and low shelving filter controls
Specs
- Low Frequency Driver 5.5" (140mm) Carbon Fiber/Rohacell/Glass Fiber Midwoofer
- High Frequency Driver X-ART Tweeter
- LF Amplifier 50W RMS
- HF Amplifier 50W RMS
- Crossover 2.5kHz
- Frequency Range 50Hz - 50kHz
- Maximum Sound Pressure Level (SPL) 110dB, Peak
- Connectors 1 x XLR Input
- 1 x RCA Input
- 1 x RCA Stereolink Connector (2 Jacks)
- 1 x Power Input
- Input Impedance 30 kOhms
- Controls and Indicators 1 x Power Switch
- 1 x Gain Control
- 1 x Tweeter Gain Control
- 1 x High Shelving Control
- 1 x Low Shelving Control
- Shielded No
-
Dimensions (HxWxD) 11 x 6.5 x 8.5" (280 x 170 x 220mm)
Weight 14.6 lbs (6.6kg)
Packaging Info
Package Weight 18.2 lb/8.255381Kgs
Box Dimensions (LxWxH) 16.4 x 13.3 x 11.7"
