Focal Focal SM 9 Focal SM 9

Spesifikasi Focal SM 9

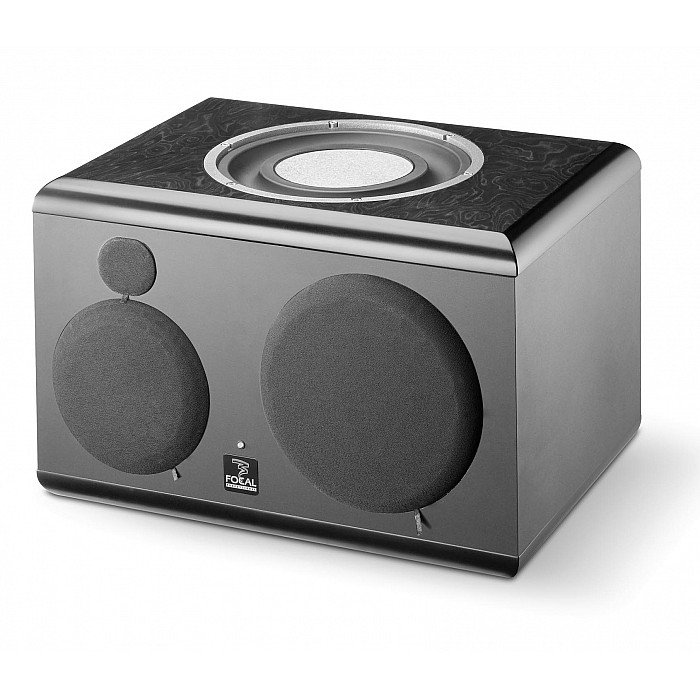

Focal SM 9

This monitoring speaker establishes itself as a reference thanks to the precision of the stereo image, its capacity to reproduce each of the micro details of the audio signal , as well as unconditional respect of the original dynamics.
One of the major SM9 innovations lies in the fact of offering 2 monitoring speakers in only one and unique cabinet. The SM9 is thus composed of 2 monitors: a 3 way monitor and a 2 way monitor.

Specifications

Frequency response : 3-way mode : 30Hz - 40kHz (+/- 3dB) / 40Hz - 20kHz (+/- 1dB) - 2-way mode (Focus) : 90Hz - 20kHz (+/- 3dB)
Maximum SPL : 3-way mode : 116dB SPL (peak @ 1m) / 2-way mode (Focus) : 106dB SPL (peak @ 1m)
Input : Type / Impedance : Electronically balanced / 10 kOhms / Connector : XLR / Sensitivity : Adjustable, +4dBu or -10dBV
Bass : 400W, class AB
Midrange : 100W, class AB
Treble : 100W, class AB
Power supplies : Local supply : 230V (3.15A fuse), 115V (6.3A) - Connection: IEC inlet and detachable power cord

Indicators :

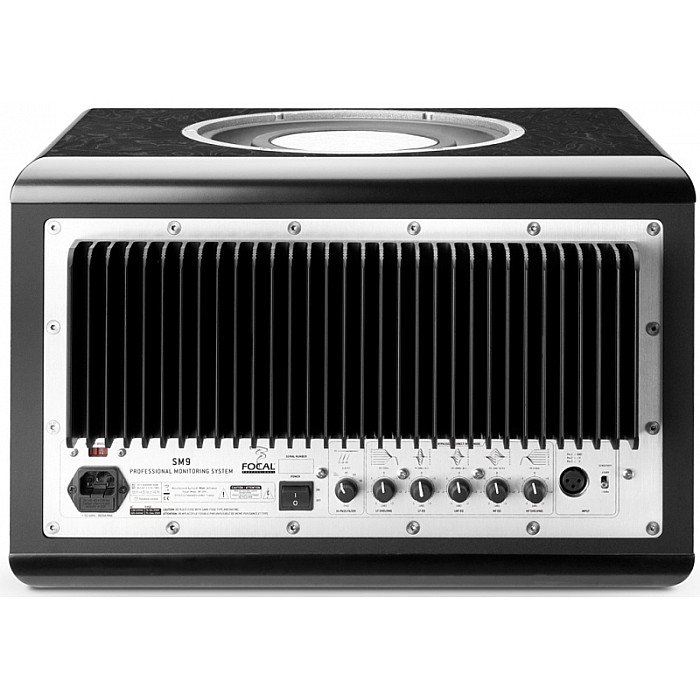

Rear panel
Input sensitivity selector (+4dBu / -10dBV)
High-pass crossover (full range, 45, 60, 90Hz @ -6dB)
Low frequency shelving
(+/- 3dB from 30 to 250Hz per step of 0.5dB)
High frequency shelving
(+/- 3dB from 4.5 to 40kHz per step of 0.5dB)
Low frequency EQ
(+/- 3dB per step of 0.5dB @ 50Hz, Q factor = 2)
Low-mid frequency EQ
(+/- 3dB per step of 0.5dB @ 160Hz, Q factor = 1)
Mid frequency EQ
(+/- 3dB per step of 0.5dB @ 1kHz, Q factor = 0.6)
Side panel
Stand By / On switch
Direct switch
Focus switch

warning light : Power On, clipping and default on front panel LED

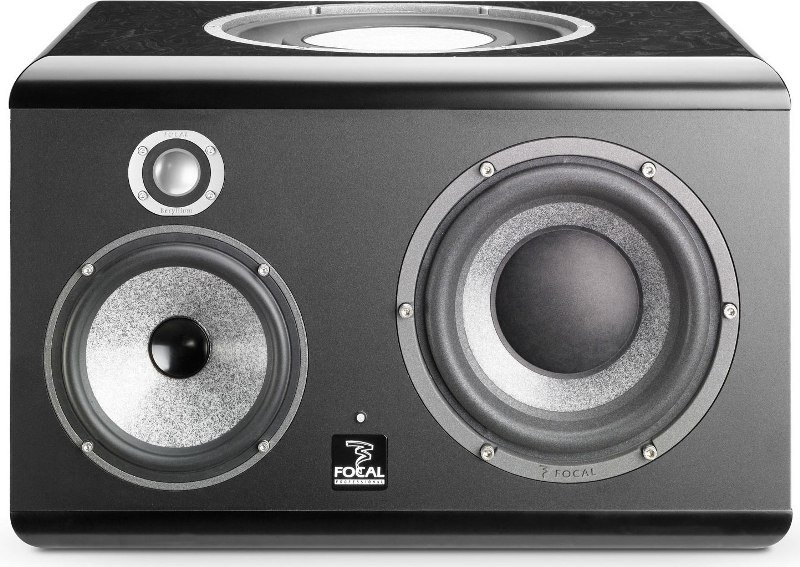

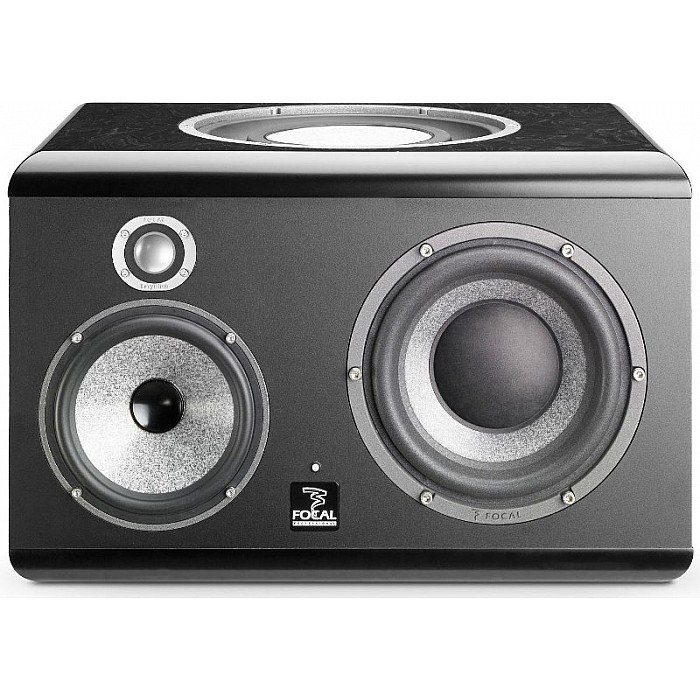

Passive radiator : 11WPP52, 11” (27cm) Focal “W” composite sandwich cone piston, extra wide inverted surround radiator

Subwoofer :

8W7571, 8” (20cm) Focal “W” composite sandwich cone driver

Midrange : 6W0452, 6.5” (16.5cm) Focal “W” composite sandwich cone driver
Tweeter : TB872, 1” pure Beryllium inverted dome tweeter
Construction : 0.88”(22mm) and 1.2” (30mm) panels with internal braces

Finish :

Black natural veneering top and bottom panels, black body

Dimensions : 12.8” x 19.6” x 15.6” (320mm x 490mm x 390mm)
Net weight : 77lb (35kg)
Rp.85.300.000,00

Focal SM 9

Merek: Focal
Kode Produk: SM 9
Ketersediaan: Pre-Order
Harga:
Rp.85.300.000,00

Spesifikasi Focal SM 9

Focal SM 9

This monitoring speaker establishes itself as a reference thanks to the precision of the stereo image, its capacity to reproduce each of the micro details of the audio signal , as well as unconditional respect of the original dynamics.
One of the major SM9 innovations lies in the fact of offering 2 monitoring speakers in only one and unique cabinet. The SM9 is thus composed of 2 monitors: a 3 way monitor and a 2 way monitor.

Specifications

Frequency response : 3-way mode : 30Hz - 40kHz (+/- 3dB) / 40Hz - 20kHz (+/- 1dB) - 2-way mode (Focus) : 90Hz - 20kHz (+/- 3dB)
Maximum SPL : 3-way mode : 116dB SPL (peak @ 1m) / 2-way mode (Focus) : 106dB SPL (peak @ 1m)
Input : Type / Impedance : Electronically balanced / 10 kOhms / Connector : XLR / Sensitivity : Adjustable, +4dBu or -10dBV
Bass : 400W, class AB
Midrange : 100W, class AB
Treble : 100W, class AB
Power supplies : Local supply : 230V (3.15A fuse), 115V (6.3A) - Connection: IEC inlet and detachable power cord

Indicators :

Rear panel
Input sensitivity selector (+4dBu / -10dBV)
High-pass crossover (full range, 45, 60, 90Hz @ -6dB)
Low frequency shelving
(+/- 3dB from 30 to 250Hz per step of 0.5dB)
High frequency shelving
(+/- 3dB from 4.5 to 40kHz per step of 0.5dB)
Low frequency EQ
(+/- 3dB per step of 0.5dB @ 50Hz, Q factor = 2)
Low-mid frequency EQ
(+/- 3dB per step of 0.5dB @ 160Hz, Q factor = 1)
Mid frequency EQ
(+/- 3dB per step of 0.5dB @ 1kHz, Q factor = 0.6)
Side panel
Stand By / On switch
Direct switch
Focus switch

warning light : Power On, clipping and default on front panel LED
Passive radiator : 11WPP52, 11” (27cm) Focal “W” composite sandwich cone piston, extra wide inverted surround radiator

Subwoofer :

8W7571, 8” (20cm) Focal “W” composite sandwich cone driver

Midrange : 6W0452, 6.5” (16.5cm) Focal “W” composite sandwich cone driver
Tweeter : TB872, 1” pure Beryllium inverted dome tweeter
Construction : 0.88”(22mm) and 1.2” (30mm) panels with internal braces

Finish :

Black natural veneering top and bottom panels, black body

Dimensions : 12.8” x 19.6” x 15.6” (320mm x 490mm x 390mm)
Net weight : 77lb (35kg)
