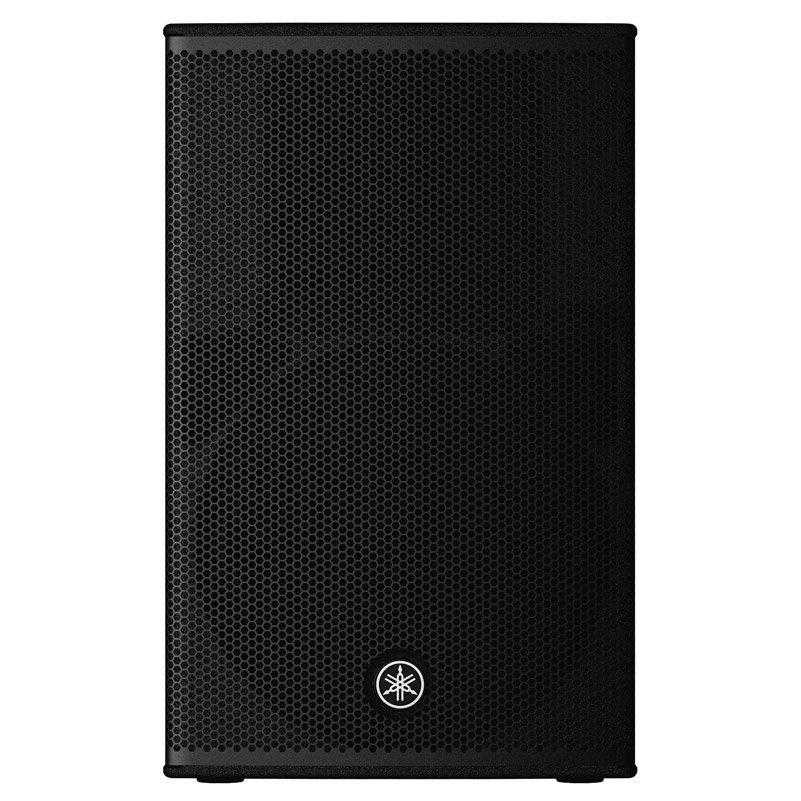

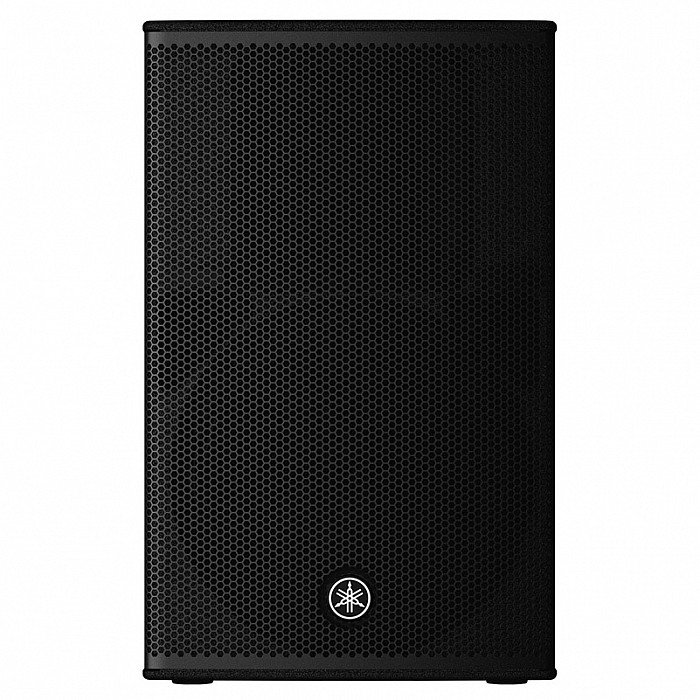

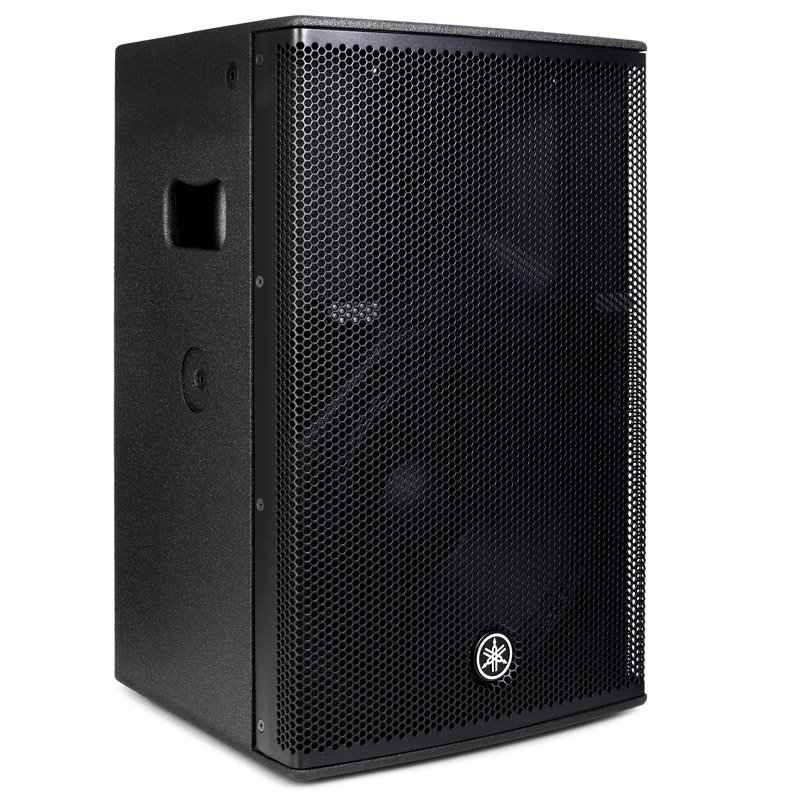

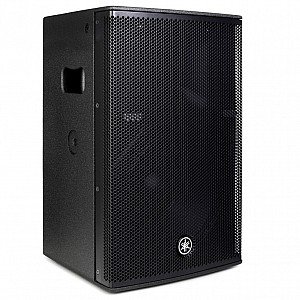

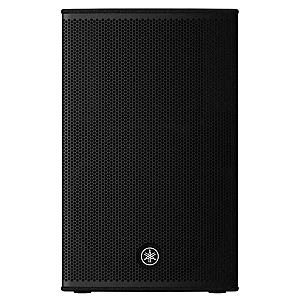

Yamaha DHR12 1000 watt 12 inch Powered Loudspeaker

Spesifikasi Yamaha DHR12 1000 watt 12 inch Powered Loudspeaker

Yamaha DHR12 1000 watt 12 inch Powered Loudspeaker

A Brawny Powered Speaker with High-precision DSP

Driven by 1,000 muscular watts of Class D power, the Yamaha DHR12 offers crystal-clear reproduction with a thunderous maximum output of 130dB. This compact 2-way powered loudspeaker houses a high-compliance 12-inch woofer and a 1.4-inch high-frequency compression driver, yielding a wide-ranging 48Hz–20kHz frequency response. You’ll appreciate the high-definition sound afforded by the DHR12’s 48-bit DSP, which includes D-Contour multiband dynamic processing with intelligent sensing. And thanks to this speaker’s dual pole sockets and rotatable horn, you’ll find that achieving optimal speaker positioning and room-filling coverage is a piece of cake. The DHR12 is housed in a hard-wearing polyurea-coated plywood enclosure. The live sound experts here a sing the praises of the DHR12’s versatile design.

Powered by a 1,000-watt Class D amplifier, this 12-inch active loudspeaker features a 1.4-inch high-frequency compression driver mated to a rotatable 90-degree x 60-degree horn to ensure smooth, consistent coverage regardless of orientation. Moreover, the DHR12’s 48-bit DSP with D-Contour intelligent dynamic control ensures optimal sound at every volume level. You also get dual pole sockets that allow either straight placement or a 7-degree downward tilt to best serve your audience.

Features:

• Driven by 1,000 muscular watts of Class D power
• Crystal-clear reproduction with a thunderous maximum output of 130dB
• High-compliance 12-inch woofer and a 1.4-inch high-frequency compression driver yield a 48Hz–20kHz frequency response
• Rotatable 90° x 60° horn ensures smooth, consistent coverage regardless of speaker orientation
• 48-bit digital processing delivers high-definition sound
• D-Contour intelligent dynamic control ensures optimal sound at every volume level
• 2 pole sockets allow either straight placement or a 7° downward tilt to certify optimal coverage
• Hard-wearing polyurea-coated plywood enclosure

​

Specifications

• Powered: Yes
• Power Configuration: Bi-amped
• LF Driver Size: 12" woofer
• HF Driver Size: 1.4" Titanium compression driver
• LF Driver Power Amp: 800W
• HF Driver Power Amp: 200W
• Total Power: 1000W Peak

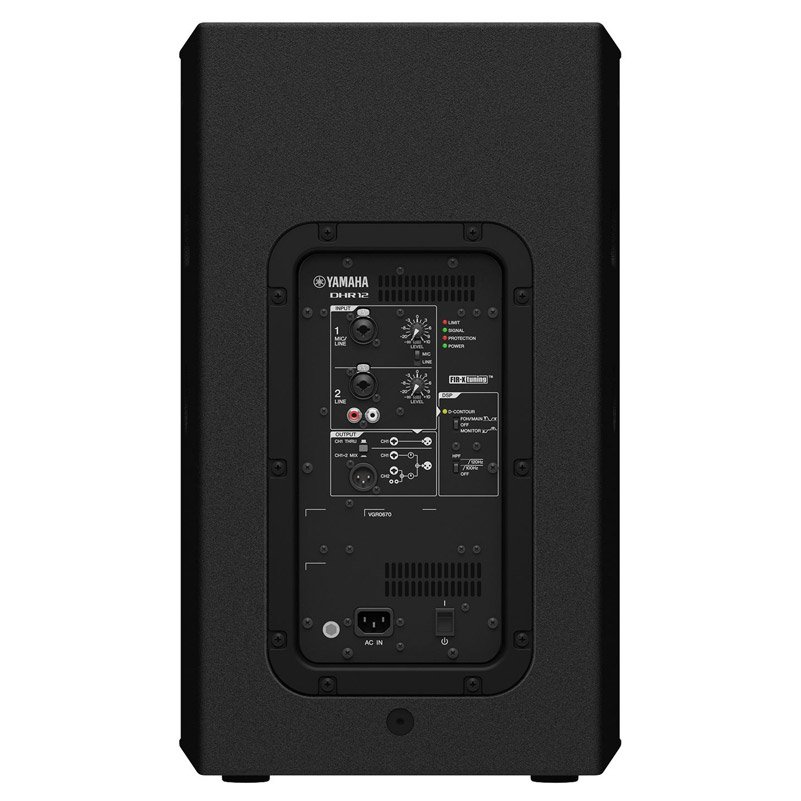

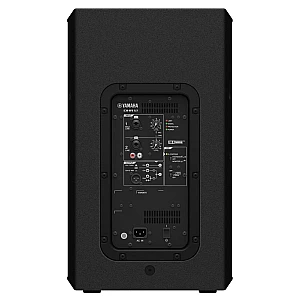

• Inputs: 2 x XLR-1/4" combo, 1 x Dual RCA Stereo
• Outputs: 1 x XLR
• Frequency Range: 52Hz-20khz (-10 dB)
• Maximum Peak SPL: 125dB SPL
• Horizontal Coverage Angle: 90°
• Vertical Coverage Angle: 60°
• Enclosure Material: Plywood
• Mounting Options: Pole, Floor, Wall-mount
• Power Source: Standard IEC AC cable
• Height: 13.4"
• Width: 14.1"
• Depth: 22.8"
• Weight: 42.3 lbs.
• Manufacturer Part Number: DHR12
