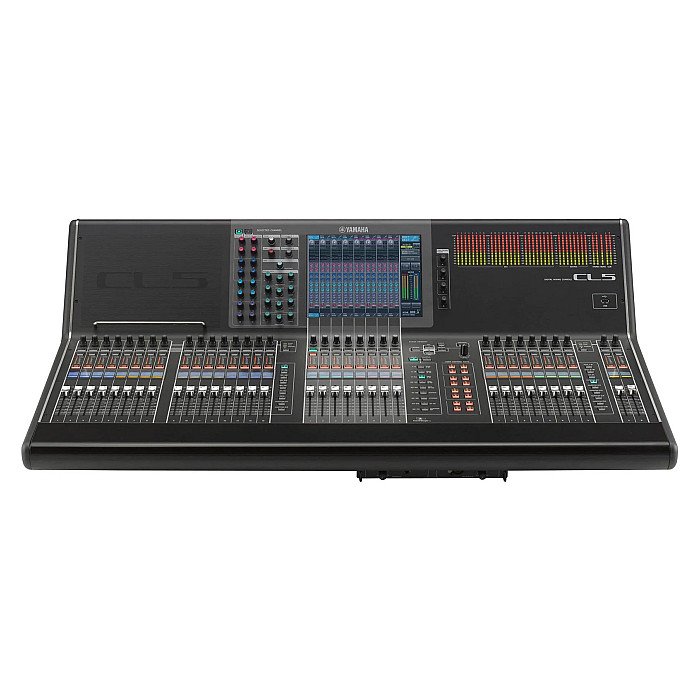

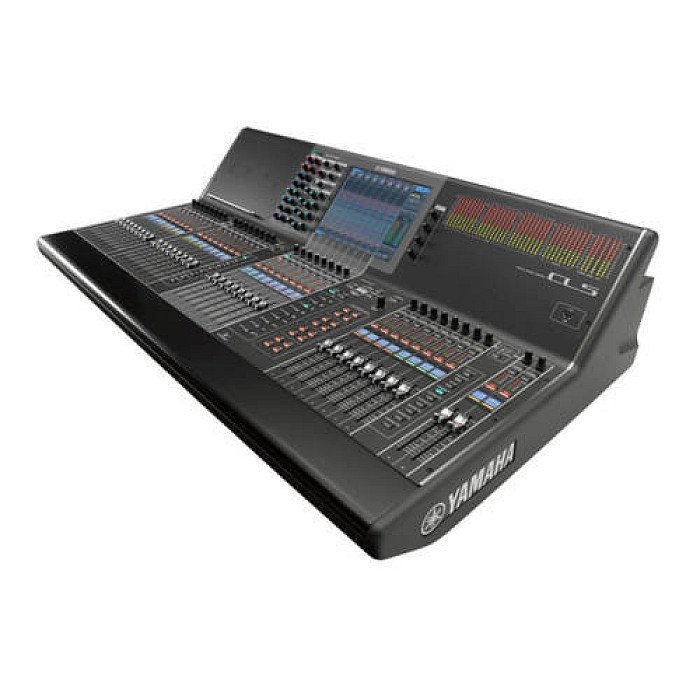

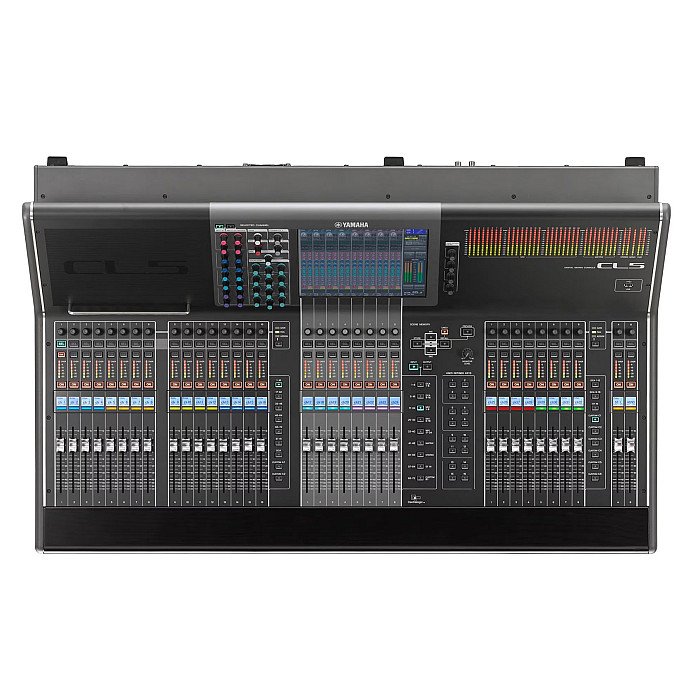

Yamaha CL5 Digital Audio Mixer Console

Spesifikasi Yamaha CL5 Digital Audio Mixer Console

Yamaha CL5 Digital Audio Mixer Console

The Standards Stay, But Innovation Never Ends.

The pursuit of perfection is ongoing and will probably never end, but along the way Yamaha has introduced a number of innovations that have become industry standards offering performance and familiarity that discerning users continue to demand. By definition, “standards” are best kept as they are. With evolutionary refinements, of course. Yamaha CL series digital mixing consoles represent a new level of refinement. They offer an evolved experience in accessible mixing, plus sonic purity with sound shaping capabilities that will give the most imaginative engineer unprecedented creative freedom. The CL series embodies the leading standards in live sound in their most advanced, most expressive form. Yamaha CL series digital mixing consoles represent a new level of refinement. They offer an evolved experience in accessible mixing, plus sonic purity with sound shaping capabilities that will give the most imaginative engineer unprecedented creative freedom. The CL series embodies the leading standards in live sound in their most advanced, most expressive form. With a three-section fader layout for efficient hands-on control, the CL5 is the ideal choice for a diverse spectrum of live sound systems.

Every engineer, artist, and audience agrees that sound quality is the bottom line. That’s a given. Through thorough analysis, review, and refinement of every detail of the circuitry and technology used, Yamaha CL series consoles deliver naturally superior sound plus a comprehensive range of “coloring” options that give the sonic craftsmen who will use them extraordinary creative freedom. The signal processors provided are plentiful and of the highest quality, including extraordinary Portico 5033/5043 EQ and compressor devices that bring Yamaha VCM technology together with the legendary talents of Rupert Neve. The platform is pure and natural, so the engineer can create and deliver the ideal sound. A truly useful sound reinforcement console is one that can keep pace with the rapidly and dramatically changing demands of live sound applications. Efficient, intuitive operation is essential. Yamaha’s acclaimed Centralogic concept is the core of a refined user interface that offers a new, unprecedented level of operating efficiency in the CL series, from visual feedback right down to the form and feel of the faders and controls.

Features

• 32-fader digital mixing console
• 72 mono and 8 stereo mixable channels
• Connect up to 8 Rio series stages boxes (sold separately) for I/O
• Touchscreen display for intuitive control over the Centralogic user interface
• Built-in Dante interface plus 3 MY-card slots for digital expansion
• Control port for computer control (wired or Wi-Fi)
• Portico 5033 EQ and Portico 5043 compressor/limiter processors designed by Rupert Neve Designs
• Dan Dugan automatic mixing system easily optimizes microphone gain and fights feedback
• Nuendo Live and Dante Virtual Soundcard licenses included
•

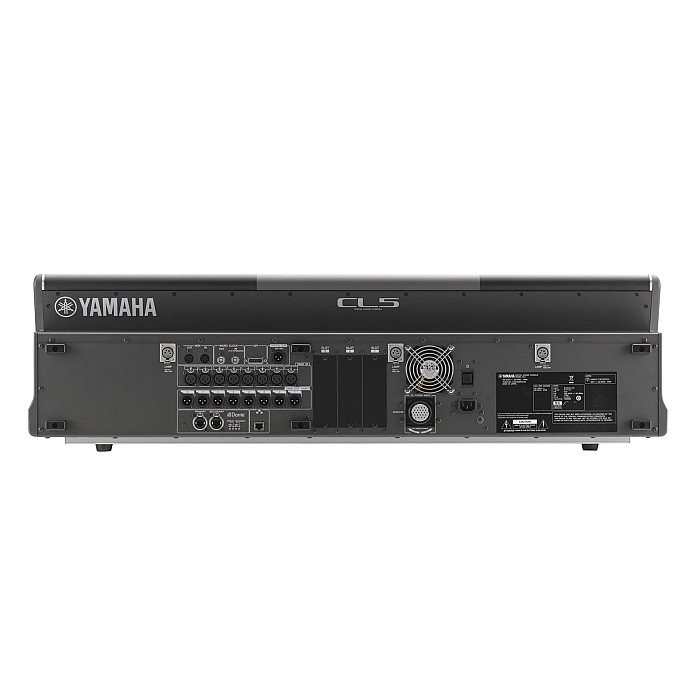

Specifications
Type:Digital
Channels:32 + 2 master faders, 72 mono channel mixing plus 8 stereo channels
Inputs – Mic Preamps:8 x XLR
Phantom Power:8
Outputs – Direct:8 x XLR (line out)
Inputs – Digital:2 x RJ-45 (Dante)
Outputs – Digital:2 x RJ-45 (Dante), 1 x XLR (AES/EBU)
Busses/Groups:16 send Mix bus, 8 send Matrix bus
Channel Inserts:Internal
Talkback:1 x XLR
MIDI I/O:In/Out
Data I/O:1 x D-Sub GPI (15-pin female), 1 x Ethernet
USB:1 x USB Type A
Computer Connectivity:Ethernet
I/O Expansion Slots:3 x Card slots available (DSP cards or mini-YGDAI cards)
Headphones:1 x 1/4″
Word Clock:In/Out
Faders:26 x 100mm faders
EQ Bands:4-band parametric channel EQ, 31-band Graphic EQ, 15-band flex EQ,
Effects:Reverbs, Delays, Modulation, Premium Rack compressor modeling and more
DAW Control:Yes (via Dante)
Height:11.75″
Depth:26.25″
Width:41.5″
Weight:79.4 lbs.
Manufacturer Part Number:CL5
