Wharfedale Pro CPD2600 Power Amplifier

Spesifikasi Wharfedale Pro CPD2600 Power Amplifier

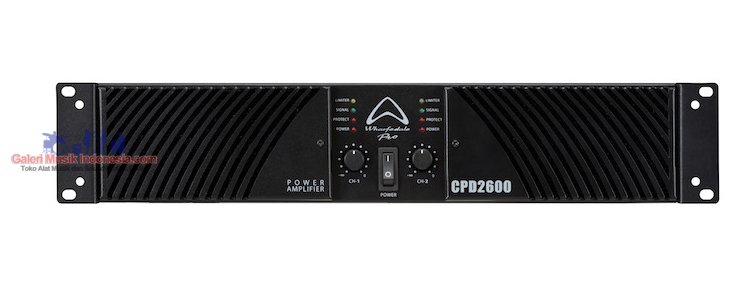

Wharfedale Pro CPD2600 Power Amplifier

Wharfedale CPD 2600 Power Amplifier sits in the middle of the new amp range and shares the same affordable yet high-quality performance as its sister models. If you're looking for an amp suitable for small to large sized PA systems, the model is for you thanks to its 650W RMS per channel at 8 Ohms and 1000W RMS per channel at 4 Ohms.

By utilising the model's bridged mode, you can enjoy 4 Ohms that creates 2600W RMS. Thanks to this massive power, the amplifier can be integrated into larger touring rigs and installs if you need long throw and superbly high power audio.

Protected Design

The CPD2600 protects your kit thanks to a built-in switchable limiter which allows over 8Vrms signal through without distortion. Added to this, the model features thermal, overcurrent, DC and output short protect features.

The internal features of the amplifier are protected within a 2U steel chassis which is easily rack mountable. This resilient all-steel casing offers a removable air filter in the front bracket is easy to clean.

Specifications:

Stereo Power Output
8 Ohms x 2 650W RMS
4 Ohms x 2 1000W RMS
Bridged Mono Output
8 Ohms 1940W RMS
4 Ohms 2600W RMS
Inputs 2 x XLR
Outputs 2 x XLR, 2 x Speakon
Frequency Response 20Hz - 30KHz
Topology Class H
Sensitivity 0dBu (0.775Vrms)
Input Impedance 20K Ohms
Maximum Input Level 22dBu (9.7Vrms)
Slew Rate >40V / us
Crosstalk <-70dB
Signal to Noise >100dB
Protection Switchable Limiter, Thermal protect, Over-current protect, Output DC protect, Output short protect, Power on/off mute
Display 4 segment LED
Cooling Variable Speed Fan
Dimensions 88 x 483 x 451mm
Net Weight 21kg / 46.30lbs
Gross Weight 23kg / 50.71lb
