Roland VR-120HD Direct Streaming AV Mixer

Spesifikasi Roland VR-120HD Direct Streaming AV Mixer

Roland VR-120HD Direct Streaming AV Mixer

Roland VR-120HD

Add a professional hybrid event AV mixer to your production kit with this VR-120HD Direct Streaming AV Mixer from Roland. Combining the advanced functions of a video switcher and an audio mixer, the portable VR-120HD is ideal for live school events, houses of worship, council meetings, corporate events, concerts, and other live performance venues. The switcher offers the capability of live streaming up to two simultaneous streams to popular online forums, such as Facebook and Twitch. The unit features six HDMI inputs and six SDI inputs capable of handling resolutions up to 1080p60, as well as three HDMI and three SDI outputs, 42-channel audio mixing, and direct LAN and USB-C live streaming outputs. Perfect for use as a standalone production switcher, the VR-120HD offers an integrated 7" touchscreen display with a graphical menu for previewing all your incoming signals and viewing your intended program output without ever needing additional preview monitors.

Hybrid live and online productions can easily be managed by a single operator with hands-on control and with sophisticated automation functions, customizable workflows, one-touch macro sequencing, and remote control of up to 12 PTZ cameras. The integrated eight-layer video effects engine, seven selectable output modes, and six HDMI input options with frame rate converters and real-time scalers only scrape the surface of the versatility offered by this switcher, which also handles a wide range of cinema and broadcast frame rates and has internal recording when using an optional SDXC card or USB-A flash drive.

Features

1. Portable hybrid event audio/video mixer with direct streaming encoders
2. A single operator can confidently manage hybrid live and online productions without the need for external gear and the staff to run it
3. Offering extensive audio and video I/O, a large touchscreen, and hands-on controls, this portable powerhouse gives you the tools you need to take on any mid-level production
4. Powerful live production automation with sequencing, macros, and scene memories
5. Built-in streaming encoders for transmitting two livestreams at rates up to 1080p/60 FPS
6. Six 3G SDI inputs with frame rate converters and six 1080p HDMI inputs with frame rate converters and real-time scalers
7. 42-channel digital audio mixer with advanced effects and processing
8. PTZ control for 12 cameras with support for multiple brands and mixed protocols
9.

Create Custom Experiences for Live and Online Audiences

The flexible video capabilities let you handle the diverse presentation needs of events as they happen. Assign sources to eight cross points on the fly, including live video inputs, still images, and video clips. Prioritize cameras and/or computer sources with scene recall. And create custom feeds for live and online viewers by assigning composition layers to multiple busses as needed. The VR-120HD supports both HDMI for most common devices and SDI for long cable runs and high-end cameras. Seamlessly combine six HDMI sources and six SDI sources with a range of broadcast and cinematic frame rates and color spaces with resolutions up to 1080p60. All HDMI inputs feature built-in scalers with EDID and HDCP support, eliminating connection hassles with client-provided sources like computers, tablets, smartphones, gaming consoles, and legacy 4:3 devices.

Integrated Playback of Stills and Video Clips

Enhance events with onboard support for graphics and video playback. Call up still images during transitions between presenters, display graphics for breaks, and use PNGs to create dynamic lower thirds. The integrated video player lets you trigger video clips directly from the SDXC card, with no need to connect an external playback device. Video effects and graphics bring polish and excitement to productions. The VR-120HD's effects engine features eight composition layers that can be assigned to the Program, Sub-Program, and Aux outs, so you'll always keep audiences engaged with visually appealing content. With up to four picture-in-picture windows and two downstream key layers with transparent PNG and external key support, you can manage the creative needs of any client.

Versatile Video Outputs

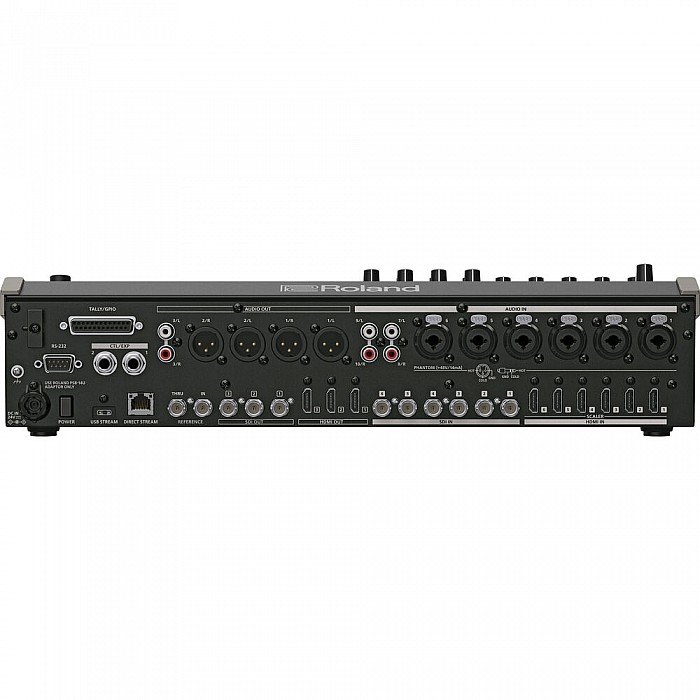

With multiple assignable outputs, including three SDI and three HDMI outputs, a USB-C streaming output, and Ethernet streaming, the VR-120HD puts a high-end video matrix at your command. Feed program displays, auxiliary monitors, multiview producer displays, and online audiences at once, complete with a clean output left over for recording the presentation to an SDXC card. The VR-120HD features six balanced audio inputs with XLR/1/4" combination jacks, high-quality mic preamps, and phantom power. Four RCA inputs are on hand for standard line-level devices, and you can also mix embedded digital audio from the HDMI, SDI, and USB inputs. Bluetooth is available as well for streaming audio from a mobile device.
