Spesifikasi Turbosound Impact TCI52-TR 5" Full Range Loudspeaker

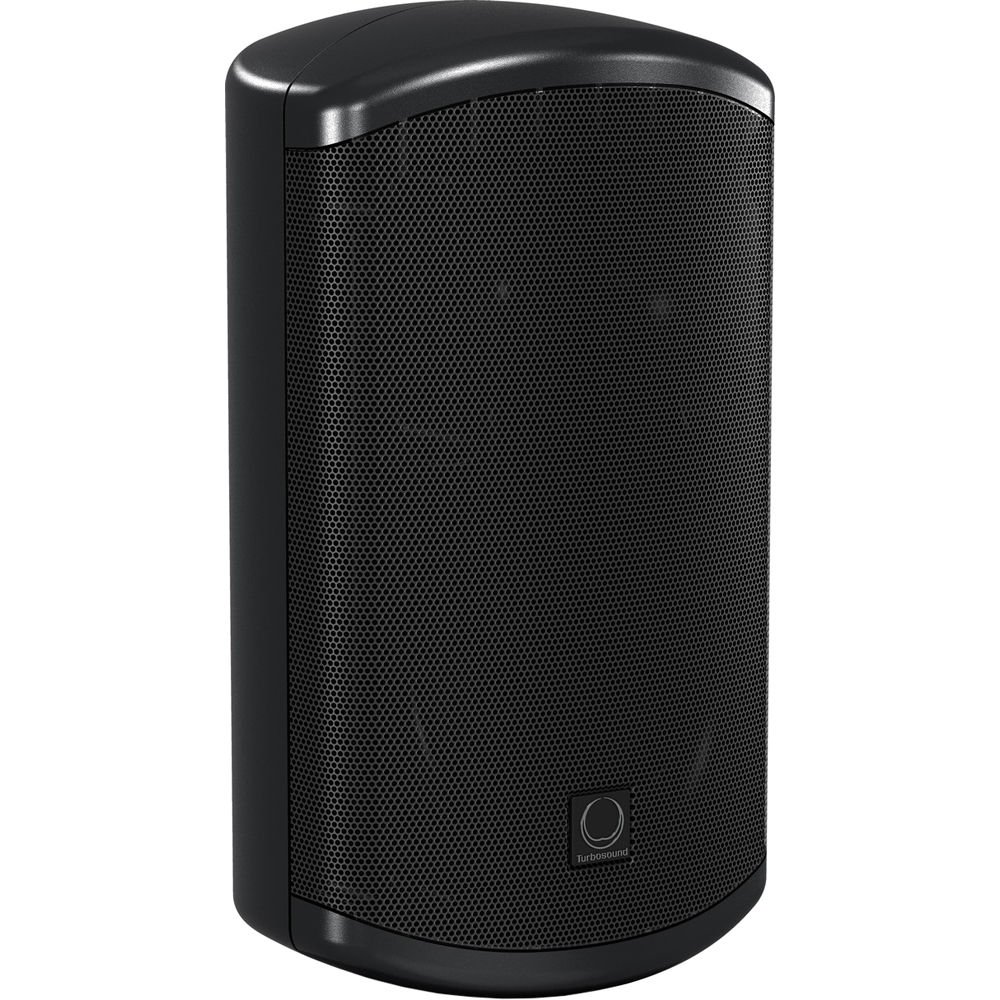

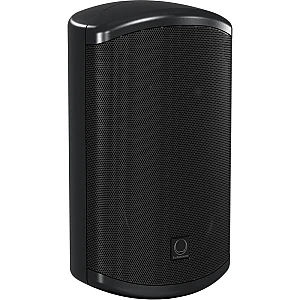

Turbosound Impact TCI52-TR 5" Full Range Loudspeaker

The Turbosound Impact TCI32-TR features a proprietary elliptical waveguide produces a wide 120° H x 100° V dispersion for optimal room coverage. The two way design features a high excursion 5” low frequency driver with high temperature voice coil and a 1” ferrofluid cooled neodymium high frequency driver with an extended frequency range. These custom engineered drivers provide the best possible audio performance, capturing every nuance from your source audio for the best sound. The TCI32-TR Loudspeaker is comprised of an architecturally styled glass filled impact resistant enclosure, design to provide optimal protection of the internal components. The matte black paint finish uses weatherised paint with a zinc plate grill with outdoor powdercoat and weather resistant coated drivers, making this speaker ideal for indoor and outdoor applications/

Design & Connectivity

The TCI32-T’s design makes it ideal for installation applications with the loudspeaker featuring a wall-mount bracket with integral loudspeaker connections for easy mounting capabilities. The semi matte black finish will also fit uniformed in any setup with dual M6 rigging points compatible with Turbo sound and OminMount brackets. A 3/8” mic stand fitting for spot monitor applications is also included for added convenience. The internal line transformer featuring multiple taps for use with 70 and 100 volt line distributed sound applications as well as a 16 ohm input for low-impedance amplifiers. This added versatility, ensures the Turbosound Impact TCI32-TR will work with a range of PA configurations.

Features

• Compact 2 way full range surface-mount loudspeaker for installation applications
• 60 Watts continuous, 240 Watts peak power
• Weather resistant plated perforated grille with powder coating for outdoor use
• High excursion 5" low frequency driver with high temperature voice coil
• 1" ferrofluid cooled neodymium high frequency driver
• Multiple transformer taps for 70 V and 100 V line systems or 16 Ohm direct input
• Proprietary elliptical waveguide provides wide 120º H x 100º V dispersion

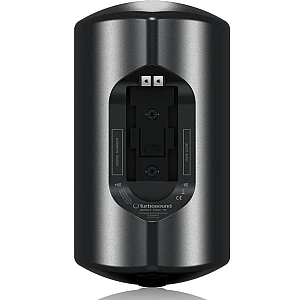

• Wall-mount bracket with integral loudspeaker connections included
• Architecturally styled glass filled impact resistant enclosure
• Semi matte black finish fits unobtrusively in any environment
• 2 x M6 rigging points compatible with TURBOSOUND and OmniMount* brackets
• 3/8" mic stand fitting for spot monitor applications

Specifications

• Frequency Response: 74Hz - 20kHz, ±3dB
  • 43Hz - 20kHz, ±10dB
• Dispersion: 100° x 70° (H x V)
• Power Handling: 60W RMS / 240W Peak
• Impedance: 16 Ohms
• Low-Frequency Driver: 1 x 5''
• High-Frequency Driver: 1 x 1'' Soft Dome
• Sensitivity: 88dB (1W @ 1m)
• Maximum SPL: 108dB Continuous (114dB Maximum)
• Connectors: Screw Terminal Block
• Flying Hardware: 2 x M6 Points
• Enclosure: Gas Injected, Glass-Filled Moulded ABS
• Grille: Powder Coated Perforated Zinc Plated Steel
• Dimensions: 300mm x 164mm x 154mm / 11.8'' x 6.5'' x 6.2'' (H x W x D)
• Weight: 3.5kg / 7.7lbs
