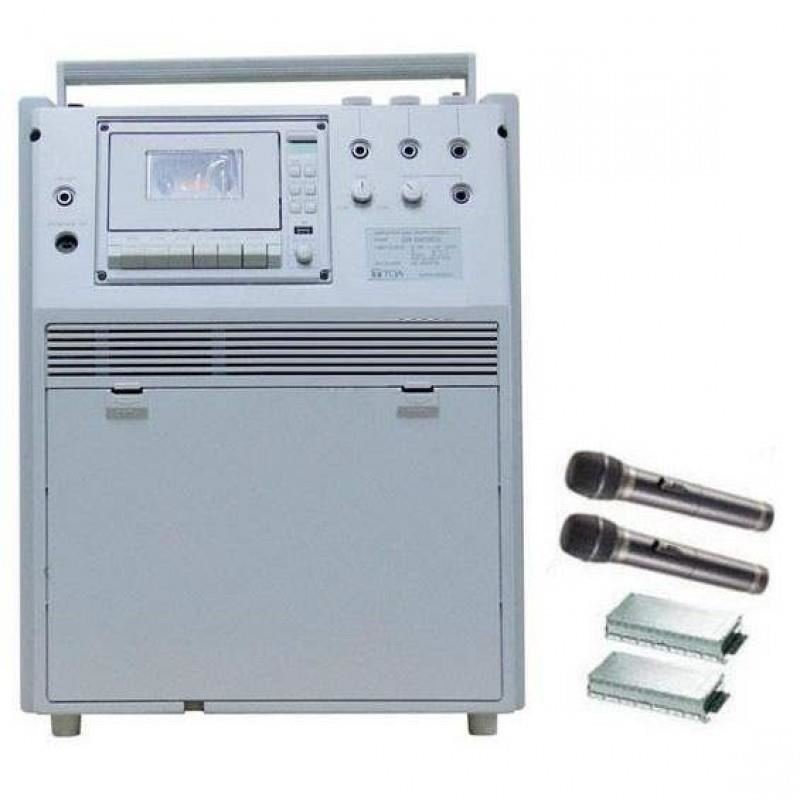

Portable Amplifier TOA ZWG810CU

Spesifikasi Portable Amplifier TOA ZWG810CU

Portable Amplifier TOA ZWG810CU

• Power Requirement : 220V AC (198-242), 50/60Hz. Dry cells 8pcs (R20P or D size) external DC 10-16V
• Power Consumption : AC : 44W; DC : 1.200mA
• Rated Output : AC : 15W (Max. 20W), DC : 6W
• Frequency Response : ± 3dB (70-10.000Hz)
• Distortion : Under 3% at rated output
• Input : MIC 1,2,3 (cable mic) -54dBv 600Ω; AUX : -20dBv 600Ω
• Output : External Speaker : 8-16Ω/over 20W of rated output “Internal speaker and External speaker” or “External Speaker only” (by selectable switch)
• S/N Ratio : more than 70dB at rated output
• Antenna : Rod Antenna
• Speaker Internal : 20cm mechanical 2-way speaker
• Cassete deck :
  • Reproduction system : non reverse (one way)
  • Usable Tape : Normal tape
  • Tape speed : 4.8cm/sec
  • Wow and flutter : 0.3% Wrms
  • Fast Forward.Rewind time : Approx. 100 second (C-60 type)
  • Recording Method : AC bias
• MP3 Unit : USB type : 1.1 and 2.0; Capacity : Max. 32GB (FAT 16 & FAT 32) ; Format file : MP3 and WMA
• Ambient Temperature : AC : -10° ~ + 40° C ; DC : 0° ~ + 40° C
• Finish : ABS resin, light grey
• Dimension : 366(W) x 456(H) x 197(D) mm
• Weight : approx. 8.3 kg (battery included)
• Accessories :
  • External speaker plug : 1x
  • Fuse 500mA : 1x
  • External DC plug : 1x
  • Battery AAA : 2x
  • Single Pole Plug : 1x
  • Dust Cover : 1x
  • Mic hand held/Tuner : ZM-810 / ZTU-810

ZTU-G810
