Spesifikasi TC Electronic Blood Moon Phaser Effect Pedal

TC Electronic Blood Moon Phaser Effect Pedal

The Blood Moon Phaser is the perfect solution for any ambient guitarist seeking a full host of Phaser effects. This affordable unit offers a classic 4-stage filter design to achieve that iconic 70s sound. Its simple layout features three controls including Rate, Depth and Feedback, along with a standard footswitch for operation. The Rate control option allows the user to control the speed of the modulation, the Depth controls how pronounced the effect is, whilst the Feedback lets you feed some of the filter's output back into the circuit. This easy-to-use Phaser also uses true bypass, which minimises the loss of tone and offers more control of the pedal. The Blood Moon Phaser also runs on a 9V battery or with a 9V power supply (sold separately).

Compact & Gig Worthy Design

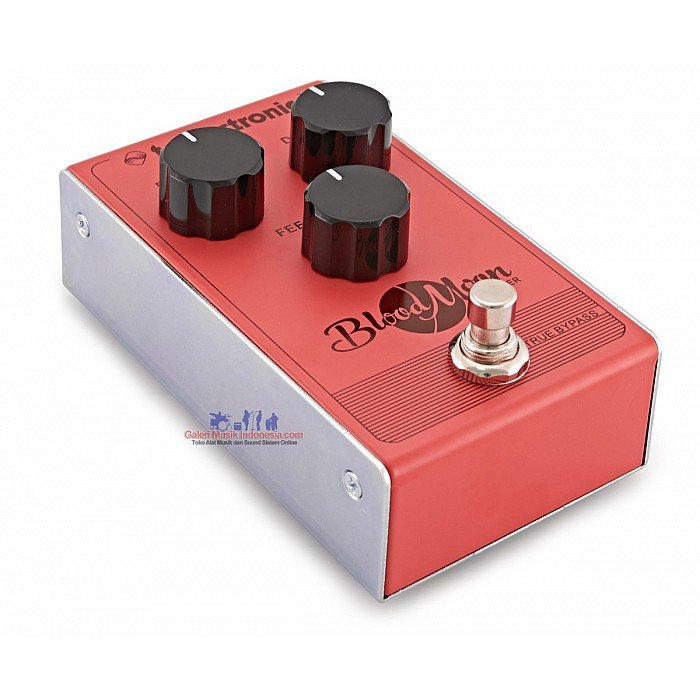

Along with its incredible tonal capabilities, the Blood Moon Phaser Pedal features a durable metal chassis designed to protect the internal components against moisture and the day-to-day life of a gigging musician. The pedal is also equipped with top mounted jack ports, maximising pedalboard space and allowing players to fit more pedals on their rig. Each control knob is designed with rugged edges, allowing players to control the settings with their foot during performances, while the intuitive control layout offers a user-friendly operation perfect for beginners.

Features

• Vintage-style phaser pedal for electric guitar
• Classic four-stage filter design
• Easy-to-use interface makes it ideal for beginners

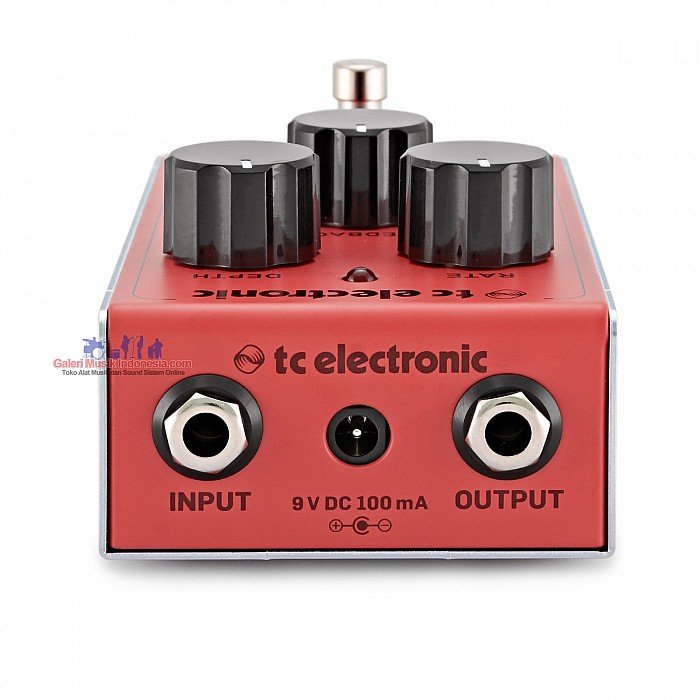

• Top-mounted jacks maximises space on pedalboards
• True bypass offers ultimate signal integrity
• Compact, roadworthy ’’built-like-a-tank’’ metal chassis
• Runs on 9 V battery or PSU-SB DC power supply (not included)

Specifications

General

• Controls: Rate, Depth, Feedback
• Input: 1/4" TS, Unbalanced
• Input Impedance: More than 350 K Ohms
• Output: 1/4" TS, Unbalanced
• Output Impedance: 1 K Ohm
• Power Input: Standard 9 V DC, centre negative, more than 100 mA
• Battery Option: Internal 9 V battery connector
• Current Consumption: Less than 25 mA

Dimensions

• Height: 58 mm
• Width: 74 mm
• Depth: 132 mm
• Weight: 0.5kg
