• When two audio channels are not enough

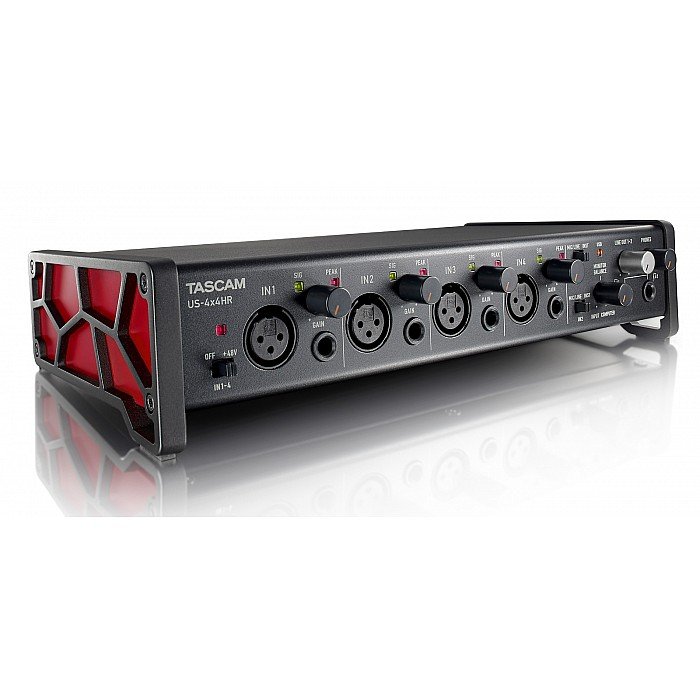

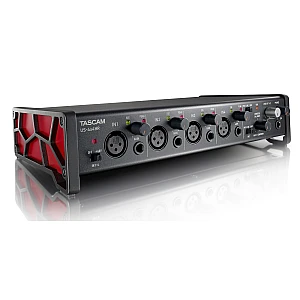

The four-channel US-4x4HR is a member of the Tascam US-HR series of high-resolution USB audio interfaces and an enhanced version of the popular Tascam US-4x4. It provides four mic/line inputs, two of which can alternatively be used for direct input of a guitar or bass, four balanced line outputs, two headphones connectors, and MIDI I/O to your Windows or Mac computer or your iPhone or iPad*. This interface is ideal for multitrack recording of two instruments and two vocalists, for instance, or multi-media production with high demands on simple operation and studio-quality sound. The included loopback function and support for Open Broadcaster Software (OBS Studio), however, makes it also an excellent choice for two-channel podcast creation and live streaming.

• Lower noise and distortion – better sound than ever

The versatile US-4x4HR incorporates a wealth of features, including high audio resolution up to 24-bit/192 kHz, ultra-low latency with a Windows buffer size starting at four samples, Ultra-HDDA mic preamplifiers with 48-volt phantom power for superior sound quality with ultra-low noise, a robust USB Type C connector, and a rich assortment of included software to start producing stunning audio right away.

• Usability is key

All US-HR models offer a unique dye-cast aluminum honeycomb structure on the side panels with a slight upward tilt. This design not only results in a sleek, eye-catching design, it also provides just the right amount of weight so the interface won’t move when cables are connected or disconnected. Equally important, the upward tilt offers the ergonomic benefit of being angled in such a way as to make the interface easy to work with.

With four microphone preamps for multi-mic setups, four configurable balanced outputs, superb sound quality and easy operation, the US-4x4HR is the ideal choice for the demanding musician, producer or home-recordist requiring more than two audio channels.

_{* An optional battery pack or AC adapter is required when used with an iPhone or iPad.}

Hardware features

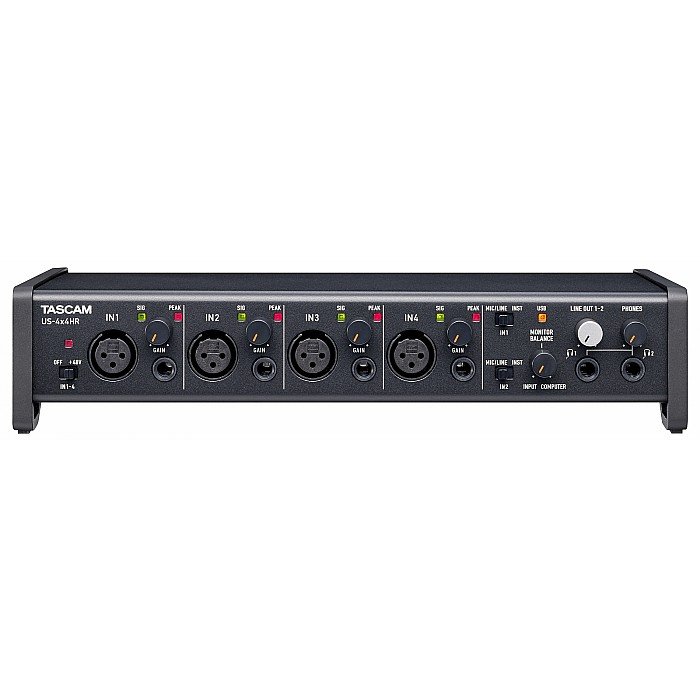

• Four analogue mic/line inputs on individual XLR and TRS balanced connectors
• High-quality Ultra-HDDA (High Definition Discrete Architecture) microphone pre-amps with ultra-low noise (EIN: –128 dBu)
• Wide input gain range of 56 dB, ideal for dynamic microphones
• Switchable 48-Volt phantom power on XLR inputs
• TRS inputs 1/2 can each be switched to instrument-level for direct recording of guitar or bass

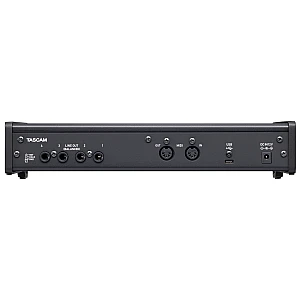

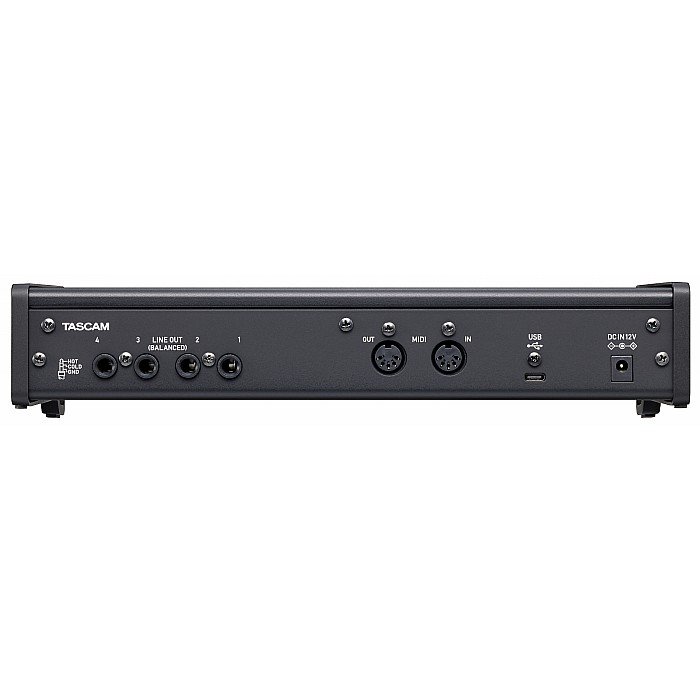

• Four line outputs (balanced TRS)
• Direct monitor option for low-latency monitoring
• Monitor mix control for adjusting the level balance between signals from external devices and signals from the computer
• Two headphones outputs delivering 45 mW per channel
• Independent level controls for line and phones outputs
• MIDI input/output
•

Other Information

• Item Weight 1 pounds
• Product Dimensions 8.46 x 16.73 x 4.06 inches
