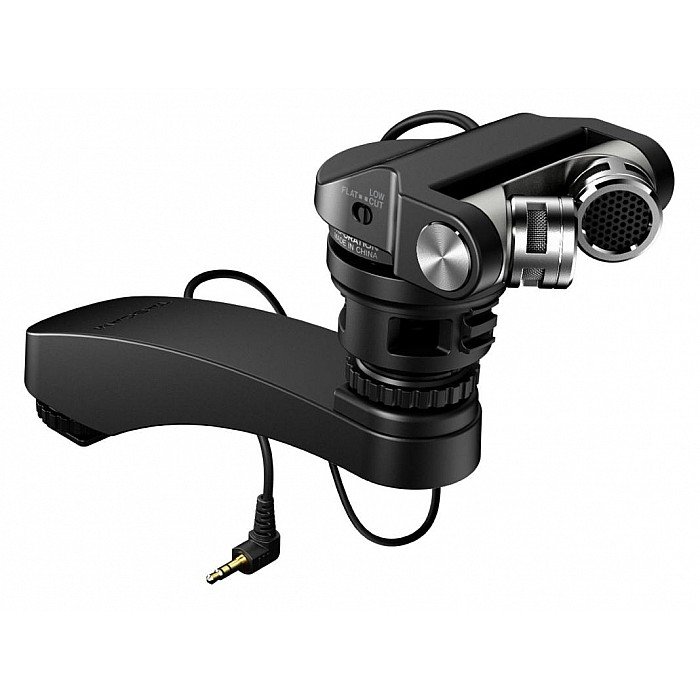

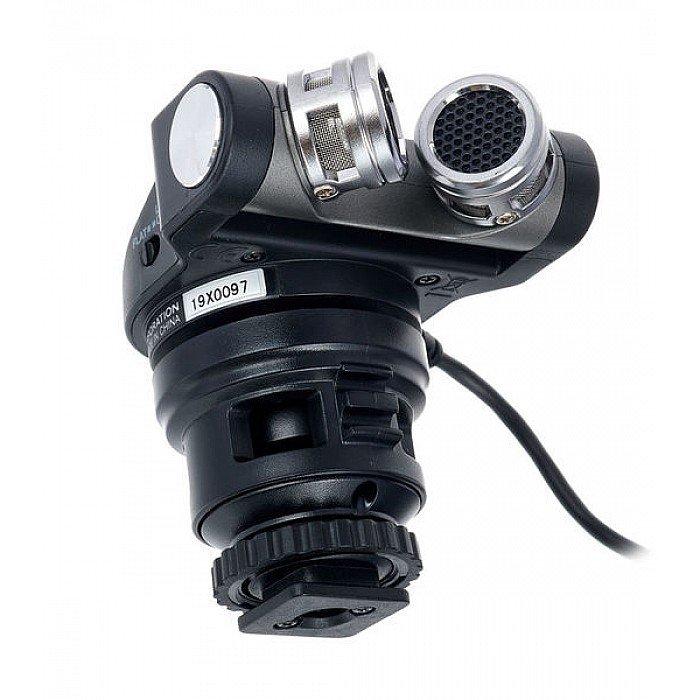

Tascam TM-2X Stereo Microphone

Spesifikasi Tascam TM-2X Stereo Microphone

Tascam TM-2X Stereo Microphone

TM-2X
Record high-quality audio for high-definition video straight to your camera

The TM-2X is an X-Y stereo condenser microphone that can record high quality sounds appropriate for high-quality video filmed with a DSLR (digital single-lens reflex) cameras, something that has been getting a lot of attention within the past few years. The TM-2X has been developed by thoroughly investing know-how on linear PCM recorders and professional acoustic equipment that TASCAM has accumulated in order to create an accessory in which a DSLR user can easily enjoy a high-sound quality filming.

X-Y stereo microphone method, directional and optimal for recording from a specific source

The dual unidirectional condenser microphone unit that focus records sounds in front was configured using an X-Y pattern. The X-Y pattern is a type of a stereo recording method and records sounds while reducing the hollowing out effect (when the central sound becomes weak). As such, this is an effective recording method when filming a specific target. A vari-angle microphone structure that allows 180-degree rotation was adopted, allowing for mic placement in accordance to the target.

The audio circuit design, including the microphone, went through several listening tests in order to select the parts that are best for achieving great sound quality. The TM-2X can handle sound pressure up to 120dB SPL, and as such, can record sound without distorting even when filming a target with a high volume.

Features

• For shooting with DSLR or DSLM camera
• Hot shoe mount
• 180 Degrees swivel
• Frequency range: 50 Hz - 20 kHz
• Tripod thread 1/4"
• XY Arrangement
• SPL to 125 dB SPL
• Switchable input sensitivity
• Low-frequency filter
• Power supply: Power supply for miniature microphones (JEITA CP-1203A)
• Port: 3.5 mm stereo plug
• Dimensions: 57 x 59 x 69 mm (without cable / accessories)
• Weight: 75 g (without arm)
• Incl. Noise reduction arm and fell windshield

Specs

1. Maximum input level 120dB SPL (at 1kHz, SENS: H, LCF=Flat, RL: 2.2kΩ, Vcc: 2.5V)
2. Output impedance 1.6kΩ (RL: 2.2kΩ, Vcc: 2.5V) S/N ratio 74dB (at 1kHz, 1Pa, A weighted)
