Spesifikasi Tascam MZ-123BT 3-channel Rackmount Multizone Mixer

Tascam MZ-123BT 3-channel Rackmount Multizone Mixer

A compact analogue mixer for background music and announcements in up to three zones
The Tascam MZ-123BT is a compact 1U multi-channel, multi-zone audio mixer for professional installation. It provides versatile routing, mixing and distribution of up to three channels of music and announcements for a wide range of commercial applications, including retail, restaurants, bars, cafes, hotels, or any environment that requires independent audio routing and announcement capabilities. Featuring a simple, intuitive layout for ease of operation, the Bluetooth-enabled MZ-123BT comes equipped with two versatile mic inputs and automatic attenuation of background music for superior intelligibility during announcements or paging.

Audio Control and Routing for Separate Zones

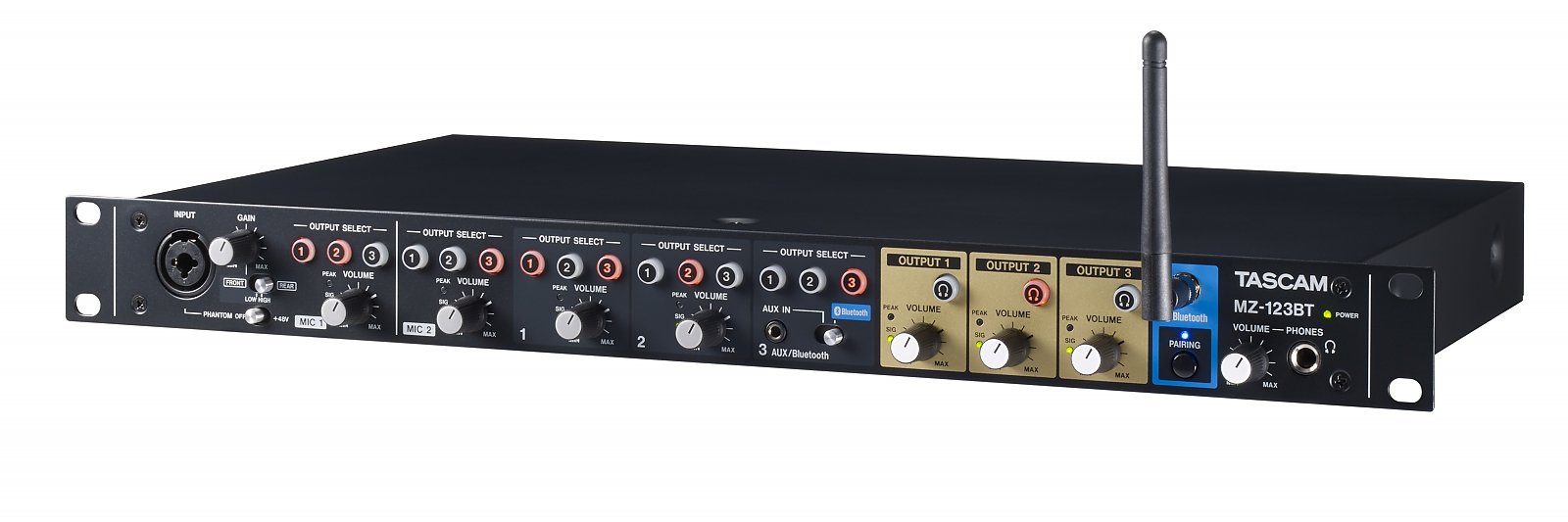

Three discrete zone outputs on the Tascam MZ-123BT
Three discrete zone outputs with volume control allow routing of background music to desired areas or rooms in a restaurant, hotel, retail store or other commercial environment.

Three Outputs with Euroblock Connectors

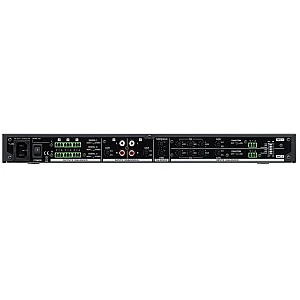

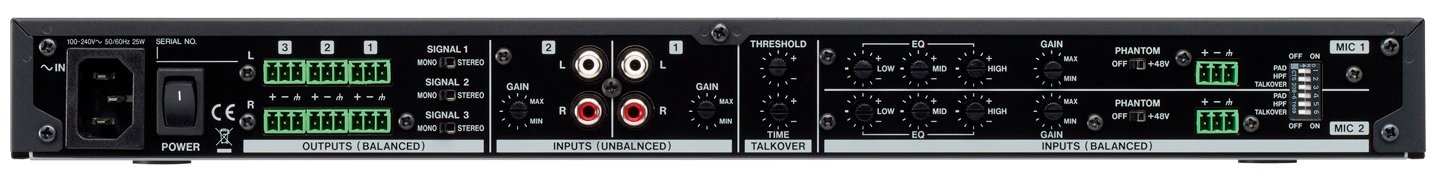

Balanced Euroblock connectors on the rear side of the Tascam MZ-123BT
Three pairs of balanced stereo outputs featuring Euroblock connectors for fixed installations are accessible from the back panel. Each output can be set to output audio in mono or stereo.

Three Stereo Input Channels for Playback Sources

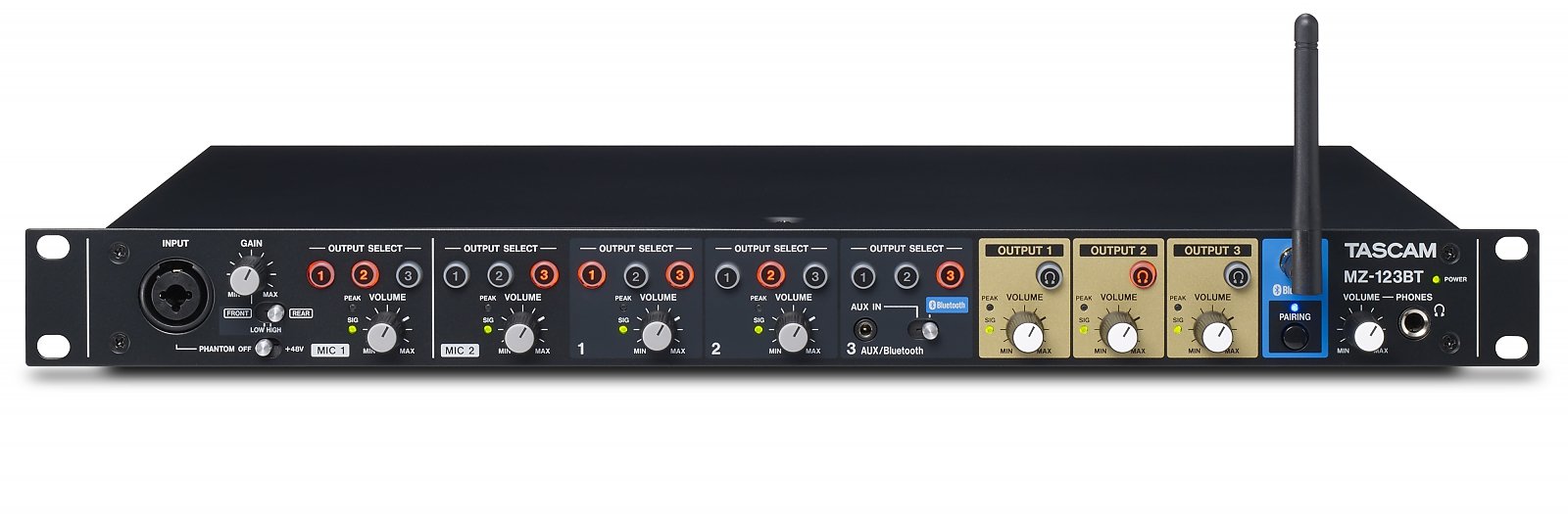

Three input channels with volume controls and zone routing selectors on the Tascam MZ-123BT
Two stereo line inputs (RCA, unbalanced) allow connection of AV equipment such as Tascam CD / Solid State Players or similar playback devices. Channel 3 has an Aux/Bluetooth input that allows an additional audio source to be connected via Bluetooth or 3.5-mm mini plug. Each input features a volume control knob as well as three zone routing buttons for audio distribution to desired areas or rooms.

Features

• Slim rackmount mixer that can flexibly assign background music and mic announcements to three different output zones
• Built-in Bluetooth receiver for wireless audio playback from smartphones or tablets
• Bluetooth antenna installed on the front panel ensures a stable wireless connection within the specified range
• Three stereo line inputs
• Two RCA unbalanced line inputs on rear panel
• Bluetooth/Aux input on front panel
• Gain controls on rear panel
• Two mic inputs for announcements or moderation
• Connection via Euroblock connectors on the rear panel
• Mic 1 can also be connected via the front-panel XLR/TRS combo connector (input level switchable HIGH/LOW)
• PAD, high-pass filter and 48-volt phantom power on each mic input (switchable on/off on the rear panel)
• Rear-panel controls for gain and three-band EQ
• Level controls and zone selection buttons on each mic and stereo line input
• Signal and peak indicators on each mic and stereo line input
• Three zone outputs with level controls, signal and peak indicators and monitor selection buttons
• Headphones output with level control for monitoring the zone outputs
• Compact 1U rackmount size
•

• Type: Multi-zone Mixer
• Channels: 3 x line, 2 x mic ; 3 x zones
• Inputs - Mic Preamps: 1 x XLR-1/4" combo (mic), 2 x Euroblock
• Phantom Power: 3 channels
• Inputs - Line: 2 x Dual RCA Stereo, 1 x 1/8" (aux in)
• Outputs - Main: 6 x Euroblock (3 x stereo)
• Headphones: 1 x 1/4"
• Bluetooth: v4.2
• Talkback: Talkover Threshold control
• EQ Bands: 3-band EQ
• Rackmountable: Yes
• Power Source: Standard IEC AC cable
• Height: 1.85"
• Width: 19"
• Depth: 10.8"
• Weight: 6.6 lbs.
