Tascam DR 701D 4 Channel / 6 Track Multitrack Field Recorder

Spesifikasi Tascam DR 701D 4 Channel / 6 Track Multitrack Field Recorder

Tascam DR 701D 4 Channel / 6 Track Multitrack Field Recorder

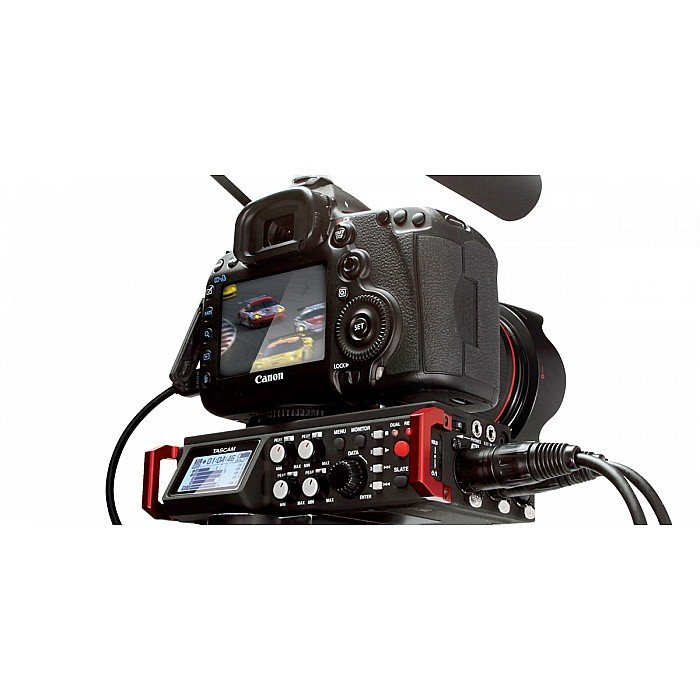

For filmmaking, television, audio-for-VR, and web broadcast applications where you want to record direct sound, ambience, and your real-time mix, the Tascam DR-701D multitrack field recorder is an ideal companion for your DSLR. Capture up to four tracks of high-resolution audio from external sources and the onboard omnidirectional microphones plus a stereo mix, route audio to and from your camera, and conveniently monitor through headphones. With versatile mounting possibilities, timecode support, and tight camera sync via HDMI I/O, the DR-701D integrates seamlessly into your video production setup.

• Simultaneous 6-Track Recording

Using the built-in mixer, four tracks and their stereo mix can be simultaneously recorded at up to 24-bit / 96 kHz resolution. Alternatively, record two channels at 192 kHz for truly detailed stereo capture.

• Onboard Omnidirectional Microphones

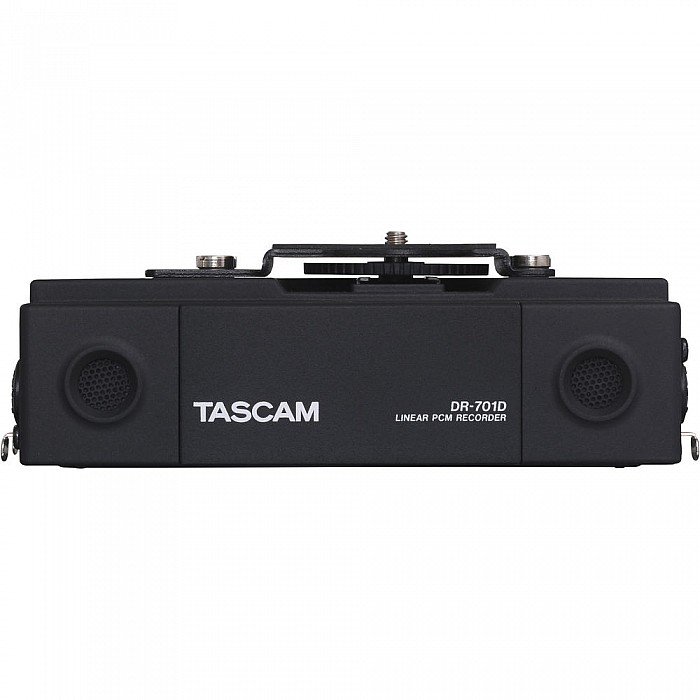

The DR-701D's two onboard condenser microphones empower you to capture stereo sound without external mics. The omnidirectional mics respond to sound from all directions and are permanently spaced apart in an A/B configuration, yielding a broad, sphere-like pickup pattern. Use them in combination with a shotgun, handheld, or lav mic to record direct sound and ambience at the same time.

• Four XLR-1/4" Mic/Line Inputs with Independent Phantom Power

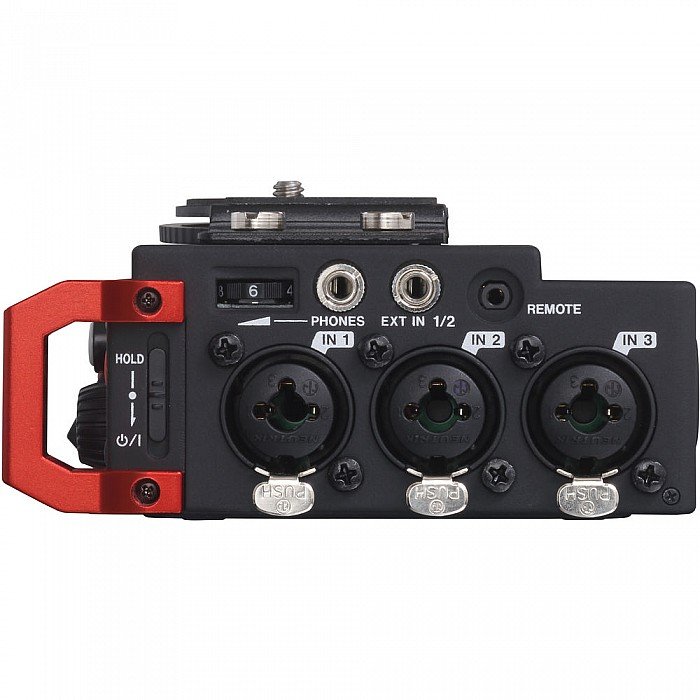

Four locking XLR-1/4" TRS combo jacks support mic level and +4 dBu line level, allowing you to record external microphones or balanced outputs from a professional multichannel mixer. With individually switchable phantom power (24V or 48V) and up to 64 dB of gain, the low-noise HDDA (High Definition Discrete Architecture) mic preamps can serve a variety of microphones such as dynamic, ribbon, or condenser types.

• 3.5mm Mic/Line Input with Plug-In Power

For maximum intelligibility and optimal vocal tone, recordists often prefer to use lavalier microphones that can be attached to their subject's clothing. The DR-701D's 3.5mm mini-jack input is designed for precisely that situation; clip a lav mic (available separately) to the talent, then plug it into the 3.5mm input on the DR-701D. Knowing that many lav mics require a small amount of voltage called plug-in power, Tascam offers a selectable setting to supply plug-in power to the 3.5mm input. If you need to record the output of a wireless microphone receiver or an audio mixer, the 3.5mm input can accommodate it because it supports line-level signal and handles a maximum input level of +10 dBV.

Features

• Angled 128 x 64 pixel graphic LCD with backlight for easy viewing
• Simple, efficient file transfer via USB 2.0 connection to a computer
• Asahi Kasei A/D converters and low-noise Texas Instruments OPA1652 opamps
• High-precision TCXO (temperature-compensated crystal oscillator) and PLL (phase-locked loop) with a discrete filter reduce jitter and clock errors
• Adjustable delay function eliminates time lags caused by differences in the distances of two sets of inputs from the sound source
• Hold switch prevents accidental operation
• MS decoding function allows proper stereo monitoring of a mid-side mic configuration
• Cascade multiple DR-701D recorders via HDMI for unified record start/stop control from one master unit
• Automatically creates a new file when the maximum file size is reached
• Resume function retains the last stop point even when the DR-701D is powered off/on
• Up to 99 marks (locate points) per track
• Track incrementing function allows a recording to be split by creating a new file when desired
• File name format can be set to use a user-defined word or the date
• The first six characters of the file name for recording can be set freely

• ​Specs

1. SD (64 MB to 2 GB)
2. SDHC (4 GB to 32 GB)
3. SDXC (48 GB to 128 GB)
