Spesifikasi SWR SM900 Bass Amp

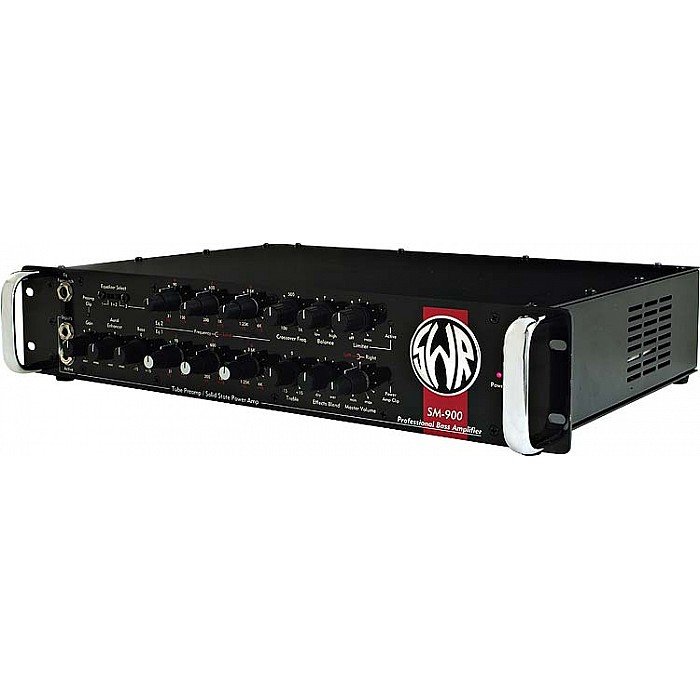

SWR SM900 Bass Amp

Features

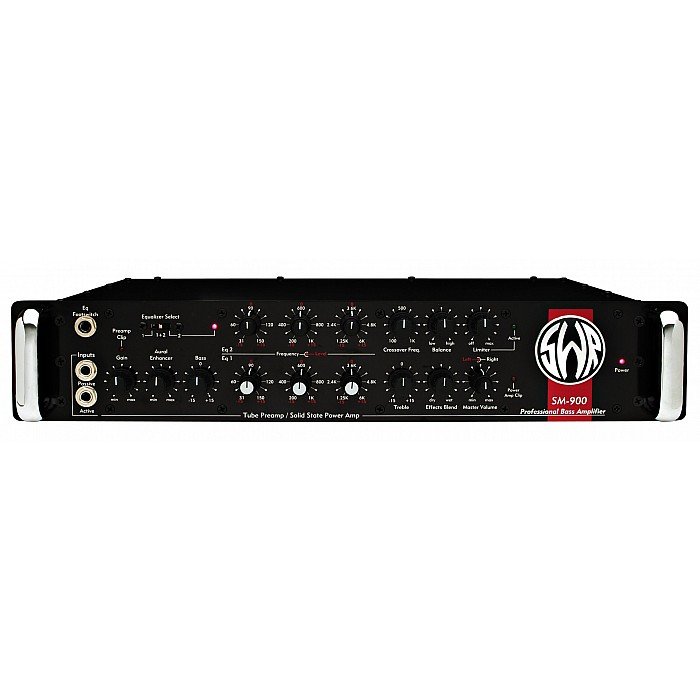

• FRONT PANEL:
• All tube preamp gain stages
• Dual independent input jacks compatible for both active and passive instruments
• Gain control with LED peak clipping indicator
• Limiter with variable threshold control
• Exclusive Aural Enhancer circuitry
• Master volume control w/clip LED indicator
• Active bass and treble controls
• 2 independent switchable
• 3-band semi-parametric EQs
• EQ footswitch
• Effects blend control
• Tuner send
• Electronic crossover
• Rackmountable
• Bi Amp Crossover Point Control: 100Hz to 1000Hz
• Crossover Slope: 12 dB per octave
• Rack Handles
• REAR PANEL:
• Stereo and Mono Effects Loop
• Balanced XLR Output with select switch for Line or Direct Mode
• Ground lift & pad control
• High and Low Crossover Outputs
• Power Amp Assign Switch selects Bridge or Stereo Mode
• SPEAKER OUTPUTS:
• 2 - 1/4" jacks each for Left and Right Stereo Out
• One Speakon jack for Left and Right Side Output
• One Speakon Output Jack for Mono Operation
• Speaker fuses (x2): 3AG, 10 Amp, Fast Blo
• Line Fuse: 3AG, 8 Amp, Slow Blo
• On/Off Switch
• INTERNAL:
• (1) 12AX7 Preamp Tube
• Cooling fan
• FREQUENCY RESPONSE: (Power amplifier): -3dB @ 20Hz and 40KHz
• SENSITIVITY:
• Full output, 8 ohm load, 100Hz
• Passive Input Jack: 50 millivolts
• Active Input Jack: 200 millivolts
• Power Amplifiers (Effects Return Jack "in"):1.6 volts
• DiISTORTION:
• Power Amplifiers (Effects Return Jack "in"): 0.03% THD
• I.M. Distortion: 0.06%
• System Distortion
• (Gain and Master Volume full, Enhancer at minimum
• and Tone controls set flat): 0.4% THD
• SIGNAL TO NOISE RATIO: -75dB (<8 millivolts typical)
• EQUIVALENT INPUT NOISE: 8.9 microvolts
• INPUT IMPEDANCE:
• Passive/Active Input: 800kOhms
• Active Input: 60kOhms
• Effects Return: 27kOhms
• OUTPUT IMPEDANCE:
• Effects Send: 100 Ohms
• Tuner Send: 100 Ohms
• XLR:1.5kOhms
• Crossover High and Low Outs: 100 Ohms
• SUGGESTED SPEAKER ENCLOSURES:
• Megoliath
• Goliath Senior
• Big Bertha
• Goliath III
• SUGGESTED SPEAKER COMBINATIONS:
• (2) Goliath IIIs
• (2) Son Of Berthas
• (1) Goliath III & (1) Son Of Bertha
• (1) Goliath III & (1) Big Ben

SM-900 Bass Amp Specifications:

• DIMENSIONS: 19" W x 3-9/20" H x 13-3/4" D
• WEIGHT: 26 lbs.
• POWER OUTPUT:
• Bridge/Mono Mode 900 Watts @ 4 Ohms, 650 Watts @ 8 Ohms, 440 Watts @ 16 Ohms (minimum load = 4 Ohms)
• Stereo Mode (per side): 400 watts @ 4 Ohms, 240 watts @ 8 Ohms, 144 watts @ 16 Ohms (minimum load = 2 Ohms)
•
• DISTORTION:
• Power Amplifiers (Effects Return Jack "in"): 0.03% THD
• I.M. Distortion: 0.06%
• System Distortion (Gain and Master Volume full, Enhancer at minimum
• and Tone controls set flat): 0.4% THD
• SIGNAL TO NOISE RATIO: -75dB (<8 millivolts typical)
• EQUIVALENT INPUT NOISE: 8.9 microvolts
• INPUT IMPEDANCE:
• Passive/Active Input: 800kOhms
• Active Input: 60kOhms
• Effects Return: 27K Ohms
•
• OUTPUT IMPEDANCE
• Effects Send: 100 Ohms
• Tuner Send: 100 Ohms
• XLR:1.5kOhms
• Crossover High and Low Outs: 100 Ohms
• SUGGESTED SPEAKER ENCLOSURES
• Megoliath
• Goliath Senior
• Big Bertha
• Goliath III
• SUGGESTED SPEAKER COMBINATIONS
• (2) Goliath IIIs
• (2) Son Of Berthas
• (1) Goliath III & (1) Son Of Bertha
• (1) Goliath III & (1) Big Ben
