Turbosound TPX152 2-Way 15" Performer Series Full Range Loudspeaker

Spesifikasi Turbosound TPX152 2-Way 15" Performer Series Full Range Loudspeaker

Turbosound TPX152 2-Way 15" Performer Series Full Range Loudspeaker

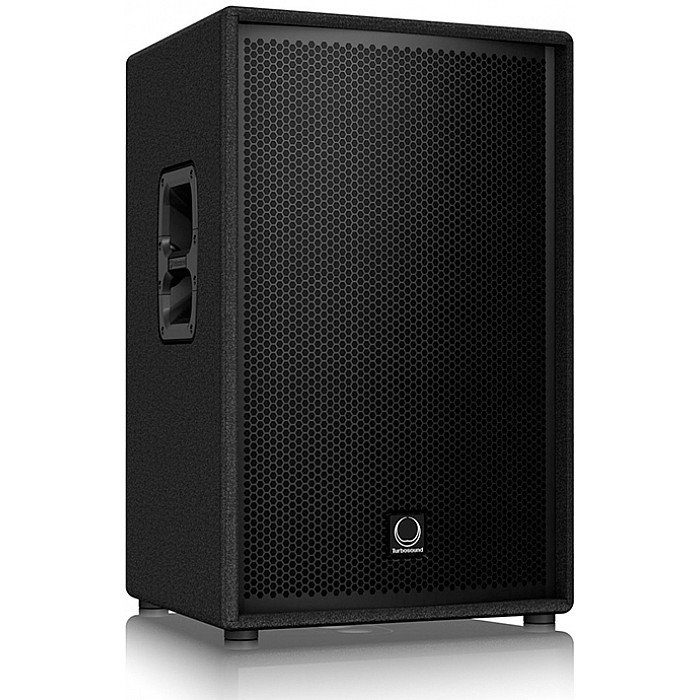

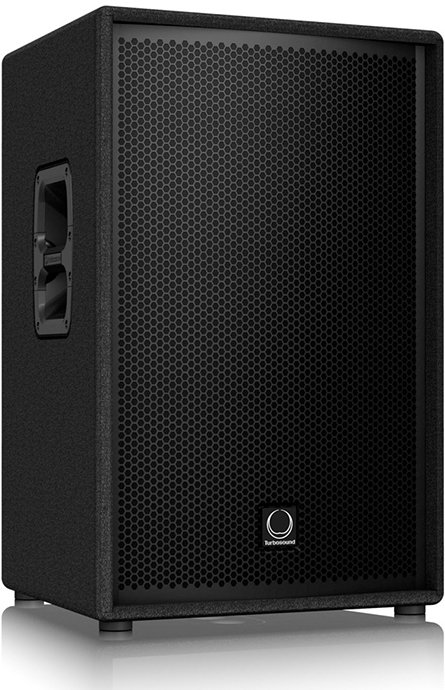

The two-way full range TPX152 is a passive 1000W loudspeaker system that is ideally suited for a wide range of portable speech and music sound reinforcement, including FOH, side and drum fill applications. Engineered as a standalone 2-way system not requiring any external equalization or filtering, the TPX152 achieves optimal performance when paired with a subwoofer and TURBOSOUND loudspeaker management systems.

The TPX152 loudspeaker features a high excursion 15" low frequency driver with a low mass voice coil for improved transient response, and an aluminum dome 1" compression driver mounted on a 70° horizontal by 50° vertical low distortion waveguide. All drivers are matched with an internal passive crossover network in a reflex-loaded enclosure.

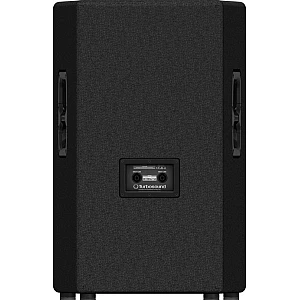

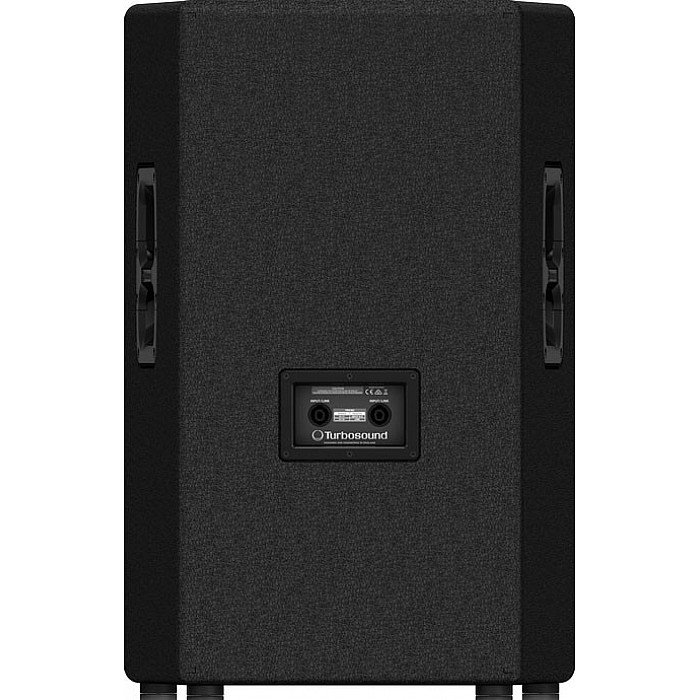

Covered in tough black carpet, the cabinet features 18 mm (¾ ") wood construction and includes a rugged powder coated perforated steel mesh grille backed with reticulated foam, a dual-angle pole mount socket for use with 35 mm poles/speaker stands to optimize audience coverage and durable handles for easy transport. A rear panel connector plate carries Neutrik speakON* NL4 connectors for input and link connections to additional enclosures.

Speaker configuration

• Active/passive: Passive
• Type: Full-range
• LF driver: 15"
• MF driver: Not applicable
• HF driver: 1"

Power capacity

• 8 Ohms program/peak: 250W/1000W
• 4 Ohms program/peak:

Audio

• Frequency response: 50Hz - 20kHz +3dB
• Coverage pattern: Not applicable
• Max SPL: 127 dB peak

Inputs

• TRS: Not applicable
• TS: Not applicable
• RCA: Not applicable
• SPEAKON: 1

Output/thru

• TRS: Not applicable
• TS: Not applicable
• RCA: Not applicable
• SPEAKON: 1

Enclosure

• Cabinet material: 18 mm particle board
• Width: 18.2"
• Height: 27"
• Depth: 17.3"
• Weight: 54.7 lb.
