Bose FreeSpace 360P II Green 70/100V Speaker /unit

Spesifikasi Bose FreeSpace 360P II Green 70/100V Speaker /unit

Bose FreeSpace 360P II Green 70/100V Speaker /unit

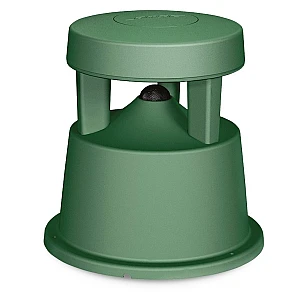

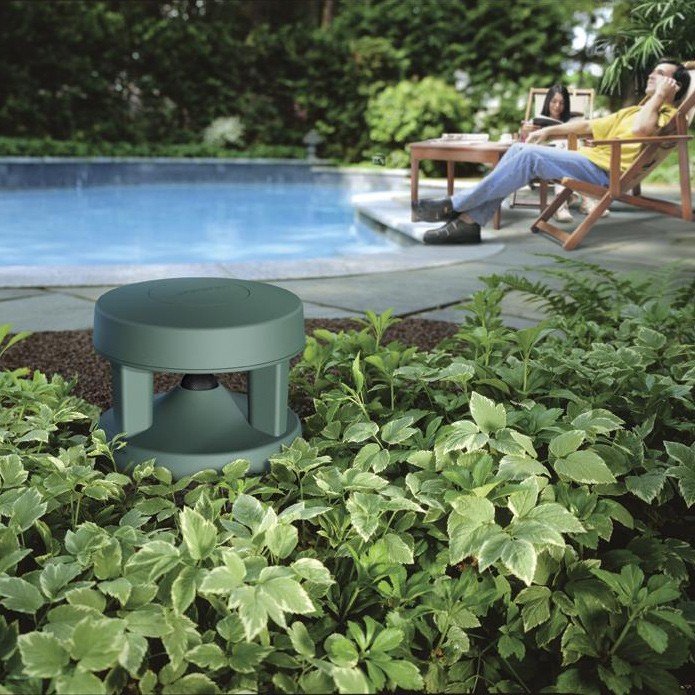

The Bose FreeSpace 360P Series II loudspeaker is a full-range environmental loudspeaker designed to blend with landscaping for in-ground or above-ground applications, such as shopping malls, outdoor restaurants, resorts and theme parks. Features 360° horizontal coverage and frequency range down to 60 Hz.

Key Features

• Full-range environmental loudspeaker with one downward firing 4.5″ (114 mm) advance composite environmental full-range driver for in-ground or above-ground mounting

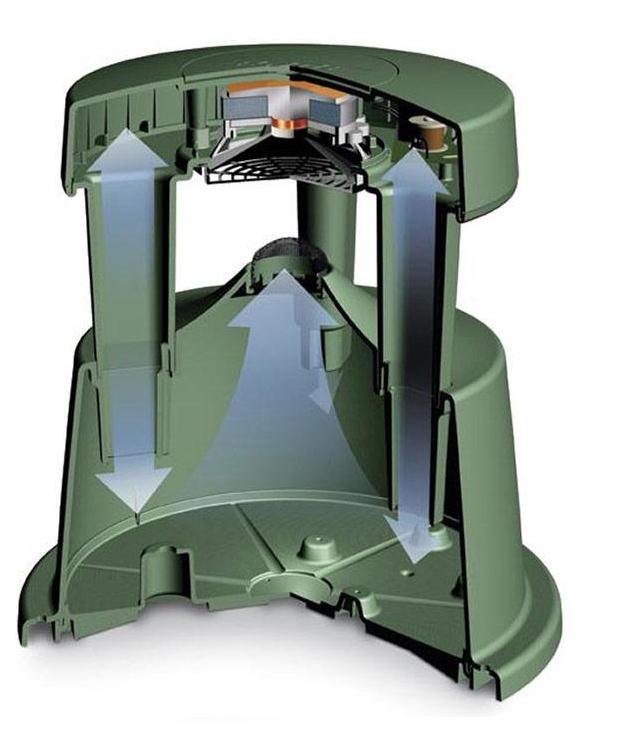

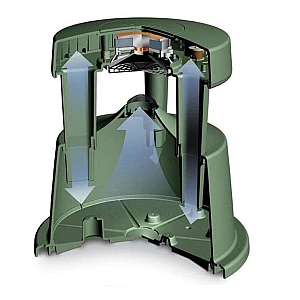

• Domed port grille reflects sound into the listening area for clear, consistent performance
• Cabinet shape acts as acoustic diffuser directing mid- and high-frequency energy out towards listeners. Base of loudspeaker acts as a tuned, multi-chambered ported enclosure
• Multi-tap line transformer provides easy-to-change tap settings
• Tamper-resistant design
• Internal speaker protection circuit safeguards drivers

Physical

• Enclosure
  Glass-reinforced polypropylene, textured
• Environmental
  Outdoor per IEC 529 IP35
• Connectors
  External multi-wire cable with wire nuts included
• Suspension / Mounting
  Three (3) #10 (M4) holes in base. Three #10 M4 screws required
• Dimensions
  Diameter: 14.5″ (368 mm)
  Height: 14.9″ (379 mm)
• Net Weight
  14.5 lb (6.6 kg)
• Color
  Green
• Package Contents
  1 loudspeaker

Technical Summary

• Frequency Response (+/-3 dB)
  70 Hz – 10 kHz
• Frequency Range (-10 dB)
  60 Hz – 15 kHz
• Nominal Dispersion
  360° H x 50° V
• Long-Term Power Handling
  80 W (320 W peak)
• Sensitivity (SPL / 1 W @ 1 m)
  87 dB SPL
• Maximum SPL @ 1 m
  100 dB SPL (106 dB SPL peak)
• Nominal Impedance
  4 Ω (transformer bypassed)
