Soundcraft Notepad-12FX Mixer with Effects and USB

Spesifikasi Soundcraft Notepad-12FX Mixer with Effects and USB

Soundcraft Notepad-12FX Mixer with Effects and USB

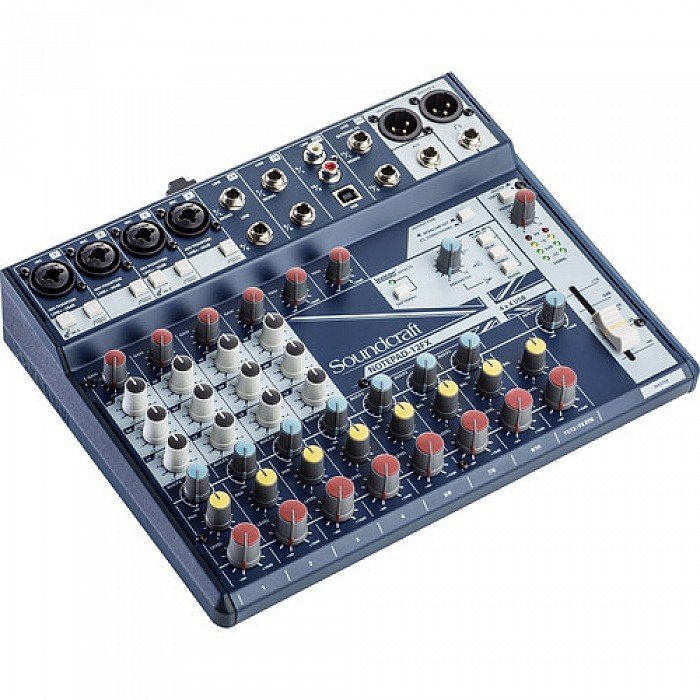

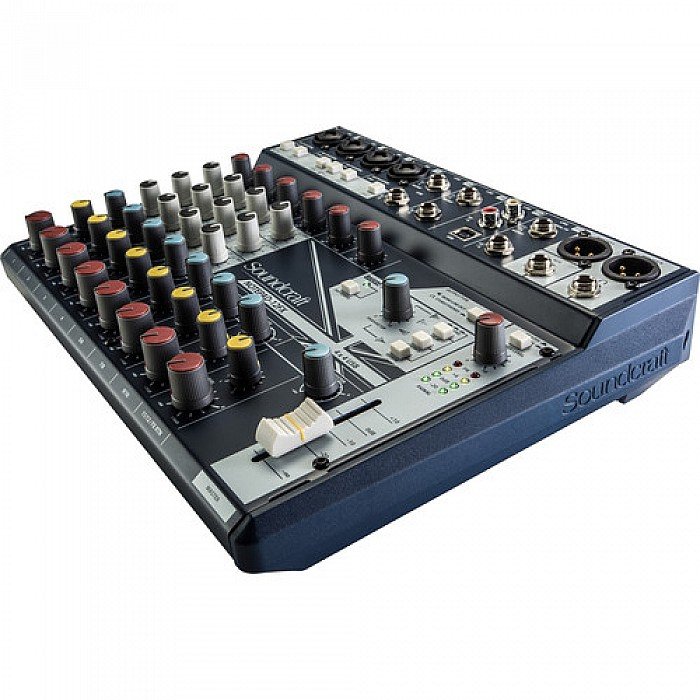

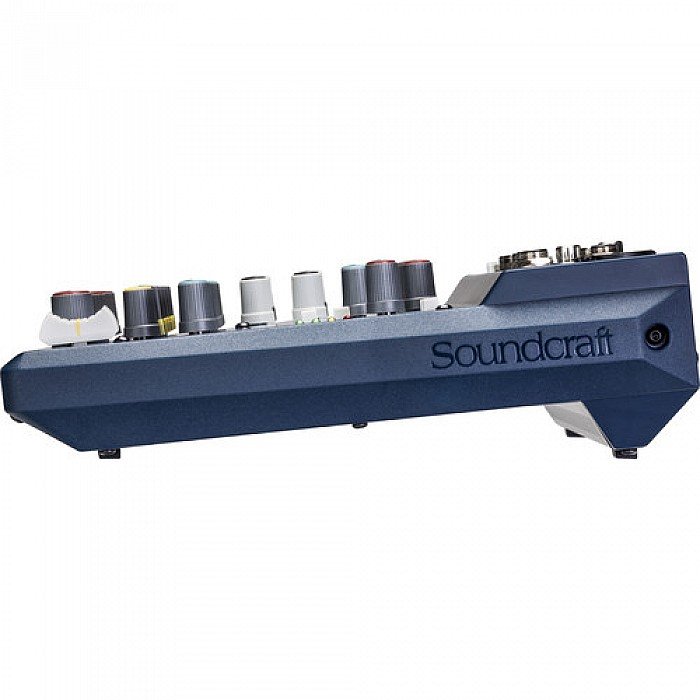

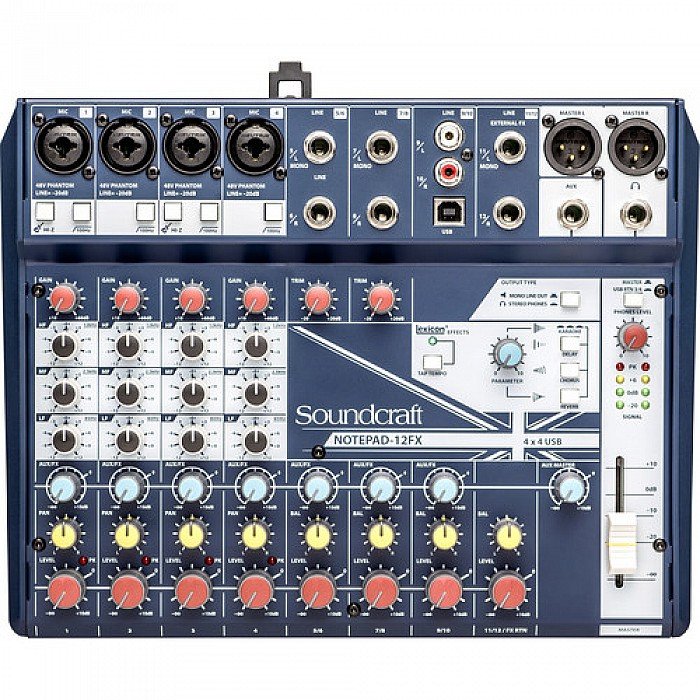

Soundcraft NOTEPAD-12FX Overview

The Notepad-12FX from Soundcraft is a small-format, 12-channel analog mixing console with an integrated 4x4 USB audio interface and built-in Lexicon effects, well suited for music production, podcasts, video production, interviews, rehearsals, writing sessions, and mobile events. The mixer combines professional-grade analog components such as four microphone preamps with combo XLR-1/4" inputs, 3-band EQ, and 100 Hz high-pass filters. Additionally, inputs 1 and 3 offer Hi-Z instrument inputs for incorporating guitars and other high-impedance instruments.

Channels 1-8 include gain/trim controls, and all channels feature an aux send, a pan knob, and level controls. Channels 5/6 and 7/8 feature 1/4" line-level inputs, while channels 9/10 include stereo RCA inputs. Channels 11/12 include 1/4" inputs and double as an external FX return for feeding an outboard effects processor. Outputs include Master L/R on XLR, a 1/4" aux send, and a dedicated 1/4" headphone output with selectable monitoring of the master bus or USB return 3/4. The on-board effects include delay with tap-tempo, reverb, chorus, and karaoke.

The master section offers a master fader and four LED meters with -20, 0, +6 dB, and peak settings. The Notepad-12FX features a durable metal enclosure and ships with an external power supply.

Features:
A compact 12-channel mixer that's great for mixing onstage or recording in your home studio
Includes 4 microphone preamplifiers with phantom power, 100Hz highpass filters, and 3-band EQs
Channels 1 and 3 include a hi-Z instrument-level input for running guitar or bass direct
Line-level inputs on 4 additional channels accommodate keyboards, playback devices, and consumer music gear
Onboard Lexicon digital effects include delay, chorus, and reverb
Tap tempo and a parameter adjustment knob let you dial in each effect to your material
USB provides 4-in/4-out connectivity for recording and audio streaming
Outputs include flexible monitoring options and balanced XLR main outs
