Spesifikasi NEUTRIK NF2C JACK RCA

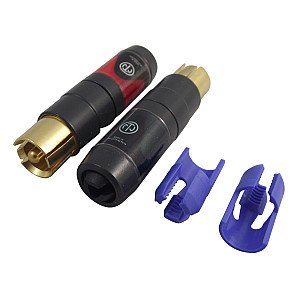

NEUTRIK NF2C JACK RCA

NEUTRIK PROFI Gold Phono RCA PLUGS

NEUTRIK PROFI Gold Phono RCA PLUGS NF2C-B/2 Stereo Pair are high quality, heavy duty, all metal phono plugs, machined from brass, black ceated shell with gold plated contacts. Neutrik Profi RCA connectors are designed to be used with the best audio and studio components for optimum sonic performance without degradation in sound. NEUTRIK PROFI Gold Phono RCA PLUGSNEUTRIK PROFI Gold Phono RCA PLUGS NF2C-B/2 Pair are industry standard connectors, constructed from a hard gold-plated metal connector and accept cable up to 7.3mm diameter; incorporating cable clamping or chuck type strain relief, ensuring a consistently high level of performance and connectivity.

The spring loaded ground contact makes ground before signal and breaks signal before ground: retractable element with separate wedge contacts keeps the shell in the front position when engaged thus providing a direct and strictly coaxial electrical connection from the socket via the shell to the cable shield.

Features

• Makes ground before signal contact and breaks signal before ground
• No more disturbing noise and broken speaker cones
• Precisely machined to our demanding quality standards
• Neutrik unique chuck type strain relief
• Gold plated contacts
• Sleek barrel with soft touch surface and coloured shrink sleeve
• Improved ground solder lug for ease soldering
•

Specification

Electrical:

• Capacitance between contacts ≤ 7 pF
• Contact resistance >10G mΩ
• Dielectric strength1,5 kVdc
• Insulation resistance > 5 GΩ
• Rated current per contact depends on mating connector / A
• Rated voltage < 50 V

Mechanical:

• Cable O.D.3.0 – 7.3 mm
• Lifetime> 2000 mating cycles
• Wire size1,5 mm²
• Wire size16 AWG
• Wiring Solder contacts

Material:

• Contact plating: 5 µm Au over 5 µm Ni
• Contacts: Brass (CuZn39Pb3)
• Insert: PBTP 20 % GR
• Shell: Brass (CuZn39Pb3)
• Strain relief: Polyacetal (POM)

Environmental:

• Flammability UL 94 HB
• Standard compliance IEC 601-14
• Protection class IP 40
• Solderability: Complies with IEC 68-2-20
• Temperature range: -30 °C to 80 °C​
