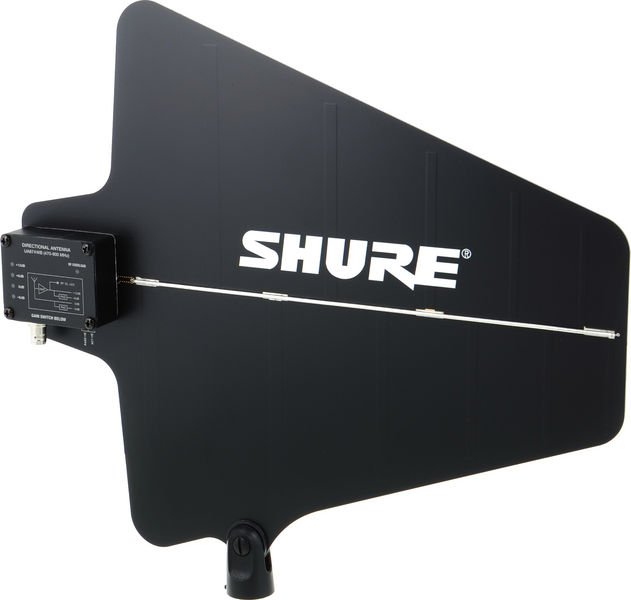

Shure Shure UA874WB UHF Directional Antenna Shure UA874WB UHF Directional Antenna

Spesifikasi Shure UA874WB UHF Directional Antenna

Shure UA874WB UHF Directional Antenna

Shure UA874 is a directional, active UHF antenna to help improve wireless system reception and signal integrity.

It uses a log periodic dipole array to produce a cardioid pattern towards the desired coverage area with greater rejection of RF signals outside the coverage area when compared to standard ½ wave omnidirectional antennas.

An integrated amplifier with four gain settings compensate for varying degrees of coaxial cable signal loss.

UA874 can be stand-mounted, suspended from the ceiling, or wall-mounted using the included swivel adapter bracket.

NOTE: UA874 is a direct replacement for UA870 active directional antenna.

RF Frequency Range: 470-900 MHz

UA874WB features:

  • Compatible with all Shure wireless receivers and antenna distribution systems that provide 12V DC bias
  • Four-position gain selector switch includes active, passive and attenuated settings
  • Onboard RF overload LED indicator
  • Low-noise signal amplifier compensates for transmission loss in coaxial cable
  • Integrated threaded adapter mounts easily to microphones stands
  • Legendary Shure build quality and reliability

UA874WB specs:

Connector Type: BNC, Female
Impedance: 50 ohms
Power Requirements: 10 to 15 V DC bias from coaxial connection, 75 mA
Reception Pattern: 70 degrees
Third-order Intercept Point: >30 dBm
Antenna Gain (On Axis): 7.5 dBi
Signal Gain +/- 1dB:
    Switchable
    Active: +12 dB, +6 dB
    Passive: 0 dB, -6 dB
RF Overload LED Threshold: -5 dBm
Dimensions: 316mm x 359mm x 36mm (H x W x D)

 Rp.7.350.000,00 Tersedia
Beranda » Shure UA874WB UHF Directional Antenna

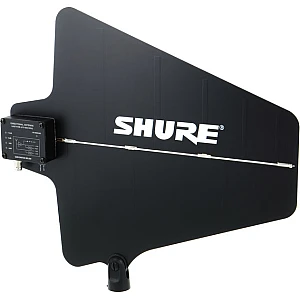

Shure UA874WB UHF Directional Antenna

Toko Alat Musik Jual Semua Product Antena Terlengkap Original dan Termurah
Toko Alat Musik Jual Semua Product Antena Terlengkap Original dan Termurah
Merek: Shure
Kode Produk: UA874WB
Ketersediaan: Tersedia
Harga:
Rp.7.350.000,00
Jml:
Tambah ke Wish List Bandingkan
0 review 0 review  |   Tulis review

Spesifikasi Shure UA874WB UHF Directional Antenna

Shure UA874WB UHF Directional Antenna

Shure UA874 is a directional, active UHF antenna to help improve wireless system reception and signal integrity.

It uses a log periodic dipole array to produce a cardioid pattern towards the desired coverage area with greater rejection of RF signals outside the coverage area when compared to standard ½ wave omnidirectional antennas.

An integrated amplifier with four gain settings compensate for varying degrees of coaxial cable signal loss.

UA874 can be stand-mounted, suspended from the ceiling, or wall-mounted using the included swivel adapter bracket.

NOTE: UA874 is a direct replacement for UA870 active directional antenna.

RF Frequency Range: 470-900 MHz

UA874WB features:

  • Compatible with all Shure wireless receivers and antenna distribution systems that provide 12V DC bias
  • Four-position gain selector switch includes active, passive and attenuated settings
  • Onboard RF overload LED indicator
  • Low-noise signal amplifier compensates for transmission loss in coaxial cable
  • Integrated threaded adapter mounts easily to microphones stands
  • Legendary Shure build quality and reliability

UA874WB specs:

Connector Type: BNC, Female
Impedance: 50 ohms
Power Requirements: 10 to 15 V DC bias from coaxial connection, 75 mA
Reception Pattern: 70 degrees
Third-order Intercept Point: >30 dBm
Antenna Gain (On Axis): 7.5 dBi
Signal Gain +/- 1dB:
    Switchable
    Active: +12 dB, +6 dB
    Passive: 0 dB, -6 dB
RF Overload LED Threshold: -5 dBm
Dimensions: 316mm x 359mm x 36mm (H x W x D)
