Spesifikasi Sennheiser EW DX 835S Set Dual Handheld Microphone System

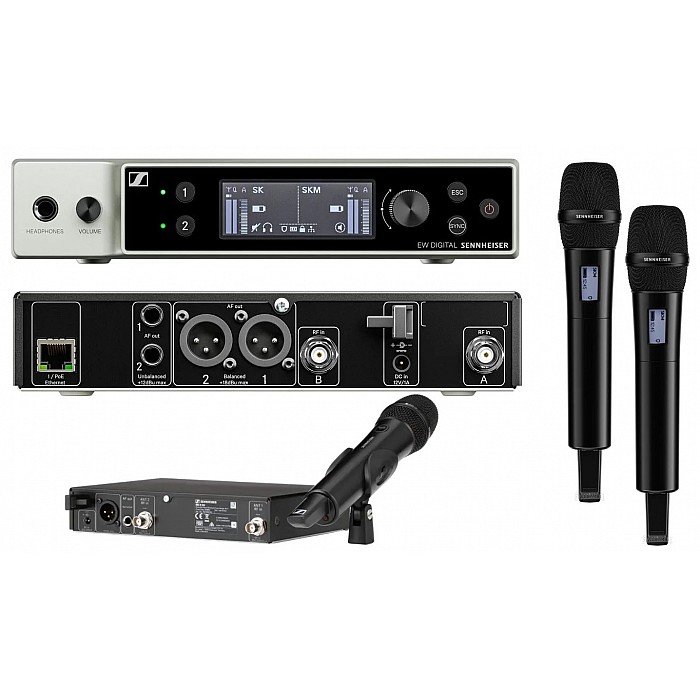

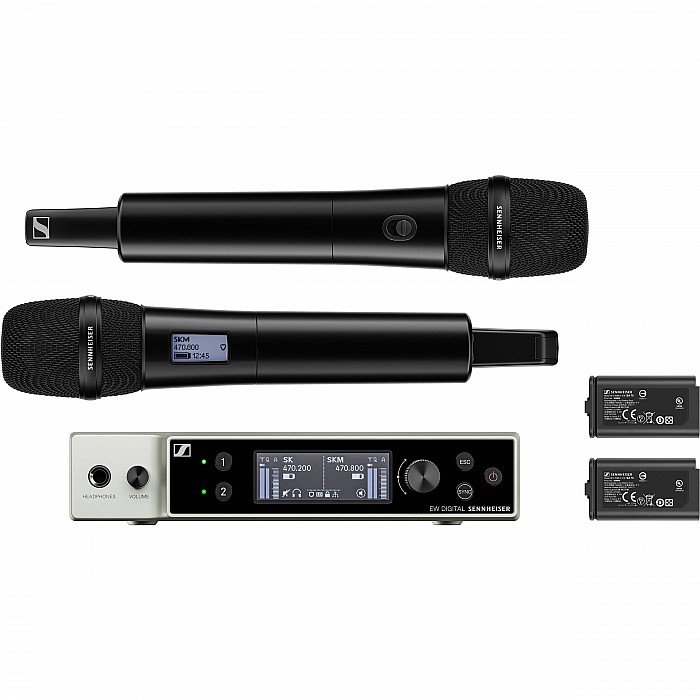

Sennheiser EW DX 835S Set Dual Handheld Microphone System
Simple and Reliable Digital Wireless System
Designed for critical applications and high-traffic environments, Sennheiser EW-DX wireless systems offer rock-solid reliability and clear signal. These systems come with either 2-channel or 4-channel receivers and various transmitter options, so you can tackle any performance requirement. Whether rocking a handheld transmitter or a bodypack, you’ll enjoy a 100m (328-foot) operating range and a 134dB dynamic range, ensuring that it works anywhere in the venue on any source. Moreover, Sennheiser offers select EW-DX wireless systems with Dante-compatible receivers, enabling you to integrate your existing networked audio setup. That might sound complicated, but EW-DX systems set up fast, thanks to Auto Scan technology and the Sennheiser Control Cockpit software. Make no mistake: this system is versatile, expandable, and flexible enough to handle any venue and situation. If you’re looking for a digital wireless system that won’t disappoint, then Sweetwater recommends a Sennheiser EW-DX wireless system.
Simplified setup and deep software control
Getting started with an EW-DX system is effortless! Auto Scan’s in-room automatic setup assigns channels to an equidistant tuning grid. This allows you to carry higher channel counts with greater fidelity and less interference. The bodypack and handheld transmitters provide intuitive function buttons and an easy-to-read e-Ink display for momentary adjustments. All EW-DX systems are controllable using Sennheiser’s Smart Assist app on your mobile device. Meanwhile, Wireless Systems Manager (WSM) and Sennheiser Control Cockpit provide a detailed system view, so you can make the proper adjustments when they need to happen — without touching the hardware. Plus, 12 hours of battery life and network-enabled charging make sure your EW-DX devices are always charged and ready to rock.
Perfect for Presenters and Singers.

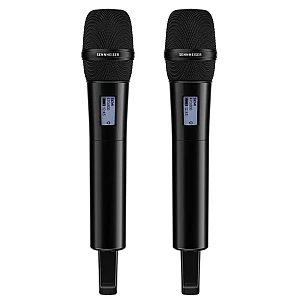

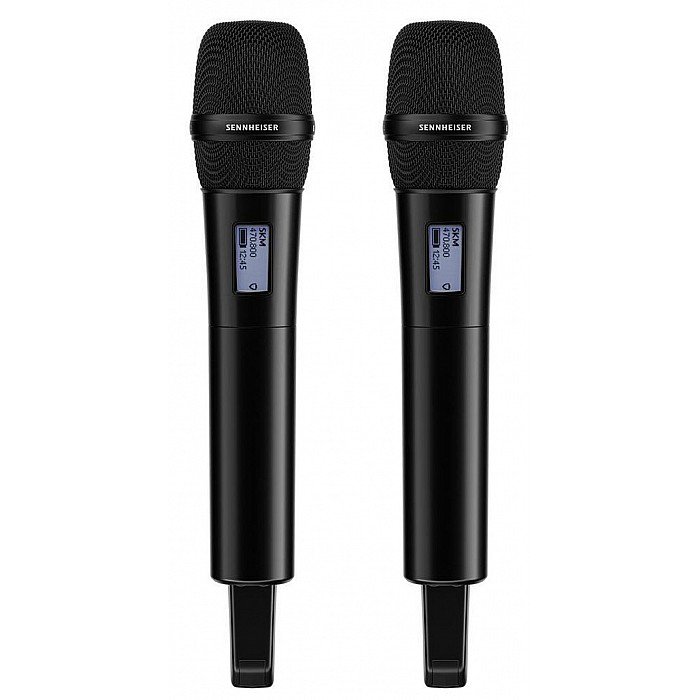

All-in-one digital wireless handheld set for those who sing or speak - featuring Sennheiser's renowned e 835 capsule.
134 dB input dynamic range - no need to set gain on your wireless transmitters at all, thanks to proprietary Sennheiser Performance Audio Codec (SePAC)
AutoScan-feature quickly scans your environment and deploys frequencies with equidistant channel spacing - even without RF knowledge
Network enabled for expanded remote control with Sennheiser Control Cockpit, Wireless System Manager (WSM - Available in mid-2023) and 3rd party media control systems via plug-in
Remote control via Smart Assist App over Bluetooth® Low Energy (BLE) at distances up to 25 meters (Available in late 2023)
Secure transmission of confidential content using AES 256 encryption
Up to 12 hours of operation time with rechargeable lithium ion battery BA 70 (included)
Function buttons - control all the transmitter settings directly from the handheld including button lock function
Persistent E-Ink display for "always on" information - parameters visible on screen even when taking out batteries
Equidistant channel spacing to easily allocate intermodulation-free channels: Standard Mode with 600 kHz spacing for up to 146 channels; Link Density (LD) Mode with 300 kHz spacing for up to 293 channels
Up to 88 MHz switching bandwidth
Low latency of 1.9 ms wireless transmission thanks to proprietary Sennheiser Performance Audio Codec (SePAC)
Digital audio trim
Transmitters with charging contacts for in-device charging with CHG 70N charger (sold separately)
Sennheiser Standard Capsule Interface - compatible with a wide range of Sennheiser and Neumann capsules (sold separately)
Versatile charging options optionally available: CHG 70 N, L 70 USB, LM 6070 Module for L 6000 full rack charging station (Availability in 2023)
Worldwide usage (specific frequencies subject to local RF regulations)
Specs
Simultaneous Systems Per Band:Under 8
System: Analog/Digital:Digital
System: Frequency Range:470.2-550 MHz
System: Operating Range:328 ft. Line-of-sight
System: Frequency Response:20Hz-20kHz
System: Microphone Included:2 x SKM-S Wireless Transmitteres with Sennheiser 835 capsules
System: Channel Selection:Auto/Manual
Microphone: Type:Dynamic
Microphone: Polar Pattern:Cardioid
Microphone: Max SPL:154dB SPL
Microphone: Frequency Response:20Hz-20kHz
Transmitter: Form Factor:Handheld with Mic Capsule
Transmitter: Dynamic Range:134dB (A-weighted)
Transmitter: Mute Feature:Yes
Transmitter: Battery Type:2 x AA batteries, BA 70 Lithium Ion rechargeable battery pack
