Spesifikasi Roland XPS-30 Expandable Synthesizer

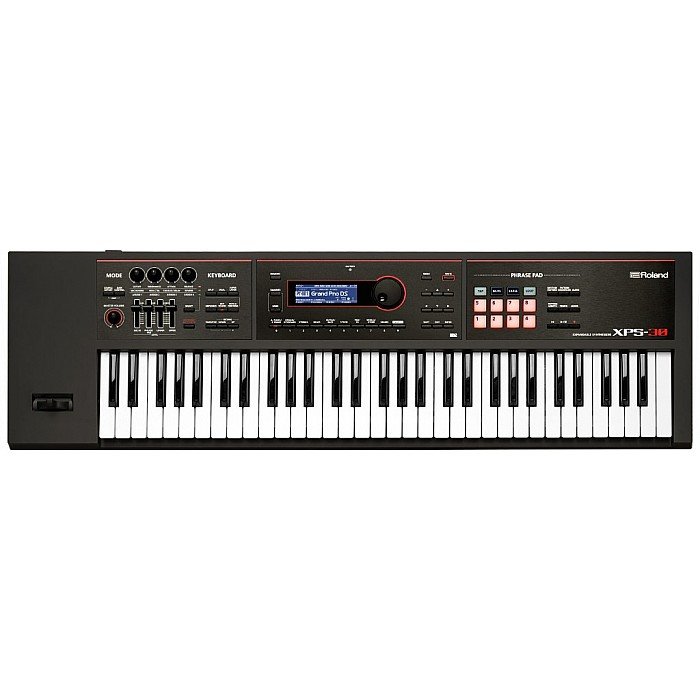

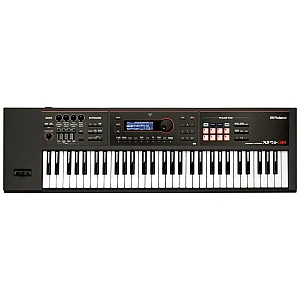

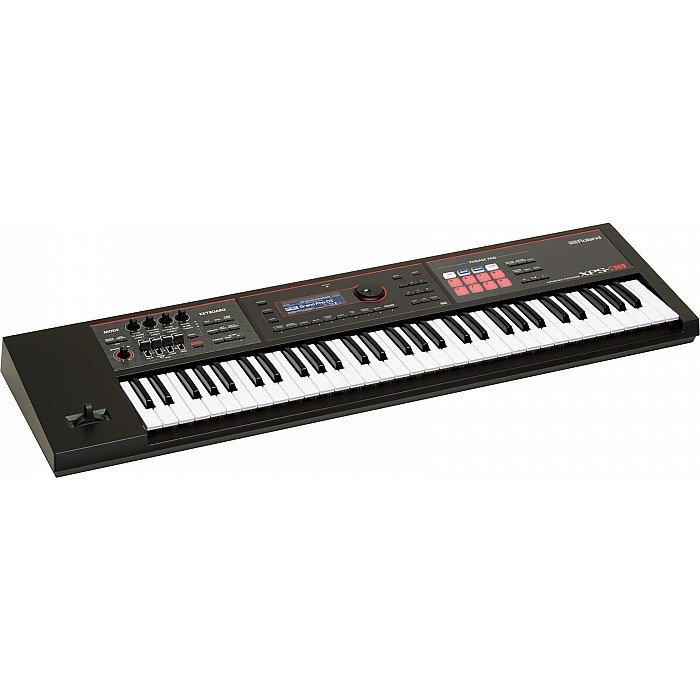

Roland XPS-30 Expandable Synthesizer
The XPS-30 starts with the great feature set of the popular XPS-10 and adds many powerful enhancements that performing players will love. Stage essentials like acoustic and electric piano sound even better, and the internal waveform set can be easily expanded with free sound collections from Roland’s Axial website. The selection of regional instrument sounds has been increased as well, and more user samples can be imported thanks to the doubled onboard memory capacity. There’s also a built-in eight-track pattern sequencer for capturing songs and ideas, plus a convenient mic input with dedicated vocal effects.
Features
- Mobile performance keyboard with pro sounds, enhanced features, and battery-powered operation
- Includes all the sounds from the popular XPS-10 and JUNO-Di, plus updated acoustic and electric pianos and additional regional sounds
- Wave expansion slot enables users to download new sound waveforms, available for free at Roland’s Axial website
- Sample import function with twice the memory capacity of the XPS-10
- Large graphic display and hands-on knobs/sliders for easy navigation and editing
- Eight Phrase Pads for triggering samples and audio songs stored on USB memory
- Mic input and dedicated Reverb, Vocoder, and Auto Pitch effects for impressive vocal performances
- Intuitive eight-track pattern sequencer with non-stop recording for quickly developing song ideas
- USB audio/MIDI and DAW Control mode
-
Specification
- Keyboard
- Keyboard
- 61 keys (with velocity)
- Sound Generator
- Maximum Polyphony
- 128 voices
- Parts
- 16 parts
- Preset Memory
- - Patches: Over 1400
- Drum kits: Over 35
- Performances: 28
* GM2 compatible sounds are included.
- User Memory
- - Patches: 256
- Drum kits: 8
- Performances: 128
- Favorites: 100
- Wave Expansion Slots
- 1 slot
* The wave expansion slot is rewritable internal waveform memory. You can download data from the Axial sound library site and write it via a USB flash drive into the XPS-30's internal wave memory (slot).
- Sample Import Function
- File Format
- Audio file: WAV (44.1 kHz, 16 bits)
- Effects
- - Multi-effects: 3 systems, 80 types
- Chorus: 3 types
- Reverb: 5 types
- Mic input reverb: 8 types
- Audio File Player Section
- File Format
- Audio file: WAV, AIFF, MP3
- Others
- Rhythm Pattern
- Preset: 30 groups x 8
- Arpeggio
- Preset: 128
- Controllers
- Pitch bend/Modulation lever
Control knob x 4
Level slider x 4
Multicolor pad x 8
- Display
- Graphic LCD 256 x 80 dots
- External Storage Device
- USB flash drive (supports USB 2.0 Hi-Speed flash memory)

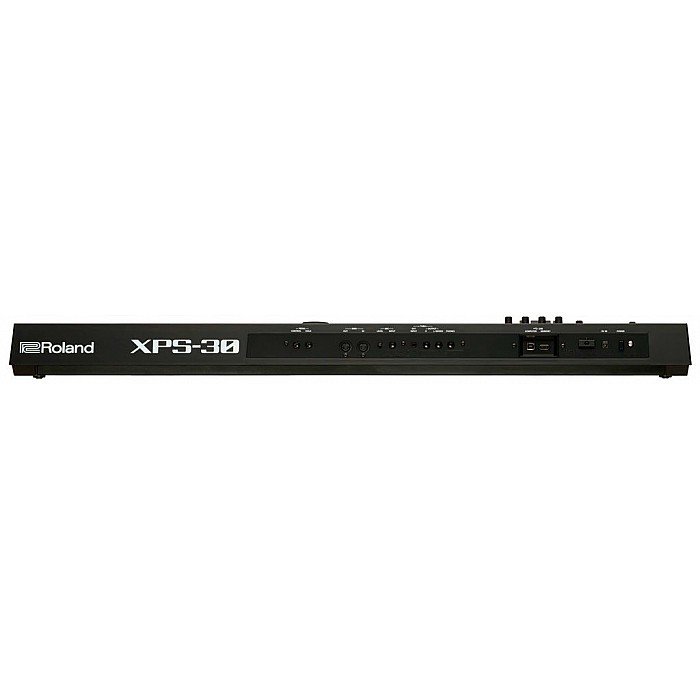

- Connectors
- PEDAL HOLD jack
PEDAL CONTROL jack
MIC INPUT jack: 1/4-inch phone type
EXT INPUT jack: stereo miniature phone type
OUTPUT jacks (L/MONO, R): 1/4-inch phone type
PHONES jack: stereo 1/4-inch phone type
MIDI connectors (IN, OUT)
USB MEMORY port
USB COMPUTER port (supports USB MIDI/AUDIO)
DC IN jack
- Power Supply

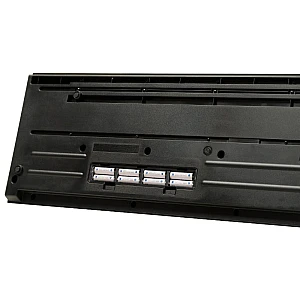

- DC 9 V: AC adaptor or rechargeable Ni-MH battery (AA, HR6) (sold separately) x 8
* Battery life for continuous use (differs depending on the conditions of use)
Rechargeable nickel metal hydride batteries: approximately 5 hours (when using batteries having a capacity of 1900 mAh) (approximately 4 hours if USB flash drive is connected)
* Carbon-zinc or alkaline batteries cannot be used.
- Current Draw
- 600 mA
- Accessories
- Owner's manual
Leaflet “USING THE UNIT SAFELY”
AC adaptor
Power cord
- Options (sold separately)
- Keyboard stand (*1): KS-18Z, KS-12
Pedal switch: DP series
Expression pedal: EV-5
USB flash memory (*2)
*1 When using the KS-18Z, ensure that the height of the unit is one meter or lower.
*2 Use USB Flash Memory (supports USB 2.0 Hi-Speed Flash Memory) sold by Roland. We cannot guarantee operation if other products are used.
- Size and Weight
- Width
- 1,008 mm
39-11/16 inches
- Depth
- 300 mm
11-13/16 inches
- Height
- 97 mm
3-7/8 inches
- Weight (excluding AC adaptor)
- 5.3 kg
11 lbs. 12 oz.
