RCF TT515-A Professional Active Speaker

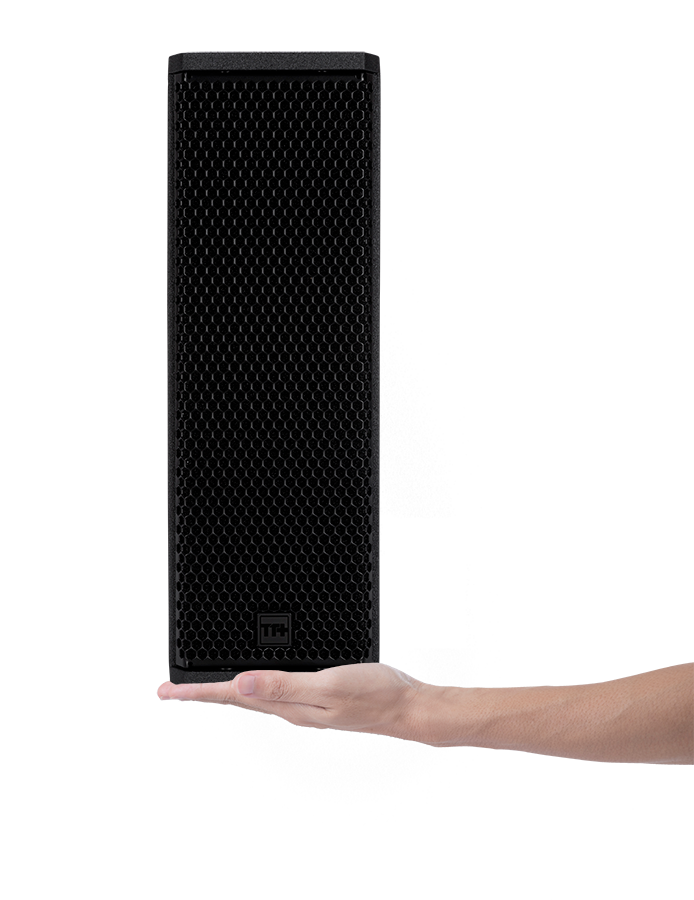

A 2000 watt speaker that can fit in your palm
The two-channel 2000 W (1000 W RMS) amplifier is small, ultra-silent, and fanless. Producing a Max SPL of 127 dB, is perfect for 3D/immersive sound, nearfield systems, and productions that demand extreme sound quality. The rotatable 100x70 degree pattern reaches a wide area, perfectly matching the directivity of the woofers. The internal DSP has a whole range of protections for the transducers and includes special FiRPHASE and BMC processing to achieve coherent distribution of sound without phase distortion and deep, tight bass at any volume.

Precision transducers
Low Frequency

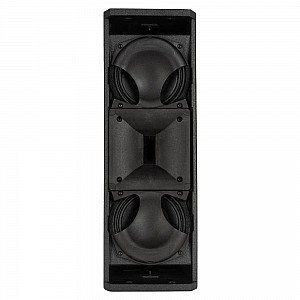

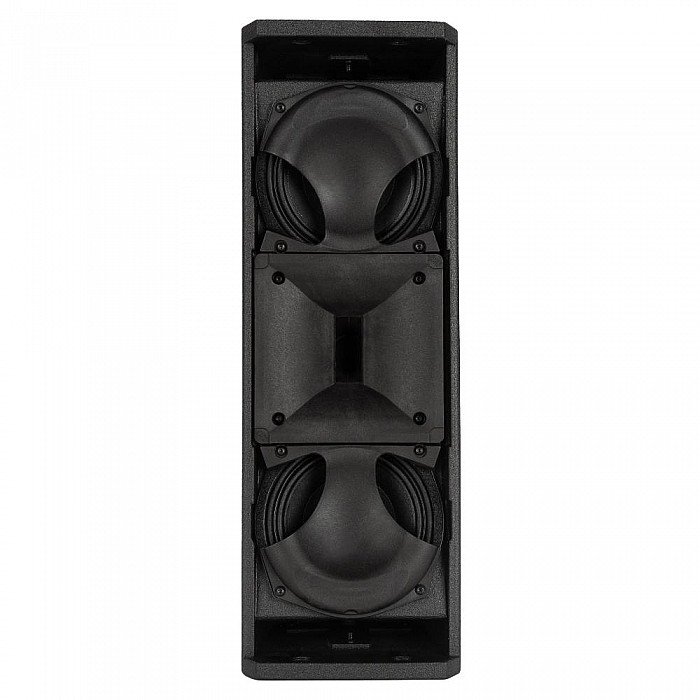

Two 5” cone drivers on a custom-designed phase plug to enhance midrange efficiency and extend horizontal coverage, matching the waveguide dispersion for perfect coverage continuity around the crossover point.

High Frequency
The high-performance 1.75" titanium dome compression driver is fitted on a 100° x 70° rotatable constant-directivity waveguide. This special waveguide and high-frequency transducer design allow excellent control of directional characteristics. In difficult acoustic environments, intelligibility is significantly increased.

​

Rig it anywhere
The only limit is your imagination. With multiple rigging accessories and the unobtrusive form factor of the cabinet, TT 515-A is suitable for a wide range of configurations including hanging, pole-, truss-, wall- or ceiling-mounting— at any angle in horizontal or vertical orientation. The rotatable waveguide (and rotatable logo) allows for perfect dispersion control at any position.

The speaker’s rigging is fast and easy using the practical Quick Fit socket to easily install accessories such as the clamp mount, pole mount, horizontal brackets, or using the two M10 threads on top and bottom of the cabinet. You will always find a place for TT 515-A.

FEATURES
127 dB max SPL
100° x 70° coverage
LF 2 x 5" neodymium woofer, 2” voice coil
HF 1.75” titanium comp. driver
2 x Class-D amplifiers, 1000 Watts RMS total power
70 – 20.000 Hz frequency range
RDNet on board
FiRPHASE and Bass Motion Control

SPECIFICATIONS
ACOUSTICAL SPECIFICATIONS

• Frequency Response:
• 70 Hz ÷ 20000 Hz
• Max SPL @ 1m:
• 127 dB
• Horizontal coverage angle:
• 100°
• Vertical coverage angle:
• 70°

TRANSDUCERS

• Compression Driver:
• 1 x 1.0'' neo, 1.75'' v.c
• Woofer:
• 2 x 5.0'' neo, 2.0'' v.c

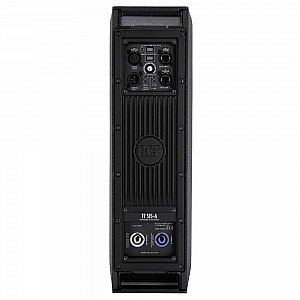

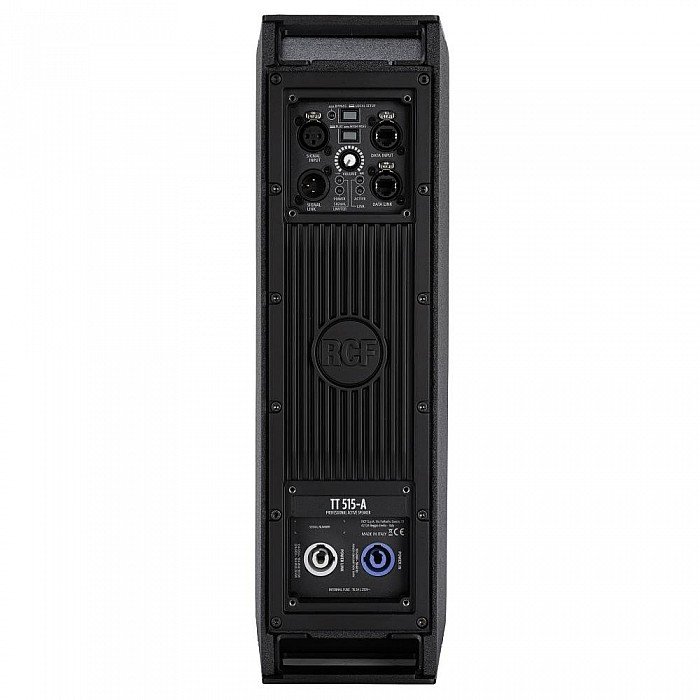

INPUT/OUTPUT SECTION

• Input signal:
• bal/unbal
• Input connectors:
• XLR, RDNet Ethercon
• Output connectors:
• XLR, RDNet Ethercon
• Input sensitivity:
• -2 dBu/+4 dBu

PROCESSOR SECTION

• Crossover Frequencies:
• 1200
• Protections:
• Excurs.
• Limiter:
• Fast Limiter
• Controls:
• Bypass, Linear/High Pass, Volume, RDnet on board
• RDNet:
• Yes

POWER SECTION

• Total Power:
• 2000 W Peak, 1000 W RMS
• High frequencies:
• 600 W Peak, 300 W RMS
• Low frequencies:
• 1400 W Peak, 700 W RMS
• Cooling:
• Convection
• Connections:
• Powercon IN/OUT

PHYSICAL SPECIFICATIONS

• Cabinet/Case Material:
• Baltic birch plywood
• Hardware:
• 2X M10 TOP AND BOTTOM
• 2X PIN D.10
• Handles:
• 2 TOP AND BOTTOM
• Grille:
• Steel
• Color:
• Black

SIZE

• Height:
• 456 mm / 17.95 inches
• Width:
• 154 mm / 6.06 inches
• Depth:
• 237.5 mm / 9.35 inches
• Weight:
• 9.8 kg / 21.61 lbs
