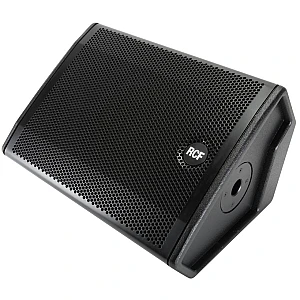

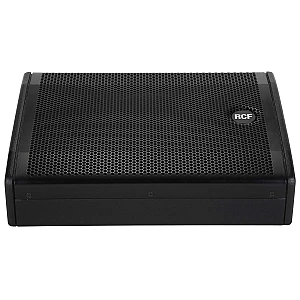

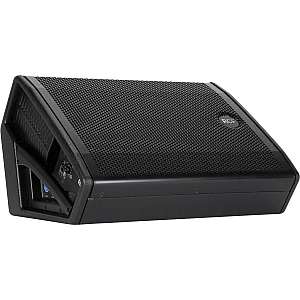

RCF NX 12 SMA Stage Monitor

• Floor, for stage monitoring
• Free Field, for the use of the speakers as a stand-alone PA system

The NX-12-SMA's cabinet is made in Baltic Birch plywood and finished with a resistant paint for extensive use on the road. An ergonomic side handle, integrated with the input panel, is provided for easier transport.

Features:

• 700 W digital bi-amplification
• Wide dispersion 60 x 60 constant directivity horn
• DSP processing, boost EQ, soft limiter and protection
• XLR jack input, XLR signal output

Acoustical Specifications:

• Frequency Response -3 dB: 50 Hz 20 kHz
• Max SPL: 129 dB
• Horizontal coverage angle: 60
• Vertical coverage angle: 60
• Compression Driver: 1" neo compression driver, mylar dome
• Woofer: 12" neo high power woofer, 2.5" voice coil

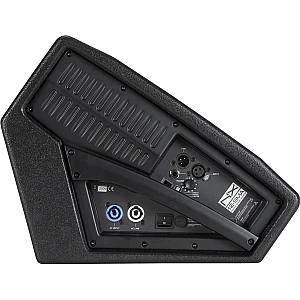

Input/Output Section:

• Input connectors: XLR jack
• Output connectors: XLR

Processor Section:

• Limiter: Soft Limiter
• Controls: Freefield, floor

Amplifier Specifications:

• Total power: 700 W
• High frequencies: 200 W
• Low frequencies: 500 W

Cabinet:

• Cabinet Material: Baltic Birch
• Handles: 1 on side
• Pole Mount/Cap: Yes
• Grille: Steel

Physical Specifications:

• Dimensions: 12.7" H x 21.6" W x 16.4 " D (324 x 550 x 417 mm)
• Net Weight: 36.3 lbs (16.5 kg)
