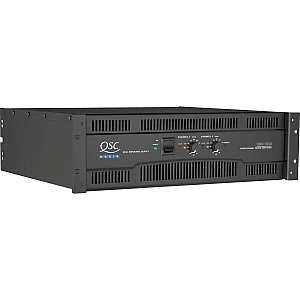

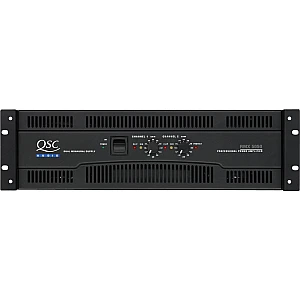

QSC RMX 5050a Power Amp

With amazing audio performance and road-proven durability, the QSC RMX 5050 5,000 Watt Power Amp is suited for a wide range of sound reinforcement applications. Features a 3-tier, Class H design. Extremely efficient at real world power levels. Less AC current is wasted and more goes into producing useful audio power. Uses the best available components. Features balanced 1/4" TRS, XLR, and barrier strip inputs, binding posts and Neutrik Speakon outputs, front-mounted gain controls, plus signal and clip LED indicators to monitor performance. With high-current toroidal transformers for greater 2-ohm power and low noise.

Independent user-defeatable clip limiters reduce distortion. Selectable low-frequency filters (30Hz or 50Hz) protect speakers and increase headroom.

Balanced 1/4" (6.3 mm) TRS, XLR, and barrier strip inputs for maximum flexibility.
Binding post and Neutrik Speakon outputs.
Has front-mounted gain controls for easy access.
Signal and Clip LED indicators to monitor performance

ACCESSORIES

• STEREO MODE, Both Channels Driven
• 8 ohms FTC 20 Hz-20 kHz 0.1% THD 1050 Watts
• 4 ohms FTC 20 Hz-20 kHz 0.1% THD 1600 Watts
• 2 ohms FTC 20 Hz-20 kHz 0.1% THD 2000 Watts
• 8 ohms EIA 1 kHz 0.1% THD 1100 Watts
• 4 ohms EIA 1 kHz 0.1% THD 1800 Watts
• 2 ohms EIA 1 kHz 1% THD 2500 Watts
• BRIDGE-MONO MODE
• 8 ohms FTC 20 Hz-20 kHz 0.1% THD 3200 Watts
• 8 ohms EIA 1 kHz 0.1% THD 3600 Watts
• 4 ohms EIA 1 kHz 1% THD 5000 Watts
• Distortion (SMPTE-IM) Less than 0.02%
• Distortion (Typical)
• 20Hz-20kHz: 10dB below rated power
• 1kHz and below: full rated power
• Less than 0.02%
• Less than 0.02%
• Frequency Response

20Hz to 20kHz, 8 ohms, LF filter bypassed, +0/-1dB
5 Hz to 50 kHz, 8 ohms, LF filter bypassed, +0/-3 dB
Damping Factor Greater than 250 @ 8 ohm
Noise (unweighted) 100 dB below rated output (20 Hz to 20 kHz, 8 ohm load)
Input Sensitivity 1.42 Vrms for 1050 watts into 8 ohms

NOTE: The RMX 5050 requires 20A 120V service and is supplied with a NEMA 5-20 plug on the cordset.
