Spesifikasi Proel SW115A-V2 15" 700W Compact Active Subwoofer

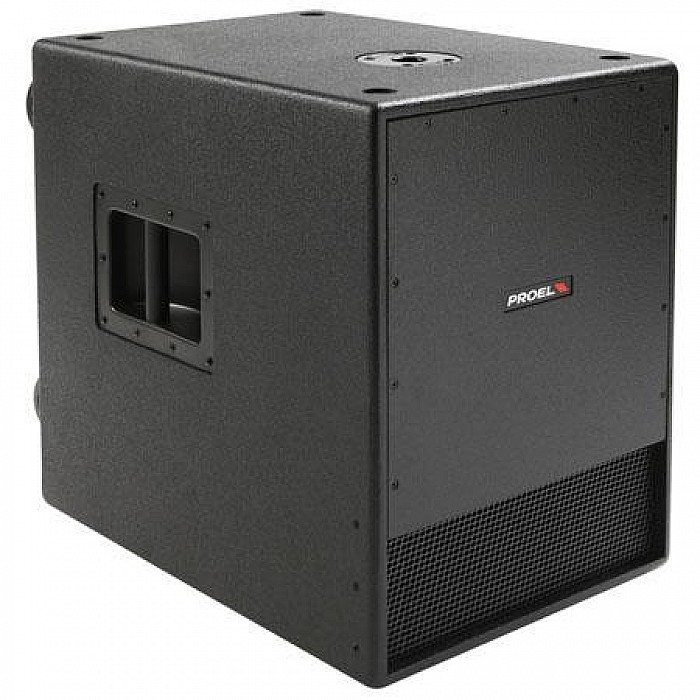

Proel SW115A-V2 15" 700W Compact Active Subwoofer

The SW Series is a range of sub-woofers designed to complement PROEL full-range passive or active speakers. The variety of size, power and SPL offered by the five SW models provides the perfect low extension solution for any speaker model available in the PROEL range.
All the SW models feature large VC woofers and band-pass or vented design, which provide very ‘punchy’, dynamic lows together with an extended low frequency response.

The CLASS D amplifier modules with Switch Mode Power Supply can generate a massive amount of continuous power in a compact and reliable package. All the modules include a STEREO pre-amp section, 24dB/oct. crossover filters with selectable frequency and PHASE reverse switch. The cabinets are built with 15/18mm plywood and feature 2 or 3 metal handles and sturdy 75mm wheels for an easy transport (except SW110).

Features
15” woofer with 3” VC for a quick and dynamic response
700 W peak power
350 W continuous Class D amplifier with SMPS
STEREO input, link and output
24 dB/oct. STEREO crossover filter with selectable frequency
PHASE REVERSE switch
SPL MAX 126dB
Frequency response 40 Hz - 160 Hz

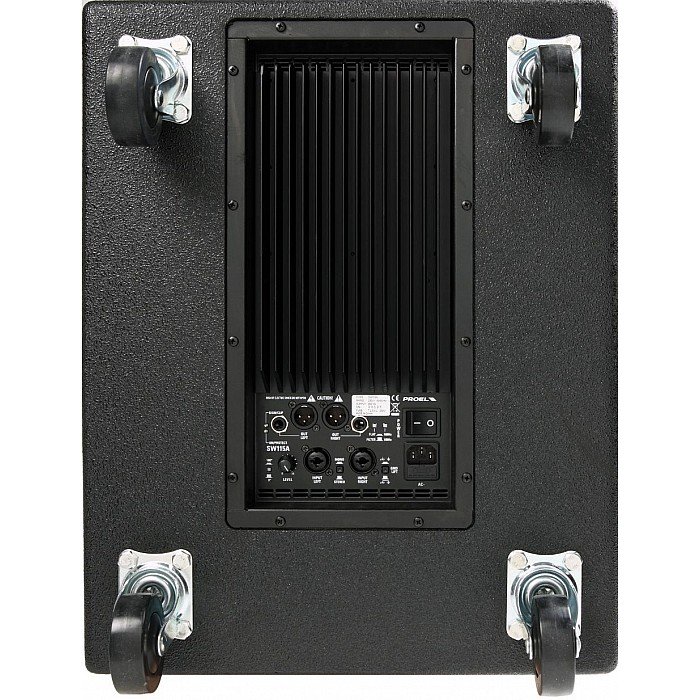

Plywood cabinet with two metal handles and four 75mm wheels

SPECIFICATIONS

System type    BPS enclosure subwoofer
Loudspeaker    15” woofer with 3" VC
Amplifier Continuous Power    350 W
Frequency Response    40 Hz - 160 Hz
Max SPL    126 dB

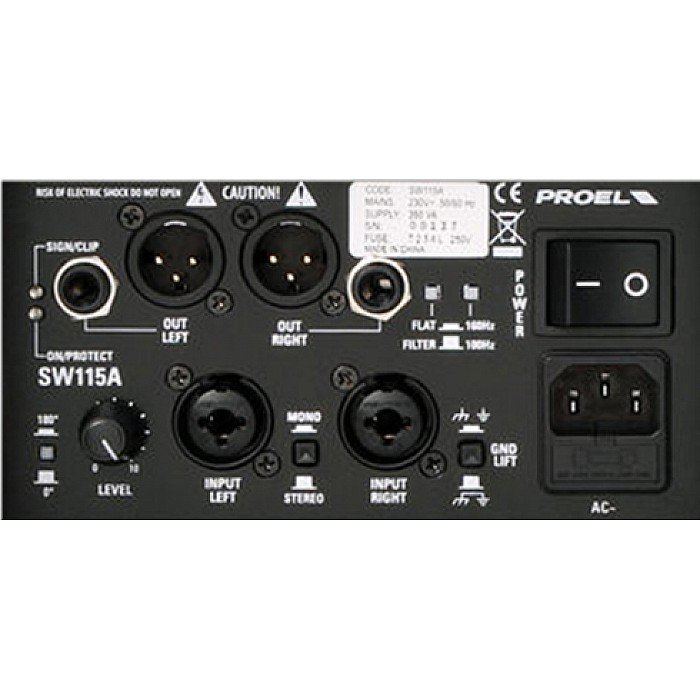

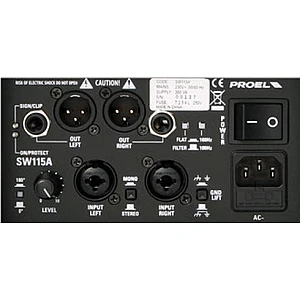

Connectors    IN: 2 x NEUTRIK COMBO
OUT/LINK: 2 x JACK ¼’’, 2 x XLR-M
Controls    Volume, Stereo/Mono, Flat Out
GND lift, X-over frequency, Phase
Power Supply    230 VAC or 120 VAC 50/60 Hz
Weight    27.5 kg (70.6 lb)
Cabinet    15/18 mm plywood
Black anti-scratch paint
1.5 mm metal grille
2 x steel handles
1 x pole holder
4 x 75 mm wheels
Dimensions (W x H x D)    430 x 550 x 600 mm
