Spesifikasi Proel Lite 8A Active 400W 2-Way Loudspeaker Systems

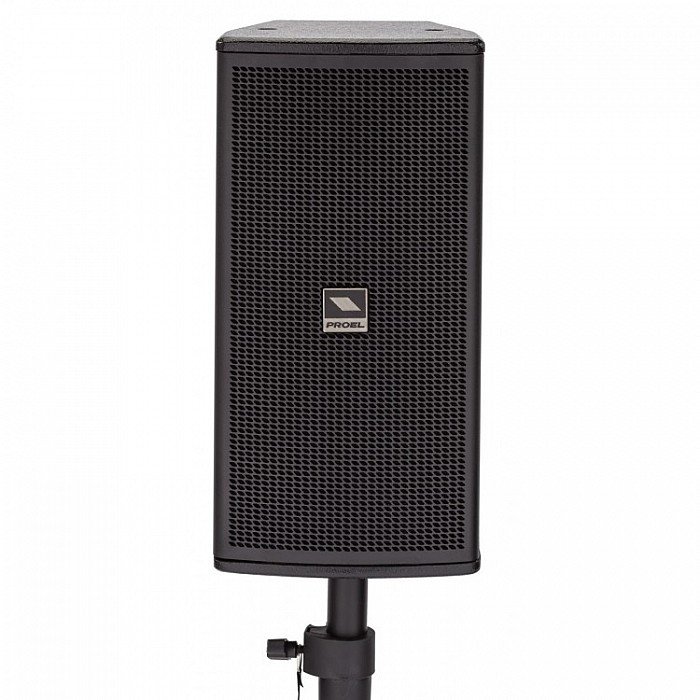

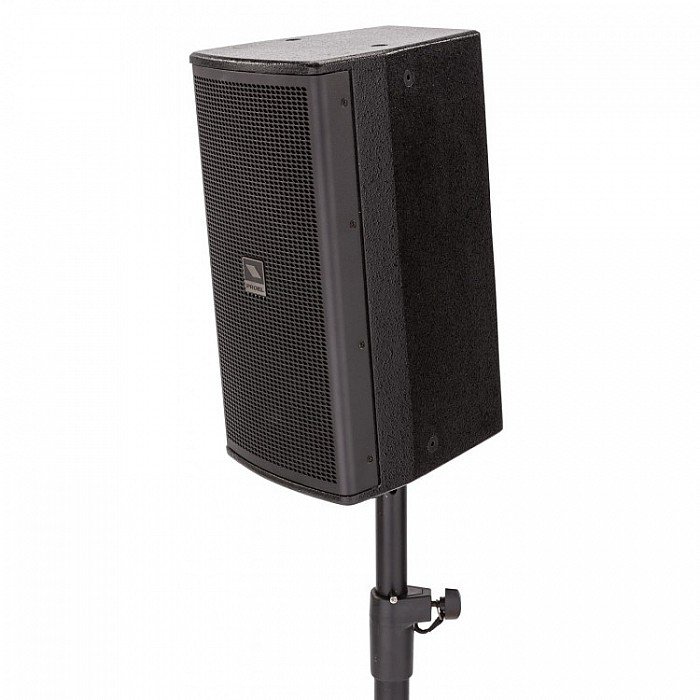

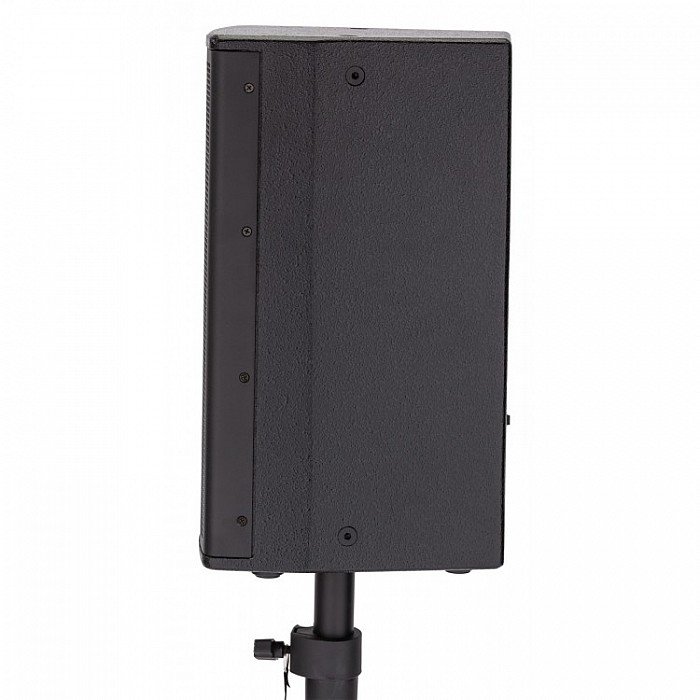

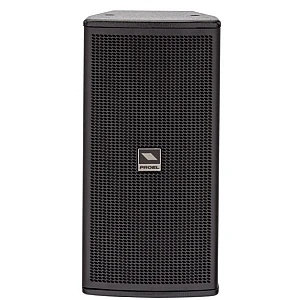

Proel Lite 8A Active 400W 2-Way Loudspeaker Systems

The LITE Series by PROEL is an extended range of active and passive speaker systems with plywood cabinet offering the renowned PROEL sound and a high-level performance in a reliable and affordable package.
For the construction of the cabinets we have used plywood, a very lightweight and durable material that makes moving and installing these speakers very quick and easy. Strong, anti-scratch paint and steel grilles with an internal foam layer provide proper protection for years of service. The dual-angle pole holder featured in 8”, 10”, 12” and 15” models offers the possibility to obtain a more uniform coverage of the audience.

For the high frequency reproduction of LITE Series we have designed wide-dispersion horns, able to provide constant coverage for large audiences and detailed response with low distortion. The high-excursion woofers, together with carefully tuned vented cabinets, offers an extended response with deep and tight basses.

The LITE Series includes 6 active models ranging from 6.5” to dual 15” woofers, plus 1 satellites + subwoofer system. The extremely lightweight power modules used in the active models feature the latest technologies for amplifi cation, such as Switch Mode Power Supply and CLASS D output stages, which provides a massive amount of power with a reduced weight. The power modules are hosted in fully-sealed die-cast aluminum boxes that provides protection, perfect insulation of the cabinet from the outside and extremely efficient cooling.

Each module includes a sophisticated pre-amp section with up to 24 dB/ oct. phase aligned crossover fi lters and active EQ fi lters for the system’s fi ne tuning. The DUAL LIMITER circuit ensures an undistorted sound even at the loudest level and a total loudspeaker protection.

The LT loudspeaker systems can be combined with the SW subwoofers, available in 5 models and capable of providing the perfect low frequency extension for each model of the series.

Features

•     1” compression driver with 1” VC on a constant coverage 60° x 40° horn
•     8” woofer with 1.5” VC
•     400 W peak power
•     50 W continuous class AB amplifier for the high frequencies
•     150 W continuous class D amplifier for the low frequencies
•     Switch Mode Power Supply (SMPS)
•     LINE/MIC input
•     SPL MAX 121 dB
•     Frequency response 70 Hz - 20 kHz
•     Lightweight plywood cabinet
•     1 rear handle
•     4 x M10 flying points

Specification

• ​System type: 2-way vented enclosure
• High Frequency Device: 1” compression driver with 1" VC
• Low Frequency Device: 8” woofer with 1.5” VC
• Angular Coverage: 60° H x 40° V
• Total peak power: 400 W
• HF Amplifier Continuous Power: 50 W Class AB
• LF Amplifier Continuous Power: 150 W Class D
• Power Supply: SMPS
• Processing: Analog
• Frequency Response: 70 Hz - 20 kHz
• Max SPL: 121 dB
• Connectors: IN: COMBO, LINK: XLR M

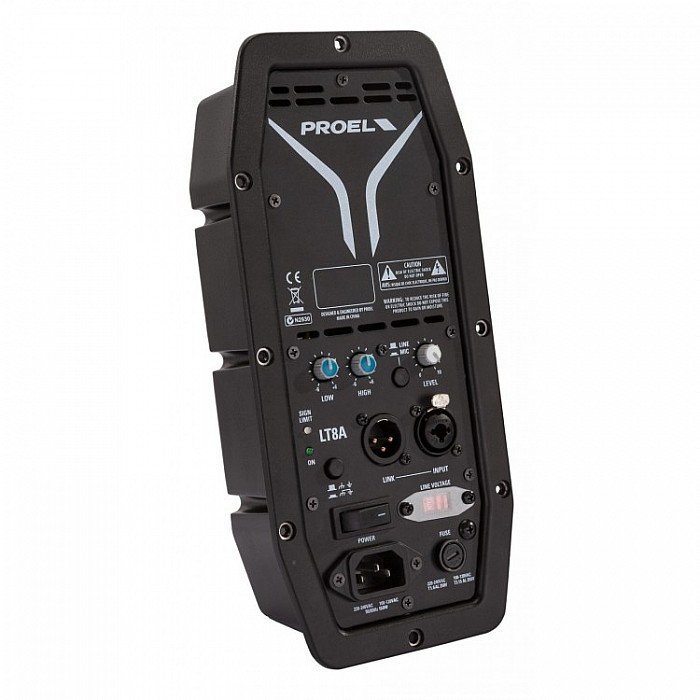

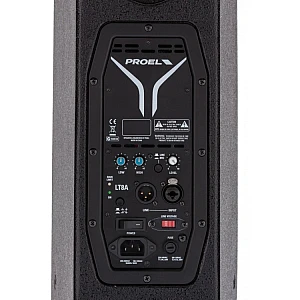

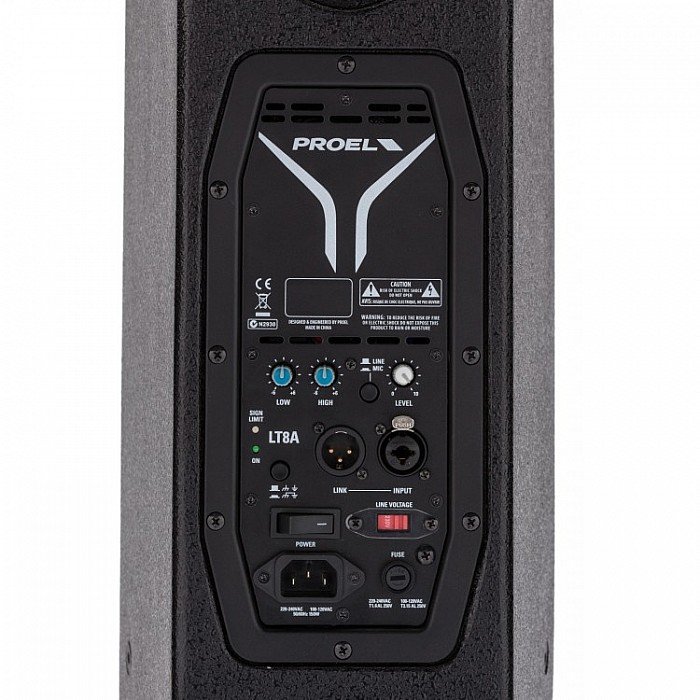

• Controls: LEVEL, LINE/MIC selector, LOW EQ, HIGH EQ, GND LIFT, FRONT LED selector
• Flying System: 4 x M10 top/bottom
• Construction: Plywood
• Cabinet Colour: Black

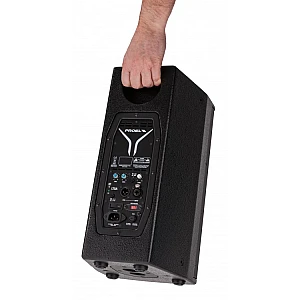

• Handles: 1 x rear
• Mounting Pole: 1 x bottom, dual angle
• Power Supply: 230 or 120 VAC 50/60 Hz with LINE VOLTAGE selector
• Dimensions (W x H x D): 220 x 442 x 260 mm
• Weight: 8.5 kg / 18.7 lbs.
