Spesifikasi Proel Lite 10A Active 600W 2-Way Loudspeaker Systems

Proel Lite 10A Active 600W 2-Way Loudspeaker Systems

The LITE Series by PROEL is an extended range of active and passive speaker systems with plywood cabinet offering the renowned PROEL sound and a high-level performance in a reliable and affordable package.

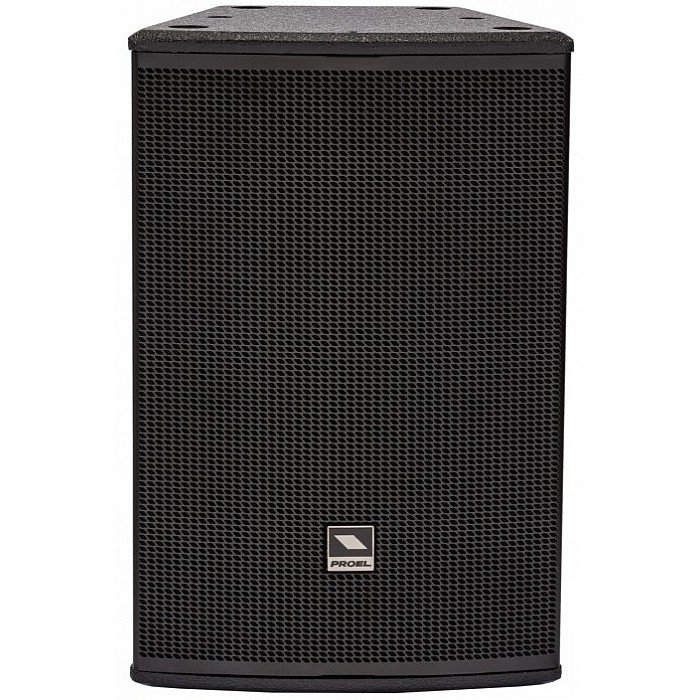

For the construction of the cabinets we have used plywood, a very lightweight and durable material that makes moving and installing these speakers very quick and easy. Strong, anti-scratch paint and steel grilles with an internal foam layer provide proper protection for years of service.

The dual-angle pole holder featured in 8”, 10”, 12” and 15” models offers the possibility to obtain a more uniform coverage of the audience.
For the high frequency reproduction of LITE Series we have designed wide-dispersion horns, able to provide constant coverage for large audiences and detailed response with low distortion.

The high-excursion woofers, together with carefully tuned vented cabinets, offers an extended response with deep and tight basses.

The LITE Series includes 6 active models ranging from 6.5” to dual 15” woofers, plus 1 satellites + subwoofer system. The extremely lightweight power modules used in the active models feature the latest technologies for amplifi cation, such as Switch Mode Power Supply and CLASS D output stages, which provides a massive amount of power with a reduced weight.

The power modules are hosted in fully-sealed die-cast aluminum boxes that provides protection, perfect insulation of the cabinet from the outside and extremely efficient cooling. Each module includes a sophisticated pre-amp section with up to 24 dB/ oct.

Phase aligned crossover fi lters and active EQ fi lters for the system’s fi ne tuning. The DUAL LIMITER circuit ensures an undistorted sound even at the loudest level and a total loudspeaker protection.
The LT loudspeaker systems can be combined with the SW subwoofers, available in 5 models and capable of providing the perfect low frequency extension for each model of the series.

Features

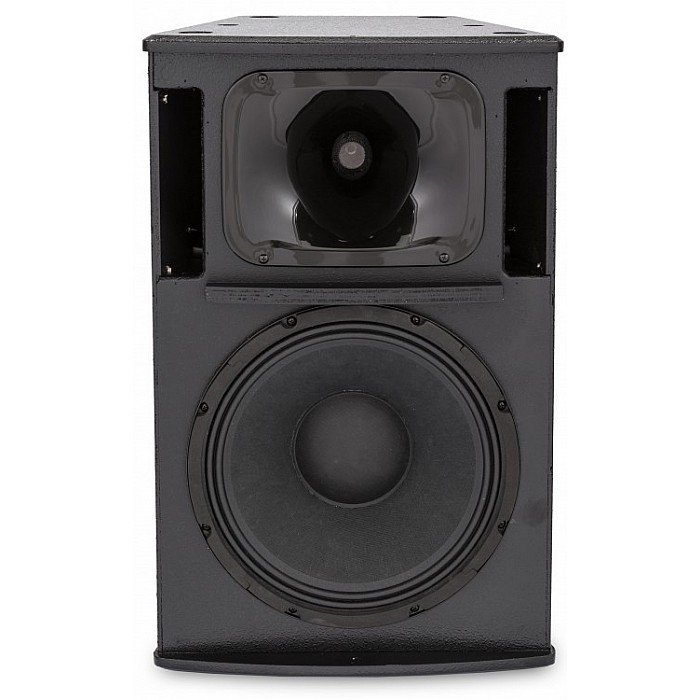

• 1” compression driver with 1” VC on a constant coverage 90° x 60° horn
• 10” woofer with 2” VC
• 600 W peak power
• 50 W continuous class AB amplifier for the high frequencies
• 250 W continuous class D amplifier for the low frequencies
• Switch Mode Power Supply (SMPS)
• LINE/MIC input
• SPL MAX 123 dB
• Frequency response 60 Hz - 20 kHz
• Lightweight plywood cabinet
• 1 rear handle
• 4 x M10 flying points
• SPECIFICATIONS
• System type: 2-way vented enclosure
• High Frequency Device: 1” compression driver with 1" VC
• Low Frequency Device: 10” woofer with 2” voice coil
• Angular Coverage: 90° H x 60° V
• Total peak power: 600 W
• HF Amplifier Continuous Power: 50 W Class AB
• LF Amplifier Continuous Power: 250 W Class D
• Power Supply: SMPS
• Processing: Analog
• Frequency Response: 60 Hz - 20 kHz
• Max SPL: 123

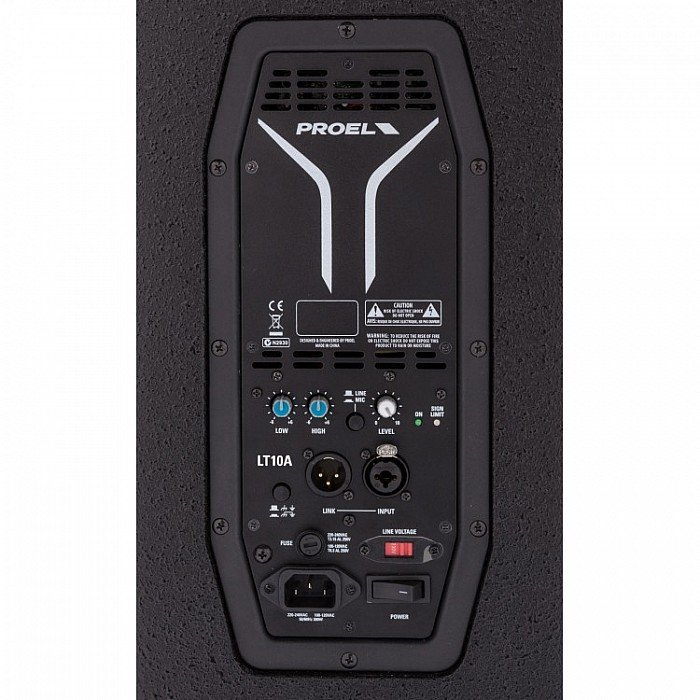

• Connectors: IN: COMBO, LINK: XLR M
• Controls: LEVEL, LINE/MIC selector, LOW EQ, HIGH EQ, GND LIFT, FRONT LED selector
• Flying System: 4 x M10 top/bottom
• Construction: Plywood
• Cabinet Colour: Black

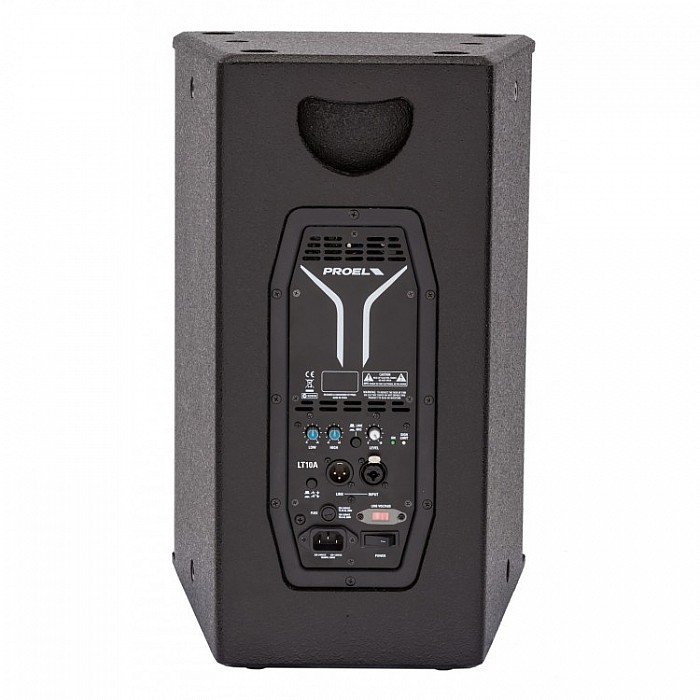

• Handles: 1 x rear
• Mounting Pole: 1 x bottom, dual angle
• Power Supply: 230 or 120 VAC 50/60 Hz with LINE VOLTAGE selector
• Dimensions (W x H x D): 340 x 515 x 310 mm
• Weight: 12.5 kg / 27.6 lbs.
