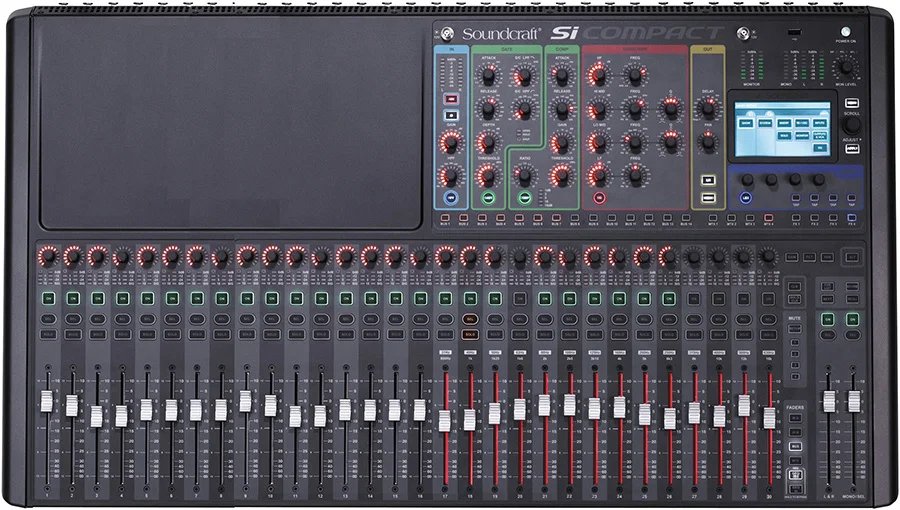

Soundcraft Si Compact 32 Channel Digital Mixer

Soundcraft Si Compact 32 Channel Digital Mixer

Spesifikasi Utama

Type: Digital Mixing Console
Model: Si Compact 32
Brand: Soundcraft
Input Channels: 32 Mono Input Channels
Stereo Channels: 4 Stereo Channels
Mic Preamps: 32 Recallable Microphone Preamps
DSP Engine: EMMA Lite DSP
Mix Bus: 14 Aux/Sub Group Buses
FX Bus: 4 FX Buses
Matrix: 4 Matrix Buses
Main Mix: LRC Mix Bus
Built-in Effects: 4 Stereo Lexicon FX Processor
EQ: Parametric EQ + Graphic EQ
Dynamics: Compressor & Gate per Channel
Delay: Input & Output Delay
Expansion Slot: 64-Channel Option Card Slot
Control: ViSi Remote Compatible
Dimensions: ±868 × 563 × 185 mm
Weight: ±20 kg

Fitur

• Digital mixer profesional 32-channel.
• 32 mic preamp dengan recall setting.
• 4 stereo channel tambahan.
• Processing lengkap pada setiap input:
  • Compressor
  • Gate
  • Parametric EQ
  • High Pass Filter
  • Delay
• 4 stereo Lexicon Effects Engine.
• 21 Graphic EQ untuk kebutuhan output.
• AES Digital Input/Output.
• Dukungan expansion card untuk AES, MADI, CobraNet, dan sistem networking lainnya.
• Kompatibel dengan aplikasi Soundcraft ViSi Remote.
• Penyimpanan scene, cue, dan show management.

Performa

Soundcraft Si Compact 32 memberikan kualitas audio profesional dengan workflow mixing yang mudah digunakan. Kombinasi 32 channel input, DSP processing lengkap, efek Lexicon, dan fleksibilitas routing membuatnya mampu menangani kebutuhan live production kompleks seperti konser, event besar, broadcast, dan instalasi audio permanen.

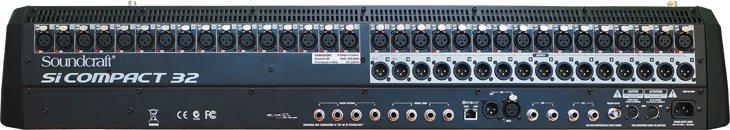

Konektivitas

• 32 × XLR Mic Input
• 2 × Stereo Analog Line Input Pair
• AES Digital Input
• AES Digital Output
• 16 × Analog Line Output
• Headphone Monitor Output
• 4 × Analog Insert Send/Return
• 64-Channel Expansion Card Slot
• USB Connection
• Ethernet / HiQnet Integration

Kelengkapan

• 1 Unit Soundcraft Si Compact 32 Digital Mixer
• Power Cable
• User Manual
