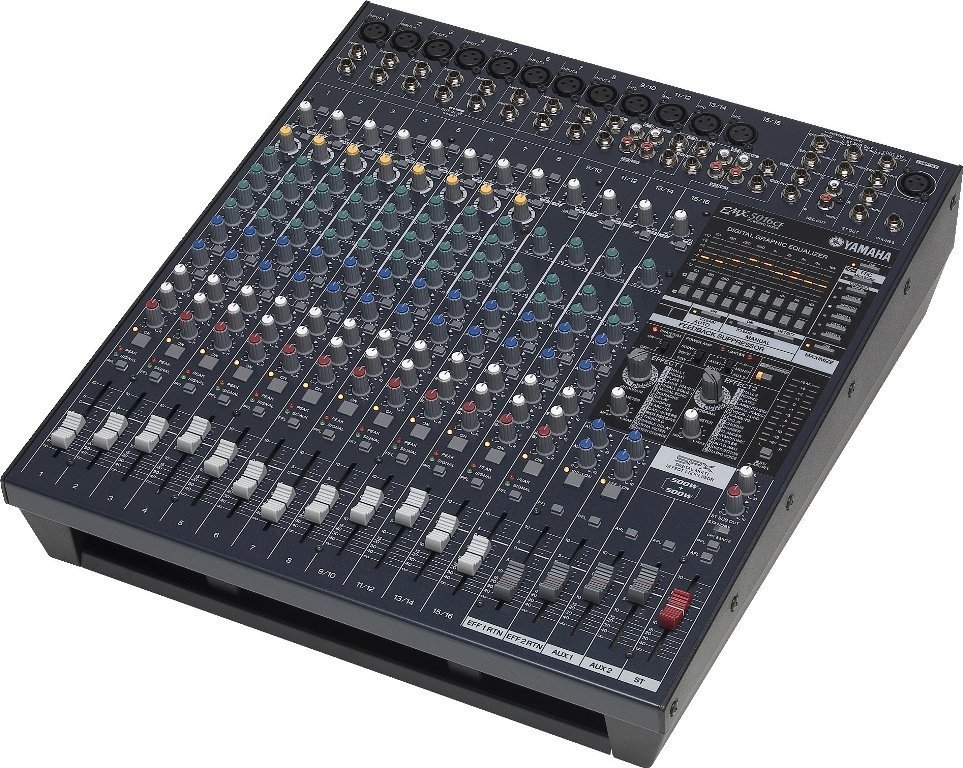

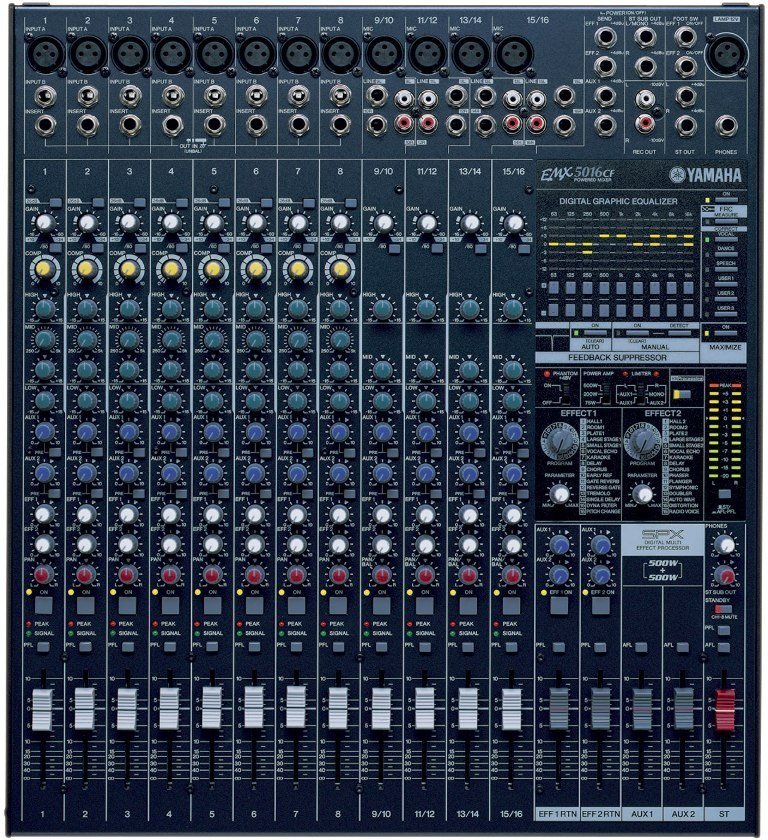

Yamaha EMX5016CF 16-Channel 1000W Powered Mixer

Spesifikasi Utama

Type: Powered Analog Mixer with Built-in Power Amplifier
Model: EMX5016CF
Brand: Yamaha
Channels: 16 Inputs (8 Mono + 4 Stereo + 2 Return)
Mic Preamps: 12 × Mic Inputs
Phantom Power: +48V Phantom Power
Amplifier Power: 2 × 500 W @ 4Ω (1000 W Total)
Amplifier Class: Class-AB
DSP Effects: Dual Yamaha SPX Digital Effects (16 Programs)
Graphic EQ: Dual 9-Band Digital Graphic EQ
Compressor: 1-Knob Compressor (CH1–CH8)
Feedback Suppressor: Built-in
Speaker Processing: Yamaha Speaker Processing (YSP) + Frequency Response Correction (FRC)
Frequency Response: 20 Hz – 20 kHz
Speaker Output Modes: Stereo / AUX1-MONO / AUX1-AUX2
Dimensions: 444 × 493 × 155 mm
Weight: ±11 kg

Fitur

• Powered mixer 16-channel dengan amplifier 2 × 500 Watt.
• Dual Yamaha SPX Digital Effects.
• Dual 9-Band Digital Graphic EQ.
• Built-in Feedback Suppressor.
• Yamaha Speaker Processing (YSP).
• Frequency Response Correction (FRC).
• 1-Knob Compressor pada channel 1–8.
• High Pass Filter pada seluruh channel.
• Insert pada channel mono.
• Dua input Footswitch untuk kontrol efek.

Performa

Yamaha EMX5016CF menghasilkan suara yang jernih dan bertenaga dengan amplifier internal 1000 Watt serta fitur DSP yang lengkap. Kombinasi Dual SPX Effects, Digital Graphic EQ, Feedback Suppressor, dan Yamaha Speaker Processing menjadikannya pilihan ideal untuk live band, house of worship, seminar, dan rental sound system tanpa membutuhkan perangkat eksternal tambahan.

Konektivitas

• 12 × XLR Mic Input
• 16 × Line Input
• 4 × AUX Send
• Stereo Main Output (L/R)
• REC Output (L/R)
• Subwoofer Output
• 8 × Insert Input
• 2 × Footswitch Input
• Speaker Outputs
• Headphone Output
• Lamp Connector

Kelengkapan

• 1 Unit Yamaha EMX5016CF
• Power Cable
• User Guide
