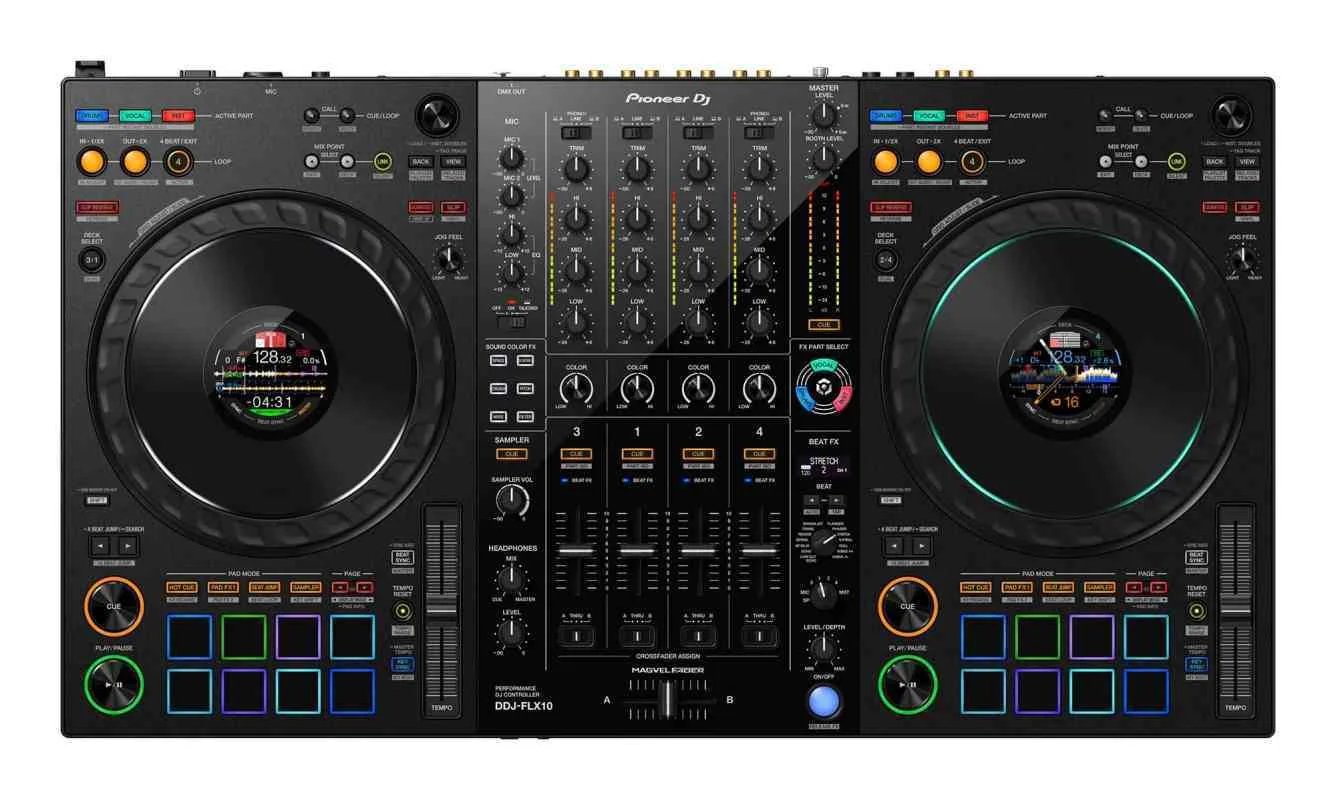

Pioneer DDJ FLX10 4 Deck DJ Controller

Pioneer DDJ FLX10 4 Deck DJ Controller

Tipe & Fungsi

• Jenis:
  • 4-channel performance DJ controller
• Kategori:
  • Professional club-style controller
• Target:
  • club DJ
  • open format DJ
  • mashup & remix performance DJ
  • mobile pro setup

Channel & Deck

• 4-channel mixer internal
• 4-deck control (software-based)
• Layout:
  • mirip CDJ-3000 + DJM mixer club setup

Jog Wheel & Display

Jog Wheel

• Ukuran:
  • 206 mm (20.6 cm)
• Touch-sensitive jog wheel
• Non-motorized
• Adjustable jog feel

On-Jog Display

• 4 mode tampilan:
  • Deck Info
  • Waveform (zoom)
  • Artwork
  • Custom DJ log

Performance Features (STEMS & Creative Control)

Track Separation (STEMS)

Bisa kontrol terpisah:

• Vocals
• Drums
• Instruments

Fitur:

• Active Part Control (mute/adjust per elemen)
• FX Part Select (FX hanya ke vokal / drum / instrument)
• Part Instant Doubles (copy bagian lagu ke deck lain)

Fitur Mixing & Performance

• Hot Cue
• Beat Jump
• Beat Loop
• Slip Mode
• Quantize
• Key Sync
• Master Tempo
• Vinyl Mode
• Sampler
• Pad FX

Performance Pads

• 8 pads per deck
• Multi mode control (Hot Cue, Stems, Sampler, Beat Jump, dll)

Mixer Section

• 4-channel mixer
• 3-band EQ per channel
• Filter per channel
• Trim/gain per channel
• Crossfader MAGVEL FADER (4-sensor system)

Audio Specifications

• Soundcard:
  • 24-bit / 44.1 kHz
• Frequency response:
  • 20 Hz – 20 kHz
• Signal-to-noise ratio:
  • sekitar 110 dB
• Distortion:
  • sangat rendah (<0.002–0.003%)

Software Compatibility

• rekordbox (full support)
• Serato DJ Pro (plug & play unlock)
• djay Pro (support tertentu)

 Input & Output

Inputs

• 2× LINE (RCA)
• 2× PHONO/LINE (RCA)
• 1× MIC (XLR/TRS combo)
• 1× MIC (TRS 6.3 mm)

Outputs

• MASTER OUT:
  • XLR (balanced)
  • RCA
• BOOTH OUT:
  • 1/4” TRS
• HEADPHONE:
  • 6.3 mm + 3.5 mm

USB

• 2× USB-C (dual laptop)

DMX

• 1× DMX OUT (lighting control langsung)

Fitur Tambahan

• DMX Lighting control langsung dari controller
• Mix Point Link (auto transition antar lagu)
• Multicolor jog ring (untuk visual STEMS)
• Firmware update manager
