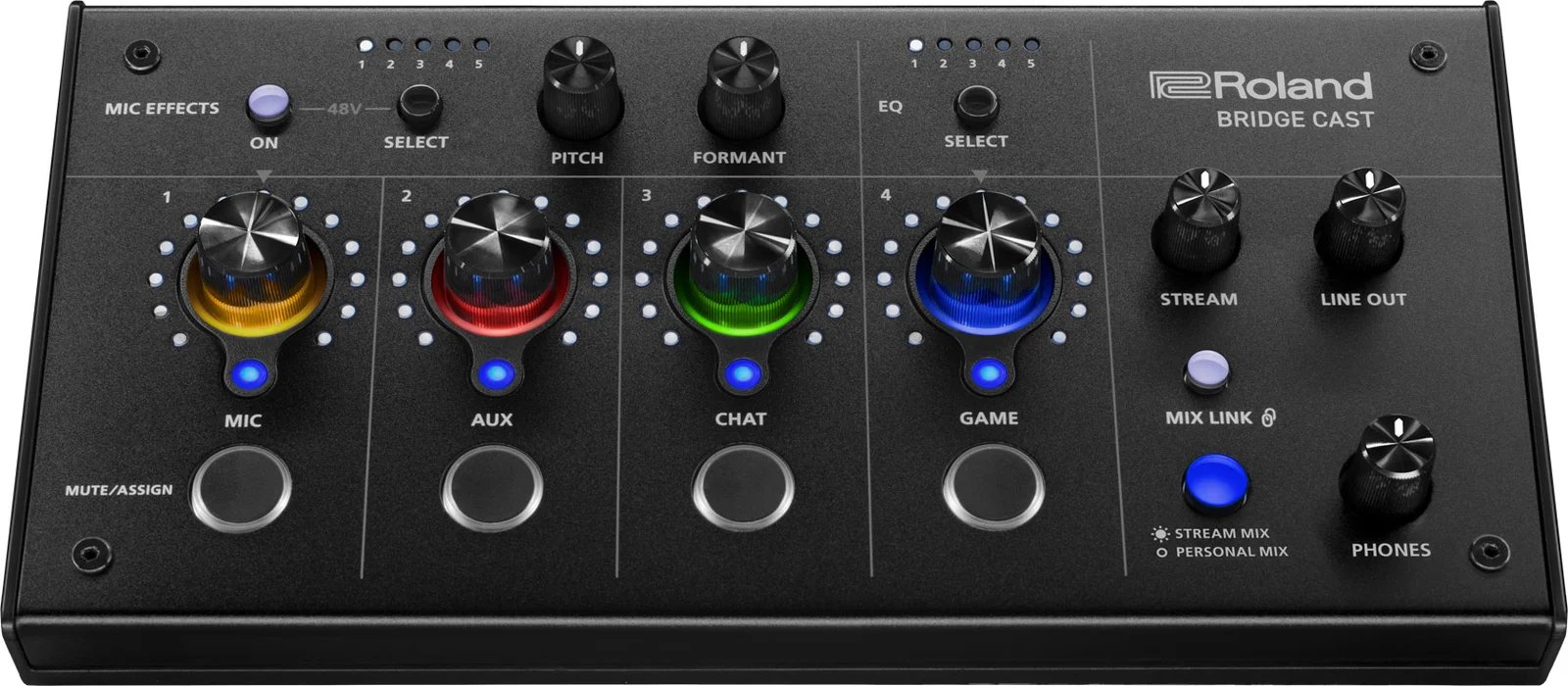

Roland Bridgecast Dualbus Gaming Audio Mixer

Roland Bridgecast Dualbus Gaming Audio Mixer

Tipe & Fungsi Utama

Roland BRIDGE CAST Adalah Dual-Bus Gaming Audio Mixer & Streaming Interface Yang Dirancang Untuk:

• Gaming
• Livestreaming
• Content Creation
• Voice Chat Profesional

Perangkat Ini Menggabungkan Audio Mixer + Interface + DSP Effects Dalam Satu Unit Desktop.

Arsitektur Dual Bus (Fitur Utama)

• STREAM MIX (Audio Untuk Penonton/Streaming)
• PERSONAL MIX (Audio Untuk Pendengar / Gamer)

Fungsi Ini Memungkinkan:

• Suara Game, Chat, Musik, Mic Dipisah Levelnya
• Monitoring Pribadi Berbeda Dengan Output Streaming
• Kontrol Real-Time Tanpa Ganggu Output Lain

Input Channel

• MIC Input (XLR / Dynamic / Condenser)
• AUX Input (Smartphone / External Audio)
• USB Audio Input (PC / Console)
• GAME Audio Channel
• CHAT Audio Channel
• MUSIC Audio Channel
• SYSTEM Audio Channel

Output Channel

• STREAM OUTPUT (Ke OBS / Platform Streaming)
• PERSONAL OUTPUT (Monitoring User)
• HEADPHONES OUTPUT
• LINE OUT (Speaker External)
• MIC MONITOR OUTPUT
• USB OUTPUT ROUTING

Konektivitas

• USB Type-C (PC / Mac / Console / Mobile)
• XLR Mic Input (Phantom Power 48V)
• 3.5 mm Headphone / Headset Jack
• AUX TRRS Input
• Line Out Stereo Jack
• USB Power Input (5V)

Audio Processing (DSP)

• 32-bit Floating Point DSP Engine
• 24-bit AD/DA Conversion
• Sampling Rate Hingga 96 kHz (Windows)
• 48 kHz (Mac / iOS / Mobile)

Efek Vokal (Voice Processing)

• Voice Changer (Pitch & Formant Shift)
• Noise Suppressor
• Compressor
• Equalizer
• De-Esser
• Low Cut Filter
• Reverb Effect
• Delay (Untuk Streaming Sync)

Game Audio Features

• Game EQ Preset (Boost Footstep / Detail Suara Game)
• Virtual Surround Sound 5.1 / 7.1
• Real-Time Waveform Monitoring
• Audio Frequency Highlighting

Headphone & Output Power

• Headphone Amplifier High Power
• Output Hingga ±78 mW @ 32 Ohm
• Support Headphone Impedansi Tinggi (hingga 250 Ohm+)
• Low Latency Monitoring (Hampir Zero Delay)

Kontrol Fisik

• Multi Knob Level Control
• Dedicated Button Untuk Mute / FX / Routing
• Customizable LED Knob Colors
• Assignable Control Mapping
• Panel Desktop Ergonomis Anti-Slip

Software & App Support

• BRIDGE CAST Companion App
• EQ Preset Management
• Voice Profile Customization
• Audio Routing Control
• Game Profile Saving
• BGM CAST (Musik Latar & Sound Effects)
• Roland Cloud Integration

Fitur Streaming Tambahan

• Background Music (Royalty-Free)
• Sound Effects Library
• Voice Branding Tools
• Multi-Profile Switching
• Scene-Based Audio Presets

Kompatibilitas

• PC (Windows)
• Mac
• PlayStation 5
• Mobile Device (via USB-C)
• Streaming Software (OBS, Discord, dll)
