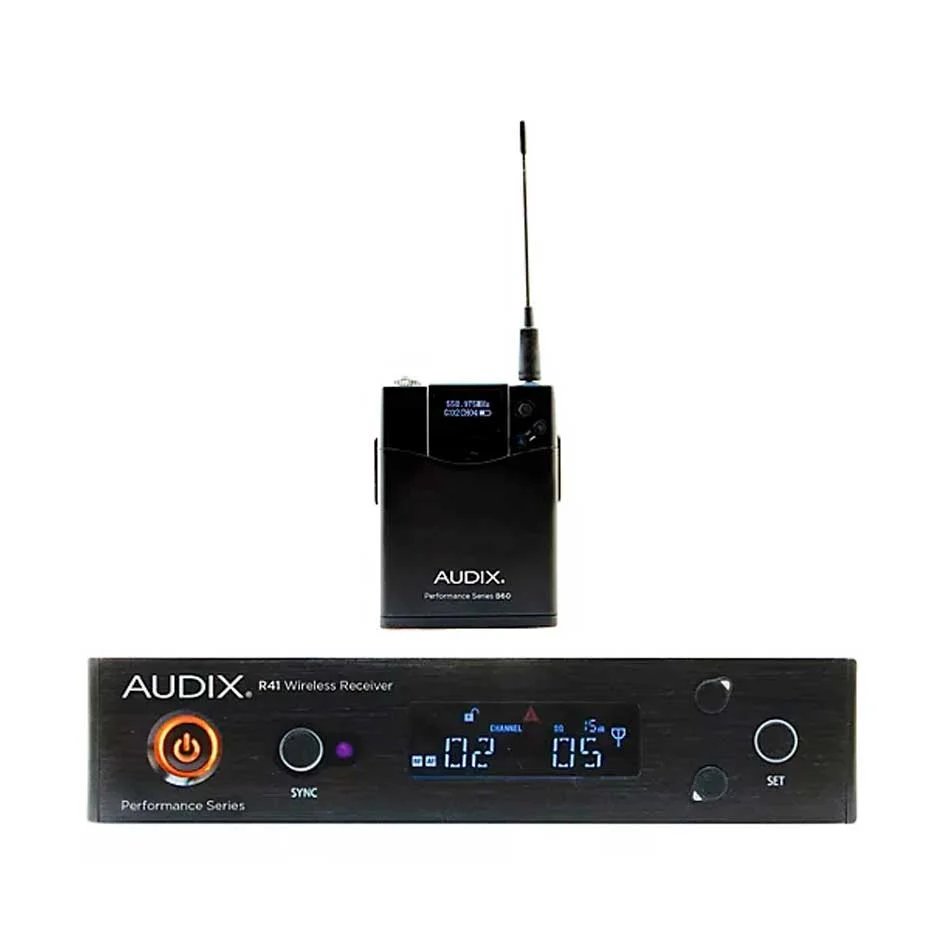

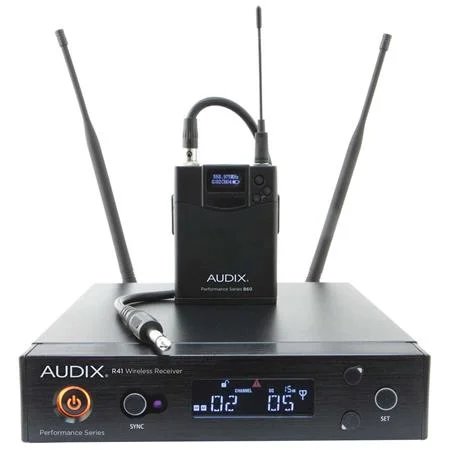

Audix AP41 BP Wireless Microphone System R41 Diversity Receiver

Audix AP41 BP Wireless Microphone System R41 Diversity Receiver

Whats in The Box?

• 1x R41 32 MHz Diversity Receiver
• 1x B60 Bodypack Transmitter
• 2x Antennas
• 1x Audio Cable
• 2x AA Batteries
• 1x Carrying Case
• 1x Power Supply
• 1x User Guide
• 1x Rackmount Hardware

Specifications:

• General
• Frequency Range A: 522MHz–554MHz/B: 554MHz–586MHz
• Compatible Systems: Up to 16 systems
• Switchable Frequencies: 106 Pre-coordinated frequencies
• Frequency Response: 45Hz–18kHz
• Compander System: 2:1
• Pilot Tone: 32 kHz
• Receiving System: Single tuner, diversity
• Signal-to-Noise Ratio: 105 dB at 30 kHz deviation (A-weighted)
• Total Harmonic Distortion: ≤0.7% (33 kHz deviation at 1 kHz)
• Sensitivity: 5 dBμV (S/N 60 dB at 25 kHz deviation, A-weighted)
• Audio Output: (AF=0)
• Balanced: -12dBv @ 25kHz deviation, 600 ohm load 1/4″: -18dBv @ 25kHz deviation, 10 kohm load
• Output Connectors:1/4″, XLR
• Audio Level Adjust: Balanced: -12 to +9 dBu, line: -24 to +4 dBu (adjustable in 3 dB-steps)
• Range: 300′

Other

• Power Supply: 100–240V/50–60 Hz, 12VDC, 1A
• Width: 8.07″
• Depth: 8.11″
• Height: 1.73″
• Net Weight: 1.92 lbs
