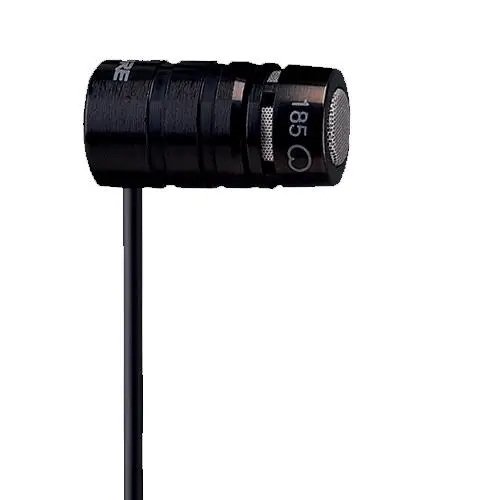

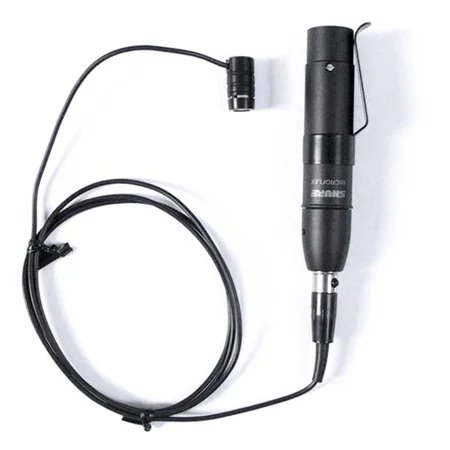

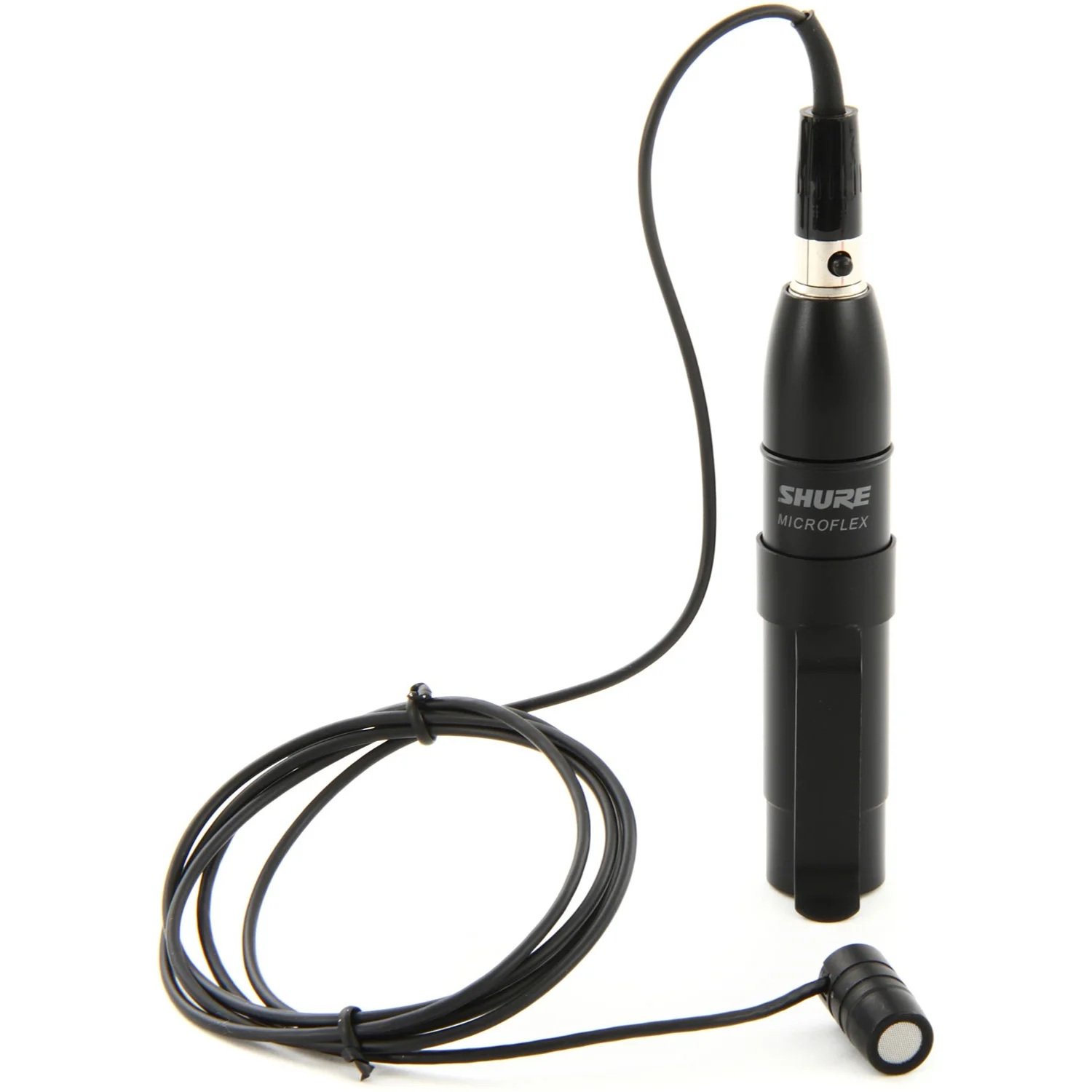

Shure MX185 Microflex Lavalier Microphone

Shure MX185 Microflex Lavalier Microphone Specifications:

• Type: Condenser (electret bias)
• Frequency Response: 50 to 17,000 Hz
• Polar Pattern: Cardioid
• Pickup angle: 130 degrees
• Output Impedance: EIA rated at 150 ohms (180 ohms actual)
• Open Circuit Sensitivity (at 1 kHz, ref. 1V/Pascal*):-35.0 dB (17.0 mV) All settings -12 dB at 0 gain *1 Pascal = 94 dB SPL
• Max SPL: (1kHz at 1%THD, 1 k ohm load): 124.2 dB All settings +6 dB at 0 gain
• Equivalent Output Noise (A-weighted): 28.0 dB
• Signal to Noise Ratio (referenced at 94 dB SPL): 66.0 dB
• Dynamic Range at 1 k ohm load: 96.2 dB, 100 dB at 0 gain
• Power Requirements: 11 to 52 Vdc phantom, 2.0 mA
• Common Mode Rejection: 45.0 dB minimum
• Polarity: Positive sound pressure on diaphragm produces positive voltage on pin 2 relative to pin 3 of output XLR connector
