Allen & Heath SQ 7 48-Channel Digital Mixer

Allen & Heath SQ 7 48-Channel Digital Mixer

Spesifikasi Utama

Type: Digital Mixing Console
Model: SQ-7
Brand: Allen & Heath
Input Channels: 48 Input Channels
Mix Buses: 36 Mix Buses (12 Stereo Mix + LR + 3 Stereo Matrix)
Mic Preamps: 32 + 1 Onboard Mic Preamps
Motorized Faders: 32 + 1 Motorized Faders
Display: 7″ Capacitive Touchscreen
Processing: XCVI FPGA, 96 kHz
Latency: < 0.7 ms
USB Audio Interface: 32×32 USB Audio Interface (96 kHz)
Recording: SQ-Drive USB Multitrack Recording
Effects: 8 Stereo RackExtra FX Engines
Networking: SLink, 64×64 Audio Networking Slot (Dante/Waves/MADI/SLink)
Dimensions: 819 × 515 × 198 mm
Weight: ±17.8 kg

Fitur

• Digital mixer profesional 48-channel.
• XCVI FPGA Processing 96 kHz.
• 32+1 preamp berkualitas tinggi.
• 33 motorized fader dengan 6 layer.
• Layar sentuh kapasitif 7 inci.
• 8 RackExtra FX Engines.
• USB Audio Interface 32×32.
• SQ-Drive untuk perekaman langsung ke USB.
• SLink untuk koneksi stagebox Allen & Heath.
• Slot ekspansi 64×64 untuk Dante, Waves, MADI, atau SLink.

Performa

Allen & Heath SQ-7 menghasilkan kualitas audio profesional beresolusi 96 kHz dengan latensi di bawah 0,7 ms. Didukung engine XCVI FPGA, pemrosesan DSP yang cepat, serta efek RackExtra berkualitas tinggi, mixer ini sangat ideal untuk aplikasi live sound, broadcast, recording, dan instalasi audio profesional.

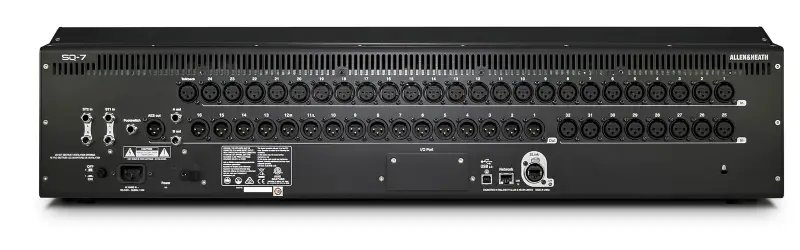

Konektivitas

• 32 × XLR Mic Input
• 2 × Stereo Line Input
• 16 × XLR Line Output
• 2 × TRS Line Output
• AES Digital Output
• USB Type-B (32×32 Audio Interface)
• USB Type-A (SQ-Drive Recording)
• SLink Port
• 64×64 Audio Networking Slot
• Ethernet (RJ45)
• Headphone Output
• Footswitch Input

Kelengkapan

• 1 Unit Allen & Heath SQ-7 Digital Mixer
• Power Cable
• Dust Cover
• User Manual
