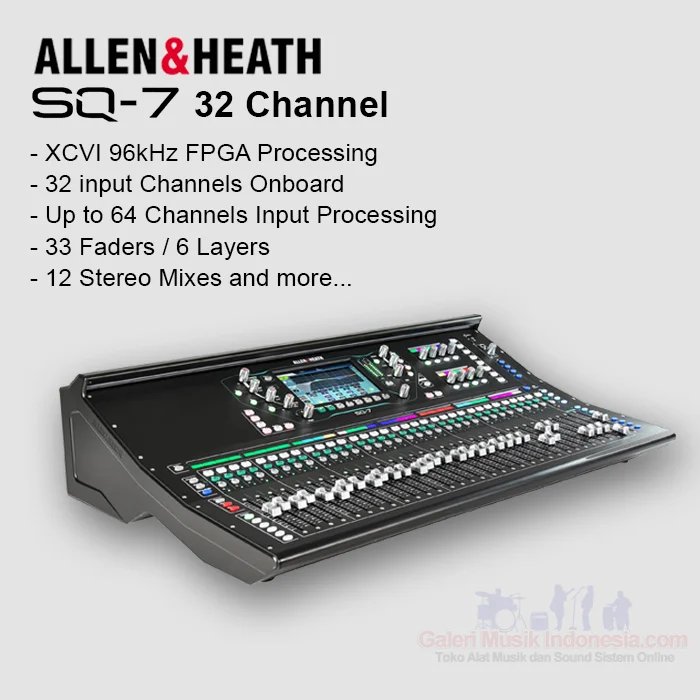

Allen & Heath SQ 7 32-Channel Digital Mixer

Allen & Heath SQ 7 32-Channel Digital Mixer

Spesifikasi Utama

Type: Digital Mixing Console
Model: SQ-7
Brand: Allen & Heath
Input Channels: 48 Input Channels
Mix Buses: 36 Mix Buses (12 Stereo Mix + LR + 3 Stereo Matrix)
Mic Preamps: 32 + 1 Built-in Mic Preamps
Motorized Faders: 32 + 1 Motorized Faders
Display: 7″ Capacitive Touchscreen
Processing: XCVI FPGA Core, 96 kHz
Latency: <0.7 ms
USB Audio Interface: 32×32 USB Audio Interface (96 kHz)
Recording: SQ-Drive USB Multitrack Recording
Effects: 8 Stereo RackExtra FX Engines
Networking: SLink Port, 64×64 Audio Networking Slot
Dimensions: 819 × 514.9 × 198 mm
Weight: ±17.8 kg

Fitur

• Digital mixer profesional 48-channel.
• XCVI FPGA 96 kHz processing.
• 32+1 preamp berkualitas tinggi.
• 33 motorized fader dengan 6 layer.
• Layar sentuh kapasitif 7 inci.
• 8 RackExtra FX Engines.
• USB Audio Interface 32×32.
• SQ-Drive untuk perekaman langsung ke USB.
• SLink untuk koneksi stagebox Allen & Heath.
• Slot ekspansi 64×64 (Dante, Waves, MADI, SLink).

Performa

Allen & Heath SQ-7 menghadirkan kualitas audio resolusi tinggi 96 kHz dengan latensi di bawah 0,7 ms. Didukung engine XCVI FPGA dan prosesor efek RackExtra, mixer ini sangat ideal untuk aplikasi live sound profesional, recording, broadcast, maupun instalasi audio berskala besar.

Konektivitas

• 32 × XLR Mic Input
• 2 × Stereo Line Input
• 16 × XLR Output
• 2 × TRS Output
• USB Type-B (32×32 Audio Interface)
• USB Type-A (SQ-Drive Recording)
• SLink Port
• Audio Networking Expansion Slot
• AES Digital Output
• Ethernet
• Headphone Output

Kelengkapan

• 1 Unit Allen & Heath SQ-7 Digital Mixer
• Power Cable
• Dust Cover
• User Manual
