Spesifikasi 2ND Presonus Firebox Audio Interface

2ND Presonus Firebox Audio Interface

The FIREBOX is a complete 24-Bit/96k personal recording studio combining two high quality PreSonus microphone/instrument preamplifiers, 24-Bit/96k sample rate and Steinberg's Cubase LE 48-track recording software. The FIREBOX is the perfect hardware and software combination for a powerful professional-quality and compact computer-based studio.

The FIREBOX is the most professional-quality mobile interface in its class delivering the following

• Higher-quality analog to digital converters (Dynamic Range 110dB)
• Class-A microphone preamplifiers - delivers more musical recording
• Ultra wide frequency response (10 - 50kHz)
• Road ready rugged build quality - metal chassis
•

Hardware

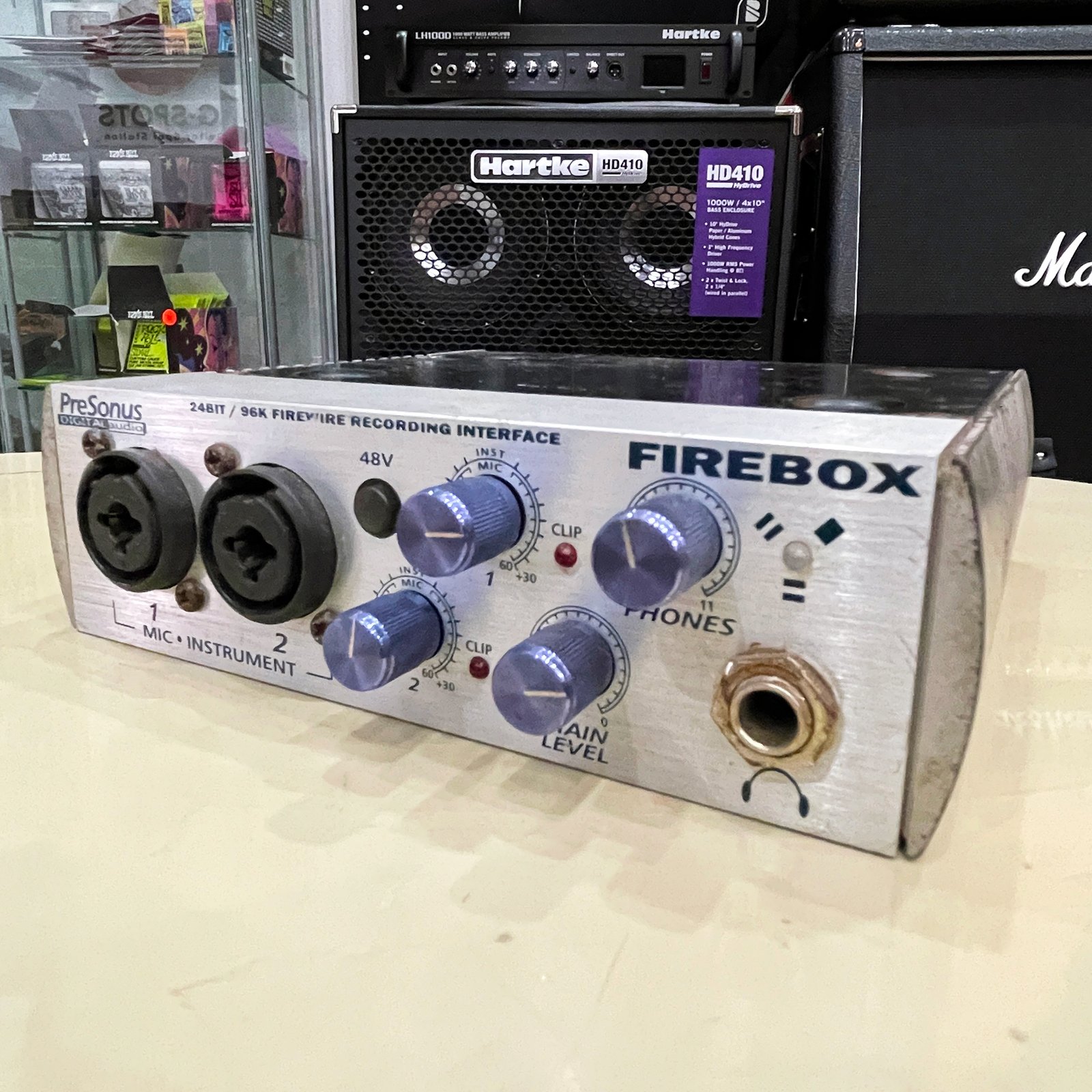

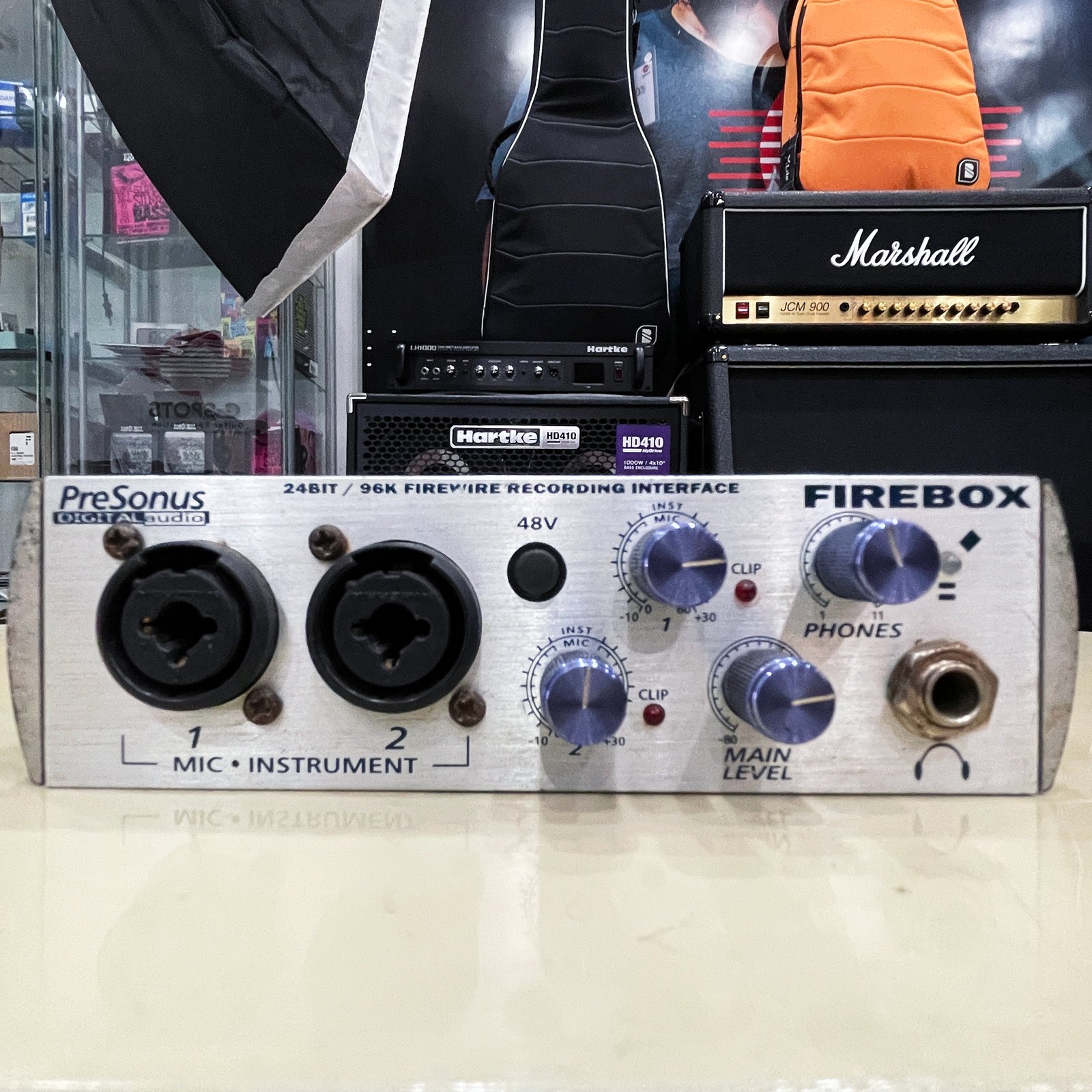

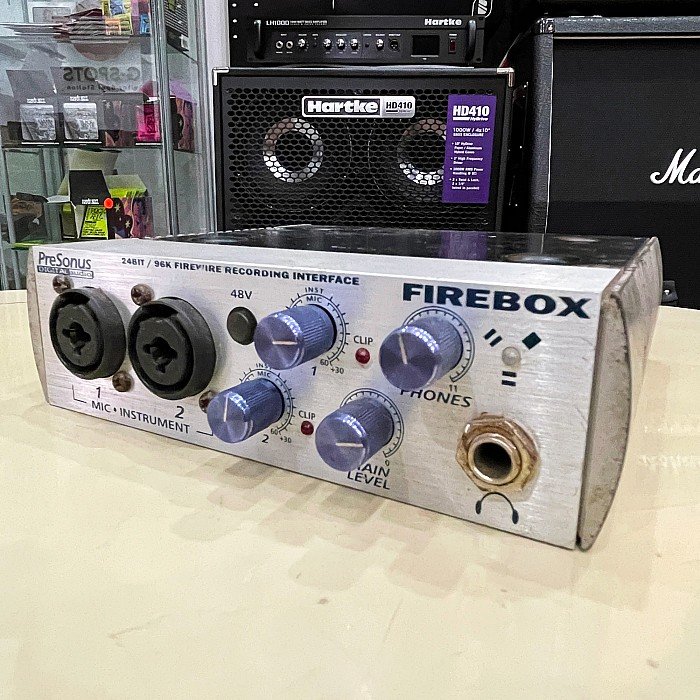

The FIREBOX has the highest record/playback track count of its size with the ability to record six inputs and playback through ten outputs simultaneously all at pro-quality 24-bit/96kHz. Two ultra-low noise high-headroom microphone/instrument preamplifiers with 48V phantom power are on the front panel for quickly and easily connecting your favorite microphones and instruments. The FIREBOX also includes a high quality stereo headphone output with volume adjustment on the front panel. The headphone output has its own two-channel driver stream which can be used as a separate stereo bus or two-channel output giving you the ability to send a cue mix to the headphone output and a main mix to the main output.

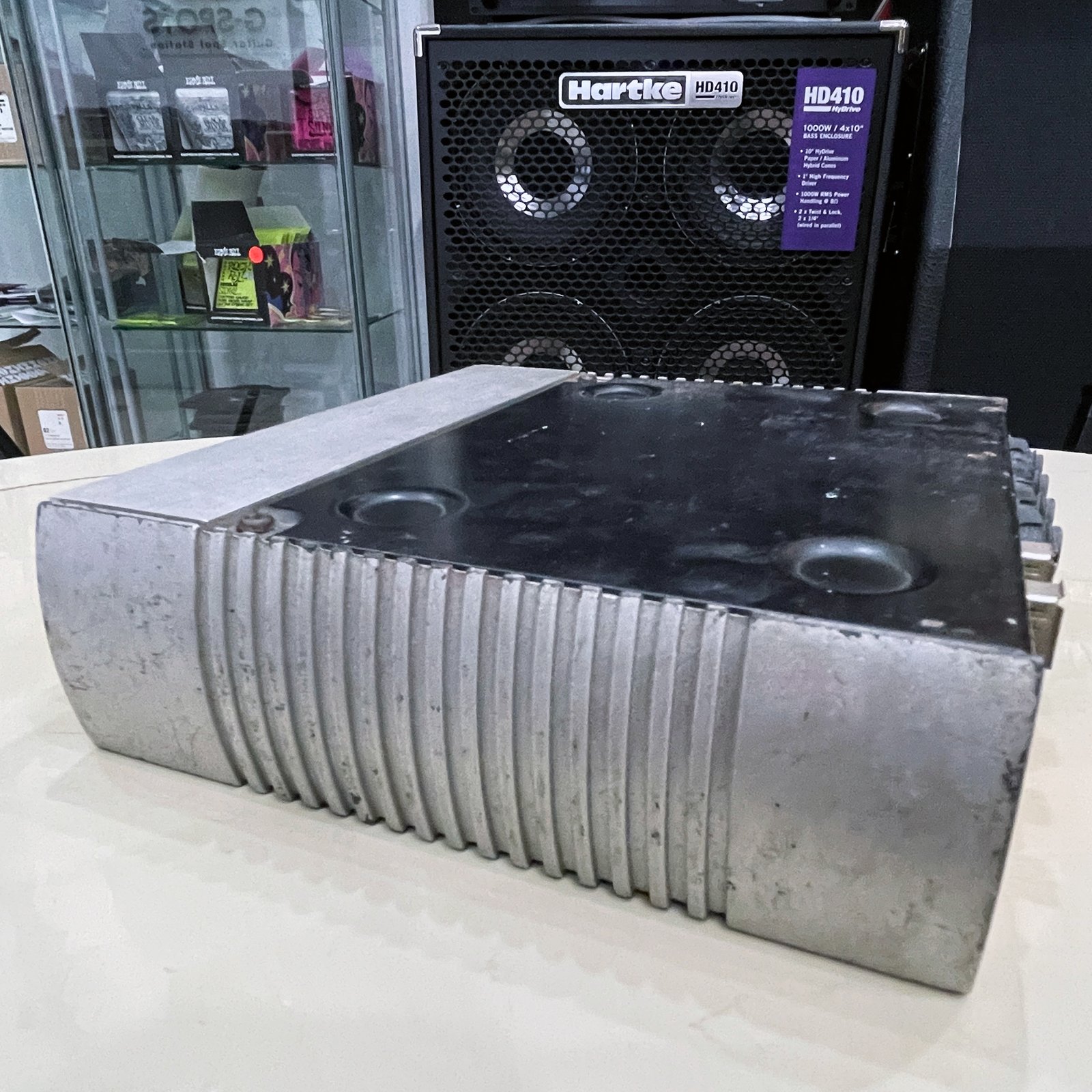

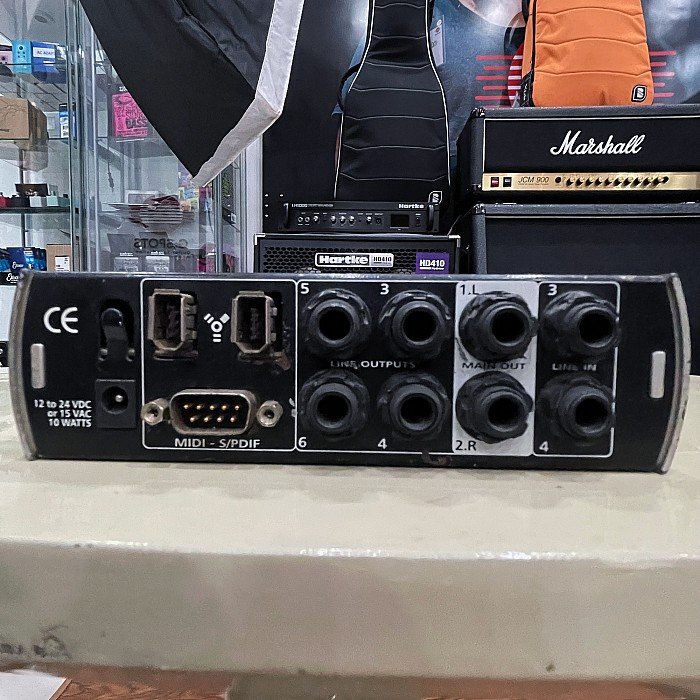

Two additional balanced TRS line inputs are located on the rear of the FIREBOX along with six balanced TRS line outputs. Two channels of S/PDIF input/output and MIDI input/output are also included via DB9 breakout cable. A software router/mixer is also included for further flexibility and power. The 1/3U-wide metal chassis of the FIREBOX is designed to fit the MAXRACK rack-mounting system from PreSonus and can be racked with the TubePRE, COMP16, EQ3B and HP4 for a neat and compact computer recording system.

Specifications

• High-Speed FireWire Network Audio Interface
• Plug and play FireWire (IEEE 1394) audio interface
• 24-Bit / 44.1, 48, 88.2, 96K sample rate
• Record/playback 6 inputs/10 outputs at 24-bit/96K
• 2 PreSonus microphone/instrument preamplifiers
• 2 analog line inputs, 6 analog line outputs
• S/PDIF input/output
• MIDI input/output
• Low latency monitoring
• Headphone output
• Powered via FireWire bus or externally
• Software router/mixer
• Windows and Macintosh compatible
• Fits MAXRACK rack mounting system
• FREE Cubase LE audio production software
