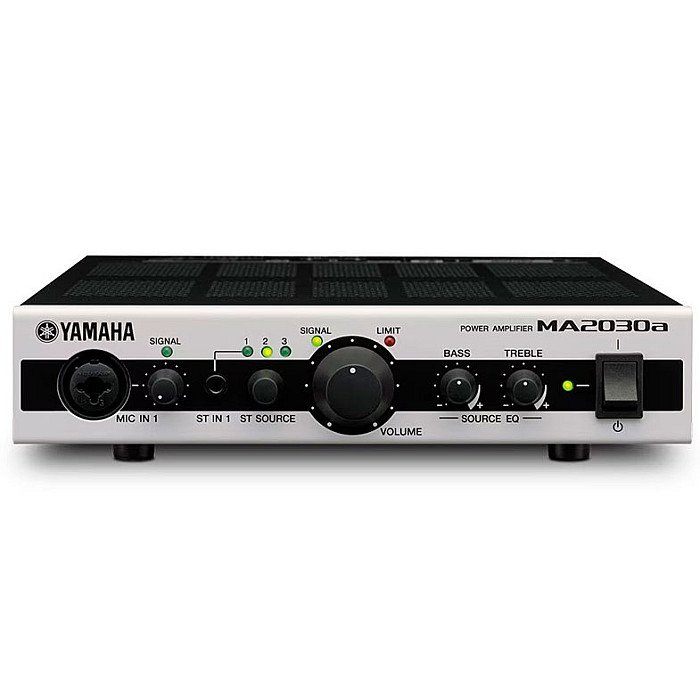

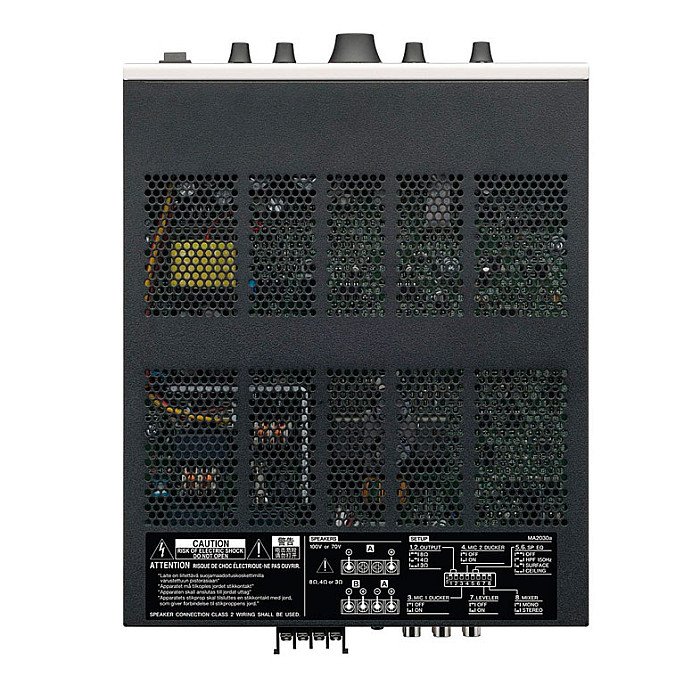

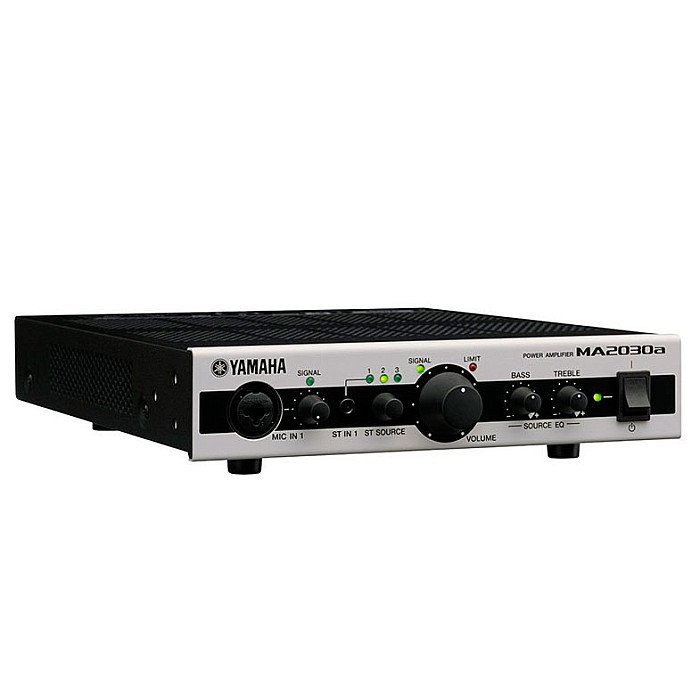

Yamaha MA2030a Switchable 30W and 60W Compact Power Amplifier

Spesifikasi Yamaha MA2030a Switchable 30W and 60W Compact Power Amplifier

Yamaha MA2030a Switchable 30W and 60W Compact Power Amplifier

Compact Power Amp with Simple User Control

With quick, easy setup and intuitive operation, the MA PA series compact power amplifiers make now a great time to power up your commercial space. The MA2030a and PA2030a are ideal audio solutions for retail stores, restaurants, classrooms or public facilities such as hospitals. The MA2120 and PA2120 are suitable for broader applications requiring greater power output as well as functional and flexible DSP and zone control capabilities. All models are very affordable and have an unobtrusive design but efficient and flexible performance. The MA2030a and MA2120 offer mixing capabilities with EQ (Bass/Treble) controls for sound sources, as well as advanced DSP technology from Yamaha Professional Audio. Whether providing background music for a cafe or restaurant, or for a conference room or other application that requires a microphone input, the MA/PA Series amplifiers are simple but feature-rich and powerful enough to create ideal commercial audio.

Powerful everyday use with simple controls
The MA2030a boasts a convenient 1U rack size, making it an easy addition to nearly any audio setup. Under its metal chassis lies a unique I/O, allowing for two mic inputs and three selectable stereo inputs — a perfect combo for music playback and microphone applications. The front panel of the MA2030a bears signal, stereo source, and master volume controls, making signal management easy and effective. Plus, bass and treble EQ knobs ensure you can iron out your sound to perfection before it hits the speakers. Despite delivering ample power to both channels, the MA2030a boasts a surprisingly low amount of energy usage. Thanks to an efficiently-designed class-D amplifier, this power amp minimizes energy consumption while in use, allowing for eco-friendly — and cost-effective — power management. And since there are no cooling fans in the MA2030a’s compact design, you’ll benefit from even less required power, higher reliability, and quiet operation.

Features:

• 2-channel, 30W per-channel power amplifier
• Perfect for music playback and microphone applications
• Lo-Z (30W x 2 channels) and Hi-Z (60W x 1-channel) functionality
• Built-in highpass filter
• Compact 1U rack size fits in nearly any setup
• Conventional cooling system — bottom-to-top airflow
• Advanced DSP functions (Feedback Suppressor, Priority Ducker, Leveler)
• Speaker EQ optimum for Yamaha VXC/VXS series speakers
• Yamaha Eco Product certified with efficient class-D amplifier
•

1. Number of Channels: 2
2. Power Class: Class D
3. Watts/Side @ 8 ohms: 30W
4. Watts/Side @ 4 ohms: 30W
5. 70V/100V Output: 1 x 60W @ 70V, 1 x 60W @ 100V

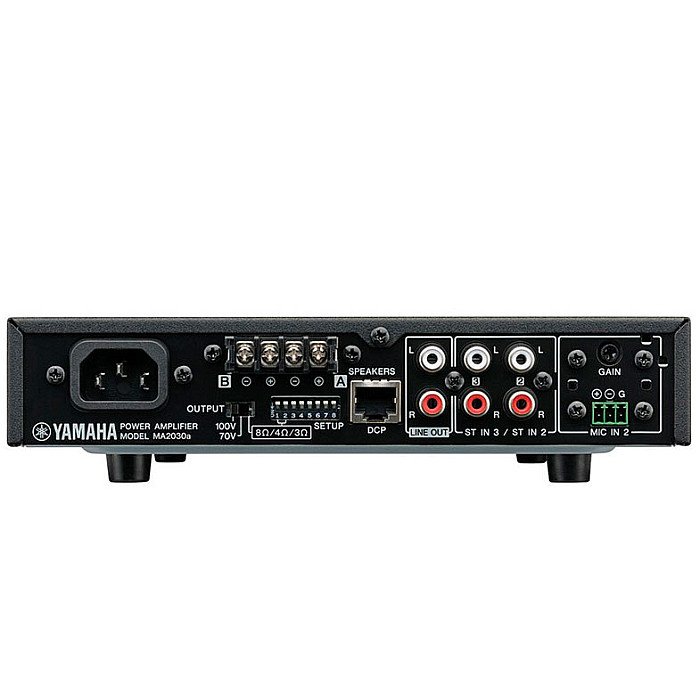

6. Inputs: 1 x XLR-1/4" combo (mic/line), 1 x 3-pin Euroblock, 2 x Dual RCA Stereo
7. Outputs: 2 x Barrier Strip
8. Data I/O: 1 x Ethernet (DCP)
9. Cooling System: Conventional, bottom to up airflow
10. DSP: Yes
11. Filters: Yes
12. Frequency Response: 20Hz-20kHz
13. THD: <0.1%
14. Overload Protection: Yes
15. Rack Spaces: 0.5U
16. Power Source: Standard IEC AC cable
17. Height: 2.1"
18. Depth: 11.4"
19. Width: 8.5"
20. Weight: 4 lbs.
21. Manufacturer Part Number: MA2030a
