P Audio

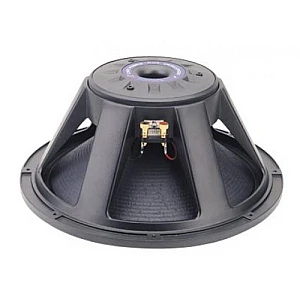

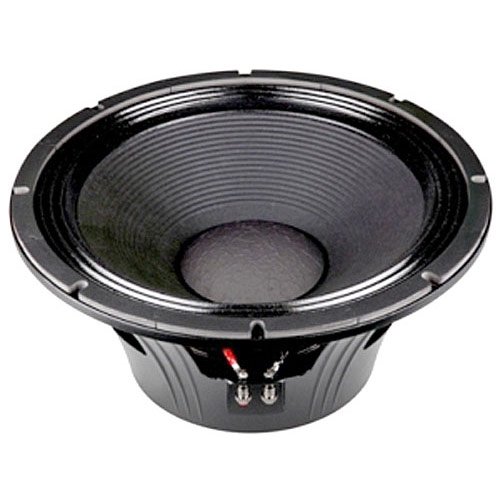

P Audio C18 650EL 18 Inch 650W 8 Ohm Loudspeaker Driver
Rp.2.600.000,00
Tersedia
Spesifikasi P Audio C18 650EL 18 Inch 650W 8 Ohm Loudspeaker Driver
P Audio C18 650EL 18 Inch 650W 8 Ohm Loudspeaker Driver
The P Audio C18-650EL is a high output low frequency transducer. The C18-650EL is an upgraded design that features many of P Audio\'s new technologies and performance upgrades. The 18 inch (457mm) diameter piston will produce extremely high sound pressure levels at very low frequencies and is ideal for high level deep bass and sub woofer response in both live sound and recorded music venues. The transducer uses high energy ferrite magnetics to achieve a very high acoustic output to weight ratio.
The C18-650EL employs a large 4 inch (101.6mm) diameter voice coil that provides an AES rated 1200 watts of continuous power handling and a full 4800 watts of peak rated power handling when sufficient amplifier headroom is available. The transducer is optimized for use in properly tuned vented enclosures and will provide maximal reliability when both a vented enclosure and active high pass filtering are employed. The C18-650EL utilizes P Audio\'s Auto Balanced Cooling (ABC) technology to not only improve transducer power handling and reliability but to also increase power compression performance by carefully balancing and directing airflow to critical areas.
The voice coil design is a bobbin wound geometry with P Audio\'s rectangular wire technology to improve conversion efficiency and provide a large crosssectional area for superior cooling.
The transducer employs magnetic flux demodulation devices in the structure to increase fidelity and sonic accuracy. The system suspension has been designed specifically for high linear displacement and extended low frequency response. The double spider design further enhances system mechanical control and reliability. The cone has been treated with a conformal coating designed to provide additional mechanical damping and moisture resistance.
Specifications
- Nominal Basket Diameter...............18"
- Impedance......................................8 ohms
- RMS Power Rating..........................1,200 Watts
- Program Power................................2,400 Watts
- Frequency Response.......................30Hz - 800Hz
- Sensitivity (1W/1m)...........................98dB
- Voice Coil Diameter...........................3.9" / 99.3mm
Mounting Information
- Overall Diameter.........................18.74" / 476.1mm
- Bolt Circle Diameter.....................17.72" / 450mm
- Baffle Cutout Diameter.................16.86" / 428.2mm
- No. Of Mounting Holes.................8
- Overall Depth..............................8.84" / 224.6mm
- Net Weight..................................29.3 lb. / 13.3 kg.
- Shipping Weight...........................32.4 lb. / 14.7 kg.
P Audio C18 650EL 18 Inch 650W 8 Ohm Loudspeaker Driver
Harga:
Rp.2.600.000,00
Spesifikasi P Audio C18 650EL 18 Inch 650W 8 Ohm Loudspeaker Driver
P Audio C18 650EL 18 Inch 650W 8 Ohm Loudspeaker Driver
The P Audio C18-650EL is a high output low frequency transducer. The C18-650EL is an upgraded design that features many of P Audio\'s new technologies and performance upgrades. The 18 inch (457mm) diameter piston will produce extremely high sound pressure levels at very low frequencies and is ideal for high level deep bass and sub woofer response in both live sound and recorded music venues. The transducer uses high energy ferrite magnetics to achieve a very high acoustic output to weight ratio.
The C18-650EL employs a large 4 inch (101.6mm) diameter voice coil that provides an AES rated 1200 watts of continuous power handling and a full 4800 watts of peak rated power handling when sufficient amplifier headroom is available. The transducer is optimized for use in properly tuned vented enclosures and will provide maximal reliability when both a vented enclosure and active high pass filtering are employed. The C18-650EL utilizes P Audio\'s Auto Balanced Cooling (ABC) technology to not only improve transducer power handling and reliability but to also increase power compression performance by carefully balancing and directing airflow to critical areas.
The voice coil design is a bobbin wound geometry with P Audio\'s rectangular wire technology to improve conversion efficiency and provide a large crosssectional area for superior cooling.
The transducer employs magnetic flux demodulation devices in the structure to increase fidelity and sonic accuracy. The system suspension has been designed specifically for high linear displacement and extended low frequency response. The double spider design further enhances system mechanical control and reliability. The cone has been treated with a conformal coating designed to provide additional mechanical damping and moisture resistance.
Specifications
- Nominal Basket Diameter...............18"
- Impedance......................................8 ohms
- RMS Power Rating..........................1,200 Watts
- Program Power................................2,400 Watts
- Frequency Response.......................30Hz - 800Hz
- Sensitivity (1W/1m)...........................98dB
- Voice Coil Diameter...........................3.9" / 99.3mm
Mounting Information
- Overall Diameter.........................18.74" / 476.1mm
- Bolt Circle Diameter.....................17.72" / 450mm
- Baffle Cutout Diameter.................16.86" / 428.2mm
- No. Of Mounting Holes.................8
- Overall Depth..............................8.84" / 224.6mm
- Net Weight..................................29.3 lb. / 13.3 kg.
- Shipping Weight...........................32.4 lb. / 14.7 kg.
