P Audio
P-Audio P150-2226v3 Low Frequency Transducer
Rp.2.925.000,00
Tersedia
Spesifikasi P-Audio P150-2226v3 Low Frequency Transducer

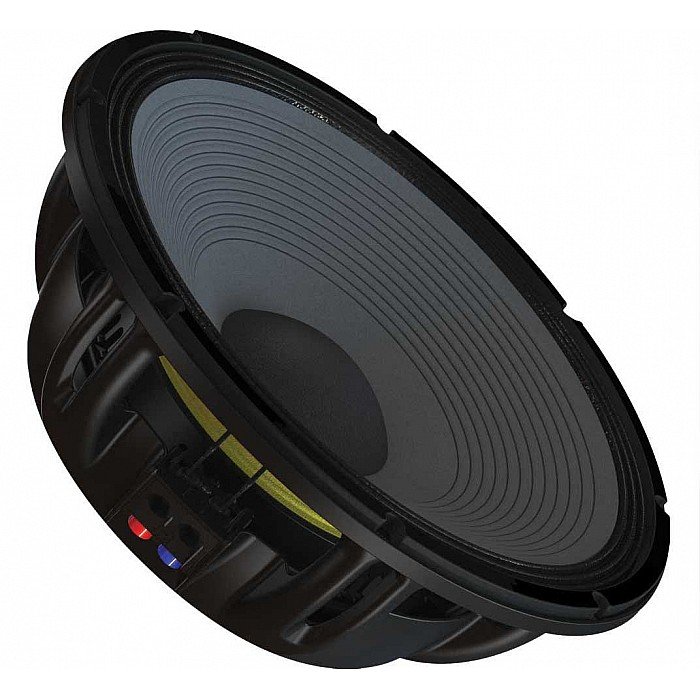

P-Audio P150-2226v3 Low Frequency Transducer
The P.Audio P150-2226v3 is a high output low frequency to mid range transducer designed with a vintage voicing. The P150-2226v3 is an upgraded design that features many of P.Audios new technologies and performance upgrades. The 15 inch (381mm) diameter piston will produce extremely high sound pressure levels at from low frequencies thru the upper mid range and is ideal for high level two way and three way sound reinforcement systems. The P150-2226v3 is well suited for both live sound and recorded music venues. The transducer uses high energy ferrite magnetics to achieve a very high acoustic output.
The P150-2226v3 employs a large 3.9 inch (99.3mm) diameter voice coil and. has been upgraded to an AES rated 1000 watts of continuous power handling and a full 4000 watts of peak rated power handling when sufficient amplifier headroom is available. The P150-2226v3 utilizes P.Audios Auto Balanced Cooling (ABC) technology to not only improve transducer power handling and reliability but to also increase power compression performance by carefully balancing and directing airflow to critical areas.
The voice coil design is bobbin wound geometry with P.Audios rectangular wire technology to improve conversion efficiency and provide a large crosssectional area for superior cooling.
The transducer employs magnetic flux demodulation devices in the structure to increase fidelity and sonic accuracy. The system suspension has been designed specifically for high linear displacement and extended low frequency response.
FEATURES
- 3.9” Large FormatVoice Coil
- 4000 Watts Peak Power Handling
- Active Balanced Cooling
- Integrated Demodulation Rings
- Ferrite Magnetics
- Precision Rectangular Ribbon Wire Geometry
- Die Cast Aluminum Chassis
SPECIFICATIONS
- Nominal diameter 381 mm/15 in
- Power rating 1000 W(AES)
- Nominal impedance 8Ω
- Sensitivity 97 dB
- Frequency range 40-2000 Hz
- Chassis type Cast aluminum
- Magnet type Ferrite
- Magnet weight 2.85 kg/100.6 oz
- Voice coil diameter 99.3 mm/4 in
- Coil material AL-R
- Former material Glass fiber
- Cone material Paper
- Surround material Cloth
- Suspension Single
- X-max 5.5 mm/0.22 in
- Gap depth 8 mm/0.31 in
- Voice coil winding width 19 mm/0.75 in
- Packing dimension WxDxH (mm) 430 x 430 x 200
- Net weight 10.4 kg/22.9 lb
- Shipping weight 11.4 kg/25.1 lb
P-Audio P150-2226v3 Low Frequency Transducer
Harga:
Rp.2.925.000,00
Spesifikasi P-Audio P150-2226v3 Low Frequency Transducer
P-Audio P150-2226v3 Low Frequency Transducer
The P.Audio P150-2226v3 is a high output low frequency to mid range transducer designed with a vintage voicing. The P150-2226v3 is an upgraded design that features many of P.Audios new technologies and performance upgrades. The 15 inch (381mm) diameter piston will produce extremely high sound pressure levels at from low frequencies thru the upper mid range and is ideal for high level two way and three way sound reinforcement systems. The P150-2226v3 is well suited for both live sound and recorded music venues. The transducer uses high energy ferrite magnetics to achieve a very high acoustic output.
The P150-2226v3 employs a large 3.9 inch (99.3mm) diameter voice coil and. has been upgraded to an AES rated 1000 watts of continuous power handling and a full 4000 watts of peak rated power handling when sufficient amplifier headroom is available. The P150-2226v3 utilizes P.Audios Auto Balanced Cooling (ABC) technology to not only improve transducer power handling and reliability but to also increase power compression performance by carefully balancing and directing airflow to critical areas.
The voice coil design is bobbin wound geometry with P.Audios rectangular wire technology to improve conversion efficiency and provide a large crosssectional area for superior cooling.
The transducer employs magnetic flux demodulation devices in the structure to increase fidelity and sonic accuracy. The system suspension has been designed specifically for high linear displacement and extended low frequency response.
FEATURES
- 3.9” Large FormatVoice Coil
- 4000 Watts Peak Power Handling
- Active Balanced Cooling
- Integrated Demodulation Rings
- Ferrite Magnetics
- Precision Rectangular Ribbon Wire Geometry
- Die Cast Aluminum Chassis
SPECIFICATIONS
- Nominal diameter 381 mm/15 in
- Power rating 1000 W(AES)
- Nominal impedance 8Ω
- Sensitivity 97 dB
- Frequency range 40-2000 Hz
- Chassis type Cast aluminum
- Magnet type Ferrite
- Magnet weight 2.85 kg/100.6 oz
- Voice coil diameter 99.3 mm/4 in
- Coil material AL-R
- Former material Glass fiber
- Cone material Paper
- Surround material Cloth
- Suspension Single
- X-max 5.5 mm/0.22 in
- Gap depth 8 mm/0.31 in
- Voice coil winding width 19 mm/0.75 in
- Packing dimension WxDxH (mm) 430 x 430 x 200
- Net weight 10.4 kg/22.9 lb
- Shipping weight 11.4 kg/25.1 lb
