P Audio P Audio 2 Line-6 600W Portable Sub/Satellite Powered Speaker System P Audio 2 Line-6 600W  Portable Sub/Satellite Powered Speaker System

Spesifikasi P Audio 2 Line-6 600W Portable Sub/Satellite Powered Speaker System

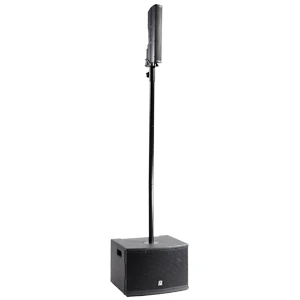

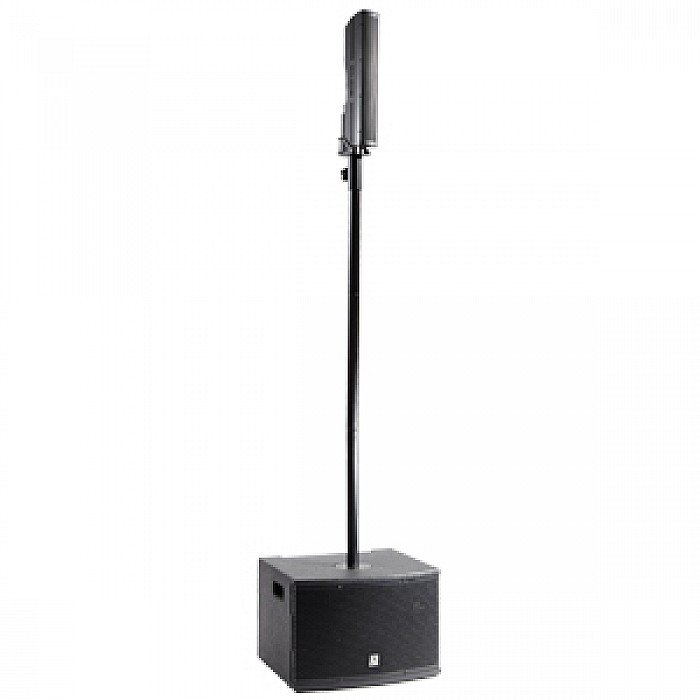

P Audio 2 Line-6 600W Portable Sub/Satellite Powered Speaker System

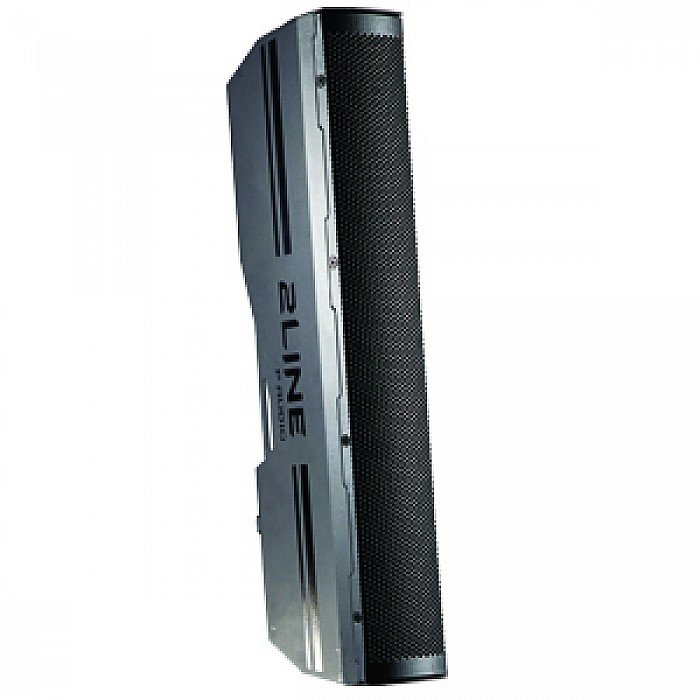

2Line-6


The P.Audio 2LINE-6 is an six element vertical column array. The 2LINE-6 exhibits progressive directivity control and is an excellent choice for use in reverberant spaces where very controlled and defined vertical radiation is required. The enclosure is a passive design that features high power handling and reliability. The vertical column array consists of six high output, high excursion two inch (51mm) closely spaced dynamic transducers. The close physical spacing insures controlled polar lobing and tight pattern control. The acoustic performance of the 2LINE-6 make it an ideal choice for houses of worship, theaters, commercial venues, airports, and gathering spaces of all sizes. The P.Audio 2LINE-6 is available in both black and white finishes, and is a heavy duty steel enclosure, with steel grill. The cabinet is both zinc plated and powder coated to ensure durability. The input is 2 x Neutrik speakon connectors to allow easy daisy chaining of cabinets.

The 2LINE-6 features a rear mounted switch for changing system impedance between 4 and 16 ohms. The 4 ohm setting is intended for use when maximum amplifier power is to be delivered to a single cabinet, or for when the 2LINE-6 is used with the accompanying 2LINE-Sub. The 16 ohm setting allows 4 cabinets to be parallel linked, when a 4 ohm stable amplifier is used. The 16 ohm setting can be used with the accompanying 2LINE-Sub for lower power situations. The 2LINE-Sub high performance subwoofer is optimised for accurate mid-low reproduction, allowing more headroom for the 2LINE-6 column loudspeaker. Without the subwoofer, it is highly recommended that a high pass filter is set at 200Hz (24dB/oct) to ensure no damage to the 2LINE-6 loudspeaker.

P.Audio offers a variety of rigging accessories for use within the 2LINE system. When used with the accompanying subwoofer, the 2L-Pole and 2L-PSA allow the 2LINE-6 enclosure to be mounted above the subwoofer at a fixed height. The 2L-PSA features 2 tilt settings  either 0 degrees or 10 degrees down tilt to optimise the radiation for the acoustic space. A single or two column array may be mounted using the 2L-PT and 2L-LB brackets. The 2L-PT allows solid wall mounting with up to 60 degrees pan capability and up to 15 degrees down-tilt capability. The 2L-LB can then be used to join two enclosures together, with inter-cabinet tilt capability up to 15 degrees.

FEATURES

  • High directivity vertical column array
  • 6 closely spaced 2" radiating elements
  • Neodymium based transducers
  • Switchable 4 ohm or 16 ohm operation
  • Multiple rigging accessories
  • High power handling transducer elements
  • GENERAL SPECIFICATIONS

      Frequency response  200Hz-20kHz on axis
      Power Handling  150 Watt continuous
      (600 Watts peak)
      Sensitivity @ 1W 1M  94 dB
      Nominal Imedamce  4Ω or 16Ω
      (User switchable)
      Coverage  120 degrees horizontal
      10 degrees min vertical
      Dimension (HxWxD)  380 x 62 x 102.9 mm
      15 x 2.4 x 4 in
      Weight  2.1 kg / 4.6 lbs
      Available accessories  2Line-Sub, 2L-PT
      2L-Pole, 2L-LB, 2L-PSA

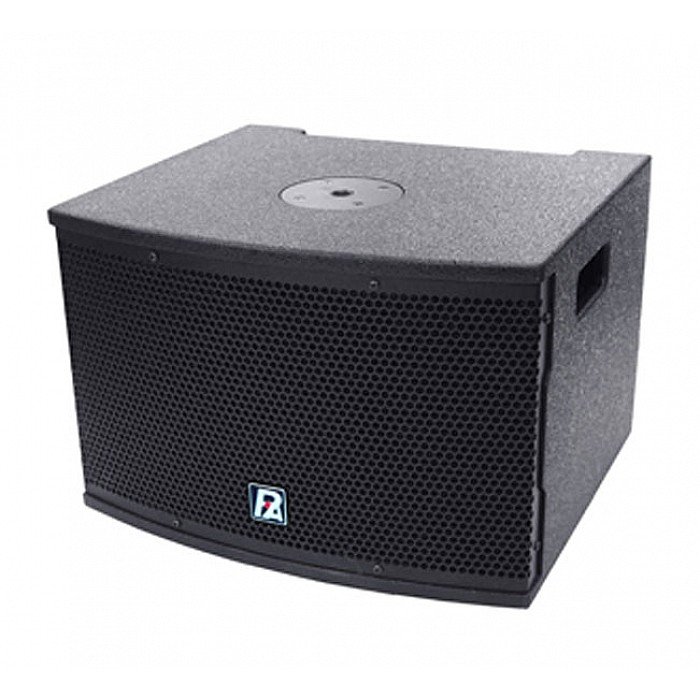

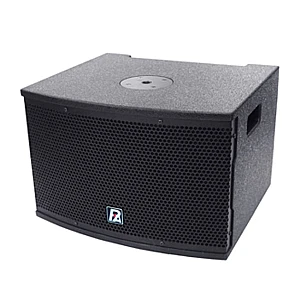

2Line-Sub


The P.Audio 2LINE-Sub is an actively driven 10 wooden subwoofer enclosure. The 2LINE-Sub is ideal for use in both portable and fixed installation environments where low frequency extension is desired. The amplifier is a class D design, with universal Switch Mode Power Supply (SMPS). The amplifier output is 300w to drive the 10 transducer component. The amplifier also has a 300w (4 ohm) output available to drive the 2LINE-6 column loudspeaker or other loudspeaker of choice. The 8 switchable EQ presets found on the amplifier panel of the 2LINE-Sub allow different voicing modes with the 2LINE-6, including 1 preset optimised for use with spoken word. For ease of use, the XLR input on the 2LINE-Sub has switchable sensitivity to allow either line level signals or a microphone to be plugged straight into the system. A THRU XLR output is also present, to allow easy system scalability.

The cabinet construction is of a heavy duty wood, with thick splatter coat of paint for ultimate durability and easy touch up of cosmetics. The transducer component is a ferrite 10woofer with highly linear suspension design to ensure low distortion and high excursion capabilities. Two recessed handles on the side of the cabinet allow easy portability. The highly rigid steel grill ensures the transducer is protected at all times. 4 Rubber feet on the bottom of the enclosure ensure the sub will not move, and the M20 thread speaker pole mount on the top of the enclosure allows easy system set up when used with the 2L-Pole and 2L-PSA accessories, in order to create a well-balanced 2LINE System.

FEATURES

  • 10 Actively Driven Subwoofer Enclosure
  • Speaker Level Output for easy system set up
  • Optimised for use with the 2LINE
  • 6 Column Loudspeaker
  • Universal, very stable SMPS and Class D amplification with on board DSP
  • 8 presets for switchable performance in every situation
  • Solid wood construction
  • Small, yet powerful system
  • GENERAL SPECIFICATIONS

    Acoustic Specifications
      -3dB Response  50Hz (Upper Limit Preset Variable)
      -10dB Response  45Hz (Upper Limit Preset Variable)
      Max Cont. SPL  119dB
      Max Peak SPL  122dB
    Electrical Specifications
      Input  Balanced XLR Input
      THRU  Balanced XLR
      Output  Speaker Level locking connector
      System Level Control  Rotating knob - infinity to 0dB
      Power Output  300w RMS (600w Peak) at 1% THD
      to onboard 10" transducer
      300w RMS (600W Peak) at
      1% THD to output connector
      Amplifier type  Class D with SMPS
      Transducer  10" Ferrite with Paper Cone
      Preset EQ  8 Presets
      Protection  RMS Limiting, Peak Limiting,
      power supply protection,
      amplifier thermal protection
      Indicators  Combined signal/clip LED,
      power LED
    Design
      Cabinet  Solid wooden construction with
      high quality splatter paint
      Handles  2
      Pole Mount  M20 on top of cabinet
      Dimensions
      (HxWxD)
      312 x 450 x397.3 mm
      12.3 x 17.7 x 15.6 in
      Weight   15 kg / 33.1 lbs
Rp.7.850.000,00Tersedia

P Audio 2 Line-6 600W Portable Sub/Satellite Powered Speaker System

Merek: P Audio
Kode Produk: P Audio 2 line 6
Ketersediaan: Tersedia
Harga:
Rp.7.850.000,00
