Mipro ACT-312B/2*ACT-32H Wireless Microphone Mipro ACT-312B/2*ACT-32H Wireless Microphone

Spesifikasi Mipro ACT-312B/2*ACT-32H Wireless Microphone

Mipro ACT-312B/2*ACT-32H Wireless Microphone

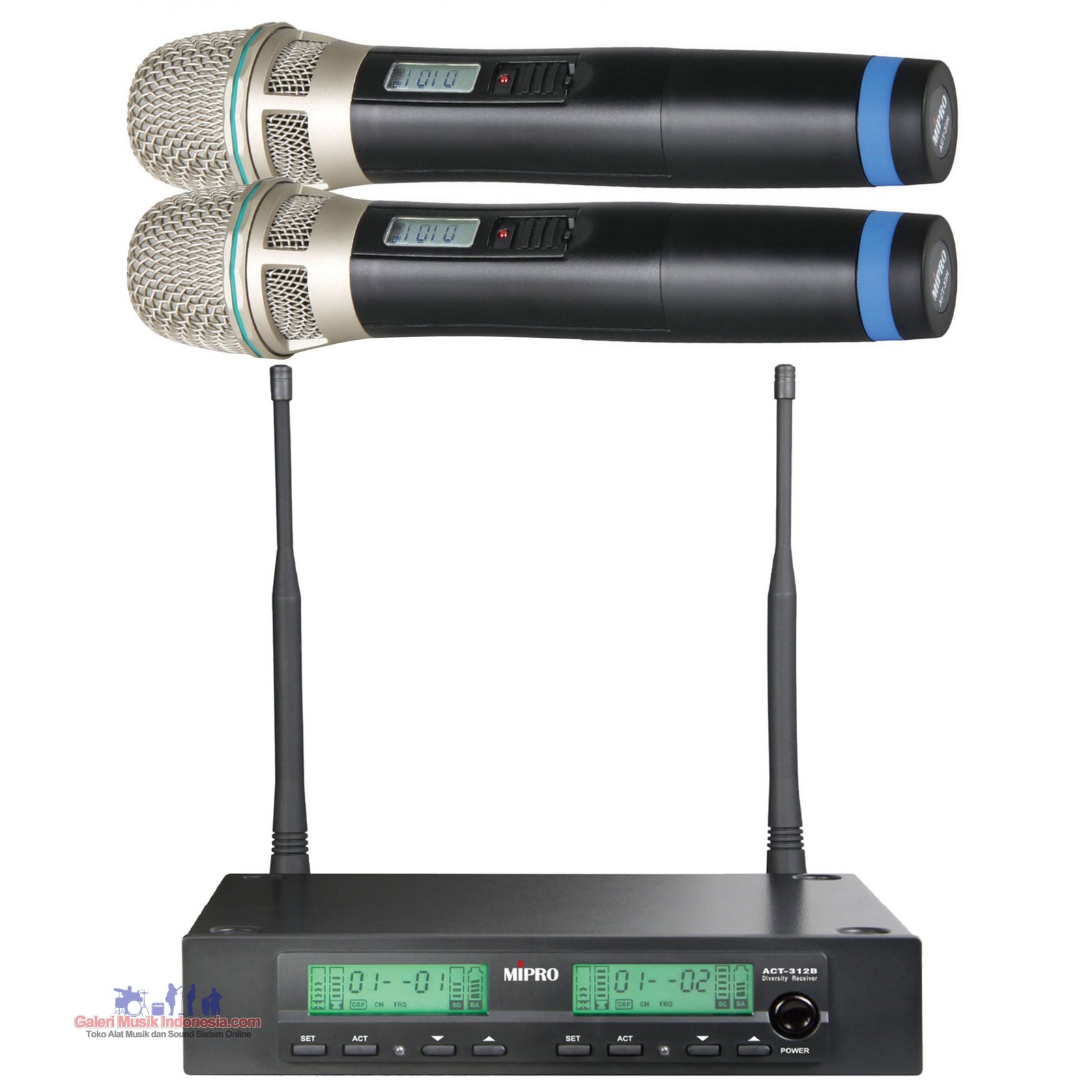

The Mipro ACT-312B / ACT-32H wireless microphone system comprises of one ACT-312B dual channel UHF radio mic receiver and two ACT-32H hand held wireless microphone transmitters.

The system operates on Channel 38 which requires a licence.

Automatic Channel Targeting (ACT) feature makes system set up extremely simple by matching and synchronising transmitters and receiver at the press of a button.

1U high, half rack width - rack mountable using the optional FB-71 or FB-72 rack mount ears - see related products.

  • EIA standard 1/2U metal receiver.
  • Receiver provides bias for booster where MIPRO antenna systems can be added for extended receiving range and stability.

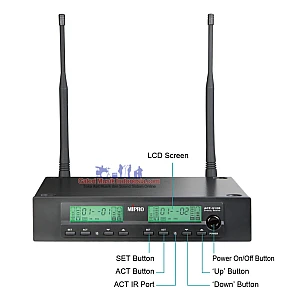

  • Backlit LCD displays group, channel, frequency, RF level, antenna selection, AF level, battery level indicator, interference warning indicator, and panel lock indicator.
  • A lit green light indicates a working mode when receiver detects an incoming signal or buttons touched. Light dims automatically when receiver is idle for about 10 seconds.

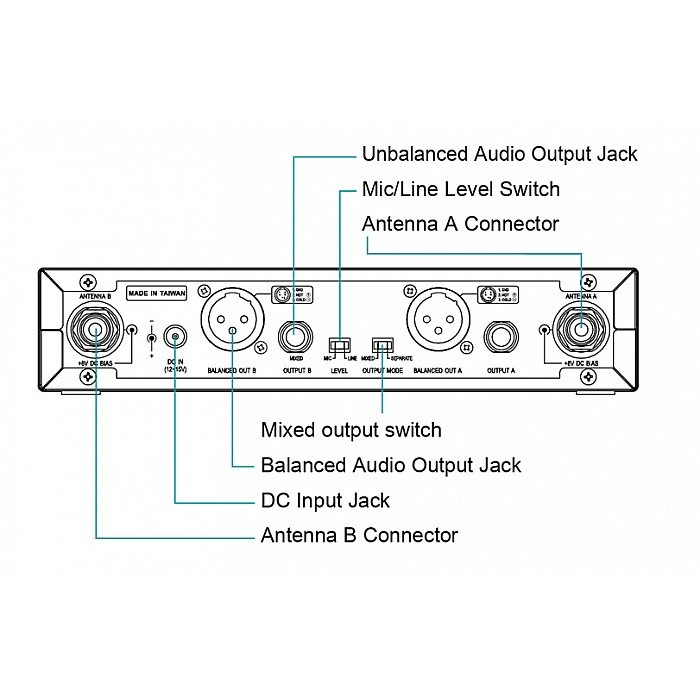

  • Balanced XLR / unbalanced 1/4 " audio output jack, output level switch and DC input are on the rear panel. One mixed-output switch is available for dual-channel receivers.
  • High efficiency and low spurious PLL circuitry with Auto Scan functioin. Each receiver is presets with 11 groups, Groups 1~6, 7~10 have 8 &16 compatible channels respectively. Up to 8 channels in group 11 can be saved and recalled within 961 user-defined frequencies. A total of 112 preset channels per band.
  • World’s first ACT™ function provides precise and rapid frequency sync to the transmitters.
  • Advanced diversity technology for optimum reception range and reduces signal dropouts and the “PiloTone & NoiseLock” dual-squelch circuits prevent noise interference.
  • Adjustable ‘SQ’ for higher sensitivity to increase receiving distance and lower sensitivity to reduce interference.
  • Industry’s only RF interference warning indicator for ideal SQ level adjustment.
  • DC input socket accepts 12~15V power supply.



The Mipro ACT-32H handheld wireless microphone transmitter has a cardioid condenser pick-up.



  • Robust, lightweight plastic housing.
  • The unique multi-layered metal grille protects the capsule against impact, rolling and pop noise, ensuring clarity of sound.
  • Premium condenser capsules exhibit high fidelity, wide dynamic range, fast transient responses, good feedback rejection, accurate sound image characteristics, transparent sound quality and withstand maximum SPL.
  • Reversible end-cap allows power on/off switch being locked to avoid accidental power-off during performance.
  • Impact-resistant battery compartment holds 2 AA batteries.
  • Backlit LCD displays various parameters and status.
  • Stable PLL circuits. Automatically synchronized with the receiver’s frequency by MIPRO’s patented ACT™ function.
  • Patented “built-in” antenna design.
  • Interchangeable coloured rings for microphone channel identification on stage.
  • High-efficiency circuitry design provides more than 16 hours of operation from 2 AA batteries (depending on the battery quality).





Tech specs:



Channel

Dual

Chassis

EIA-Standard 19" 1/2U

Receiving Mode

Diversity

Frequency Range

UHF 480~934MHz

Antenna

Rear Panel. Detachable.

Preset Channels

112 preset channels.
Group 1-6: 8 compatible channels in each group.
Group 7-10: 16 compatible channels in each group.
Group 11: Up to 8 channels can be saved & recalled.
961 user-defined frequencies in group 11.

Oscillation Mode

PLL Synthesized, Frequency Stability≦±0.005% (-10~+60℃)

Sensitivity

10dBμV, at S/N>80dB

S/N Ratio

>106dB(A)

T.H.D.

<0.5% @ 1kHz

Frequency Response

50Hz~18kHz, with high pass filter.

Squelch

"PiloTone & NoiseLock" dual-squelch circuit.

Audio Output Adjustment

Output level accurately pre-adjusted to equal to the microphone capsule sensitivity.

Maximum Output Level

2-level Switch: Line & Mic

Power Supply

External AC Adapter, 12~15V DC, 1A

Dimensions

210(W)×44(H)×180(D)mm / 8.3(W)x1.7(H)x7.1(D)"

Weight

Approx. 0.95kg / 2.1lbs

Note

Refer to actual product in the event of product discrepancy.
Frequency range and maximum deviation comply with the regulations of different countries.



Hand Held Transmitter Specification

Frequency RangeUHF 480 – 934 MHz
Bandwidth24 MHz
Oscillation ModePLL Synthesized
Channel Set-UpACT Sync
RF Output Power10mW / 30mW (switchable)
Spurious Emissions< -55 dBc
LCD DisplayGroup, Channel, Battery status & error codes
Max. SPL140 dB SPL
Battery Type2 AA alkaline
Operating TimeMin. 12 hours (Low Power)
Current ConsumptionApprox. 92 mA
Dimensions (Ø × L)51 × 234 mm / 2 × 9.2 "
Net WeightApprox. 251 g / 8.9 oz
Rp.8.250.000,00Tersedia

Mipro ACT-312B/2*ACT-32H Wireless Microphone

Kode Produk: Mipro ACT-312B/2*ACT-32H
Ketersediaan: Tersedia
Harga:
Rp.8.250.000,00
Home Credit Instan Kredit Proses Hanya 30 menit.
Mau cicilan tanpa kartu kredit sekarang ANDA BISA...Cukup bawa Fc Ktp / Sim . Kunjungi kami sekarang..
  • 6x Rp.1.593.645,27
  • 9x Rp.1.143.786,27
  • 12x Rp.923.529,18
  • 18x Rp.713.589,28
  • AeonUp to
    24x
  • BCAUp to
    24x
  • MandiriUp to
    24x
  • MastercardUp to
    12x
  • Visa (2006-2014)Up to
    12x

Spesifikasi Mipro ACT-312B/2*ACT-32H Wireless Microphone

Mipro ACT-312B/2*ACT-32H Wireless Microphone

The Mipro ACT-312B / ACT-32H wireless microphone system comprises of one ACT-312B dual channel UHF radio mic receiver and two ACT-32H hand held wireless microphone transmitters.

The system operates on Channel 38 which requires a licence.

Automatic Channel Targeting (ACT) feature makes system set up extremely simple by matching and synchronising transmitters and receiver at the press of a button.

1U high, half rack width - rack mountable using the optional FB-71 or FB-72 rack mount ears - see related products.

  • EIA standard 1/2U metal receiver.
  • Receiver provides bias for booster where MIPRO antenna systems can be added for extended receiving range and stability.
  • Backlit LCD displays group, channel, frequency, RF level, antenna selection, AF level, battery level indicator, interference warning indicator, and panel lock indicator.
  • A lit green light indicates a working mode when receiver detects an incoming signal or buttons touched. Light dims automatically when receiver is idle for about 10 seconds.
  • Balanced XLR / unbalanced 1/4 " audio output jack, output level switch and DC input are on the rear panel. One mixed-output switch is available for dual-channel receivers.
  • High efficiency and low spurious PLL circuitry with Auto Scan functioin. Each receiver is presets with 11 groups, Groups 1~6, 7~10 have 8 &16 compatible channels respectively. Up to 8 channels in group 11 can be saved and recalled within 961 user-defined frequencies. A total of 112 preset channels per band.
  • World’s first ACT™ function provides precise and rapid frequency sync to the transmitters.
  • Advanced diversity technology for optimum reception range and reduces signal dropouts and the “PiloTone & NoiseLock” dual-squelch circuits prevent noise interference.
  • Adjustable ‘SQ’ for higher sensitivity to increase receiving distance and lower sensitivity to reduce interference.
  • Industry’s only RF interference warning indicator for ideal SQ level adjustment.
  • DC input socket accepts 12~15V power supply.



The Mipro ACT-32H handheld wireless microphone transmitter has a cardioid condenser pick-up.



  • Robust, lightweight plastic housing.
  • The unique multi-layered metal grille protects the capsule against impact, rolling and pop noise, ensuring clarity of sound.
  • Premium condenser capsules exhibit high fidelity, wide dynamic range, fast transient responses, good feedback rejection, accurate sound image characteristics, transparent sound quality and withstand maximum SPL.
  • Reversible end-cap allows power on/off switch being locked to avoid accidental power-off during performance.
  • Impact-resistant battery compartment holds 2 AA batteries.
  • Backlit LCD displays various parameters and status.
  • Stable PLL circuits. Automatically synchronized with the receiver’s frequency by MIPRO’s patented ACT™ function.
  • Patented “built-in” antenna design.
  • Interchangeable coloured rings for microphone channel identification on stage.
  • High-efficiency circuitry design provides more than 16 hours of operation from 2 AA batteries (depending on the battery quality).





Tech specs:



Channel

Dual

Chassis

EIA-Standard 19" 1/2U

Receiving Mode

Diversity

Frequency Range

UHF 480~934MHz

Antenna

Rear Panel. Detachable.

Preset Channels

112 preset channels.
Group 1-6: 8 compatible channels in each group.
Group 7-10: 16 compatible channels in each group.
Group 11: Up to 8 channels can be saved & recalled.
961 user-defined frequencies in group 11.

Oscillation Mode

PLL Synthesized, Frequency Stability≦±0.005% (-10~+60℃)

Sensitivity

10dBμV, at S/N>80dB

S/N Ratio

>106dB(A)

T.H.D.

<0.5% @ 1kHz

Frequency Response

50Hz~18kHz, with high pass filter.

Squelch

"PiloTone & NoiseLock" dual-squelch circuit.

Audio Output Adjustment

Output level accurately pre-adjusted to equal to the microphone capsule sensitivity.

Maximum Output Level

2-level Switch: Line & Mic

Power Supply

External AC Adapter, 12~15V DC, 1A

Dimensions

210(W)×44(H)×180(D)mm / 8.3(W)x1.7(H)x7.1(D)"

Weight

Approx. 0.95kg / 2.1lbs

Note

Refer to actual product in the event of product discrepancy.
Frequency range and maximum deviation comply with the regulations of different countries.



Hand Held Transmitter Specification

Frequency RangeUHF 480 – 934 MHz
Bandwidth24 MHz
Oscillation ModePLL Synthesized
Channel Set-UpACT Sync
RF Output Power10mW / 30mW (switchable)
Spurious Emissions< -55 dBc
LCD DisplayGroup, Channel, Battery status & error codes
Max. SPL140 dB SPL
Battery Type2 AA alkaline
Operating TimeMin. 12 hours (Low Power)
Current ConsumptionApprox. 92 mA
Dimensions (Ø × L)51 × 234 mm / 2 × 9.2 "
Net WeightApprox. 251 g / 8.9 oz
