Shure SLXD24/SM86 Digital Wireless Handheld Microphone System w/ SM86

Spesifikasi Shure SLXD24/SM86 Digital Wireless Handheld Microphone System w/ SM86

Shure SLXD24/SM86 Digital Wireless Handheld Microphone System w/ SM86

Shure SLXD24/SM86 Digital Handheld Wireless Vocal System with SM86 Microphone

The new SLX-D series from Shure delivers transparent, 24-bit digital audio and rock solid RF performance in an easy-to-use, easy-to-scale suite of versatile system configurations. Operate up to 32 compatible systems per 44 MHz UHF band, with easy setup and optional rechargeability accessories.

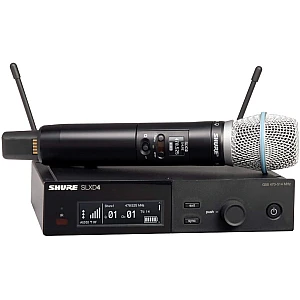

The Shure SLXD24/SM86 Digital Handheld Wireless Vocal System is an incredible handheld digital wireless vocal mic system that's tough enough for life on the road, featuring Shure's stunning SM86 cardioid condenser microphone capsule for rich, detailed sound and sparkling vocal performances. The Shure SLXD24/SM86 comprises

1. 1x SLXD4 Digital Wireless Receiver
2. 1x SLXD2/SM86 Handheld Digital Wireless Transmitter with SM86 cardioid condenser microphone capsule

SLX-D SYSTEM FEATURES:

• Transparent 24-bit digital audio
• Extended 20 Hz to 20 kHz frequency range (microphone dependent)
• 120 dB dynamic range
• Digital predictive switching diversity
• 44 MHz tuning bandwidth (region dependent)
• 32 available channels per frequency band (region dependent)
• Up to 10 compatible systems per 6MHz TV band; 12 systems per 8 MHz band
• Easy pairing of transmitters and receivers over scan and IR sync
• Rugged, durable construction
•

SLXD4 DIGITAL WIRELESS RECEIVER SPECIFICATIONS:

• Dimensions (H × W × D): 1.65 × 7.76 × 5.98 in (42 × 197 × 152 mm)
• Weight: 1.8 lb (816 g) without antennas
• Housing: Galvanized Steel
• Power Requirements: 15 VDC @ 600 mA Supplied by external power supply (tip positive)
•

RF INPUT

• Spurious Rejection: >75 dB Typical
• Connector Type: BNC
• Impedance: 50 Ω
• AUDIO OUTPUT
• Gain Adjustment Range: –18 to +42 dB in 1 dB steps
• Configuration
• 1/4" (6.35 mm): Balanced (Tip=audio +, Ring=audio –, Sleeve=ground)
• XLR: Balanced (1=ground, 2=audio +, 3=audio –)
• Impedance
• 1/4" (6.35 mm): 1.3 kΩ (670 Ω Unbalanced)
• XLR (line): 400 Ω (200 Ω Unbalanced)
• XLR (mic): 150 Ω
• Full Scale Output
• 1/4" (6.35 mm): +15 dBV differentially (+9 dBV single)
• XLR (LINE setting): +15 dBV
• XLR (MIC setting): –15 dBV
• Mic/Line Switch 30 dB pad
• Phantom Power Protection
• 1/4" (6.35 mm): Yes
• XLR: Yes
  ​

NETWORKING

• Network Interface: Single Port Ethernet 10/100 Mbps
• Network Addressing Capability: DHCP or Manual IP address
• Maximum Cable Length: 100 m (328 ft)
•

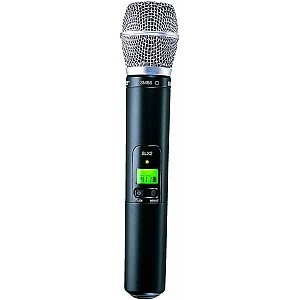

SLXD2 HANDHELD DIGITAL WIRELESS TRANSMITTER SPECIFICATIONS:

• Battery Type: Rechargeable Li-Ion or 1.5 V AA batteries
• Dimensions (Dia. × L): 1.46 × 6.93 in (37.1 × 176 mm)
• Weight: 5.2 oz. (147 g)
• Housing: Aluminum
•

AUDIO INPUT

• Configuration: Unbalanced
• Maximum Input Level: 8.2 dBV (2.57 Vrms, 7.27 Vpp) - dependent on microphone type
• RF OUTPUT
• Antenna Type: Integrated Single-Band Helical
• Occupied Bandwidth: <200 kHz
• Modulation Type: Shure Propietary Digital
• Power: 1 mW/10 mW
•

SM86 MICROPHONE SPECIFICATIONS:

• Type: Condenser
• Frequency Response: 50 to 18,000 Hz
• Polar Pattern: Cardioid
• Sensitivity (at 1,000 Hz) Open circuit voltage: -50 dBV/Pa (3.15 mV) (1 Pa = 94 dB SPL)
• Impedance: 150 Ω at 1 kHz
• Recommended minimum load impedance: 600 Ω
• Output Clipping Level 1000 Ω load at 1,000 Hz: +3 dBV (1.41 V)
• Maximum SPL (at 1,000 Hz) 1000 Ω load (1% THD): 147 dB
• Self-Noise: 23 dB typical, A-weighted
• Dynamic Range (1000 Ω): 124 dB (maximum SPL to A-weighted noise level)
• Signal-to-Noise Ratio: 71 dB at 94 dB SPL (IEC 651)
• Polarity: Positive pressure on diaphragm produces positive voltage on pin 2 relative to pin 3 of the output connector
