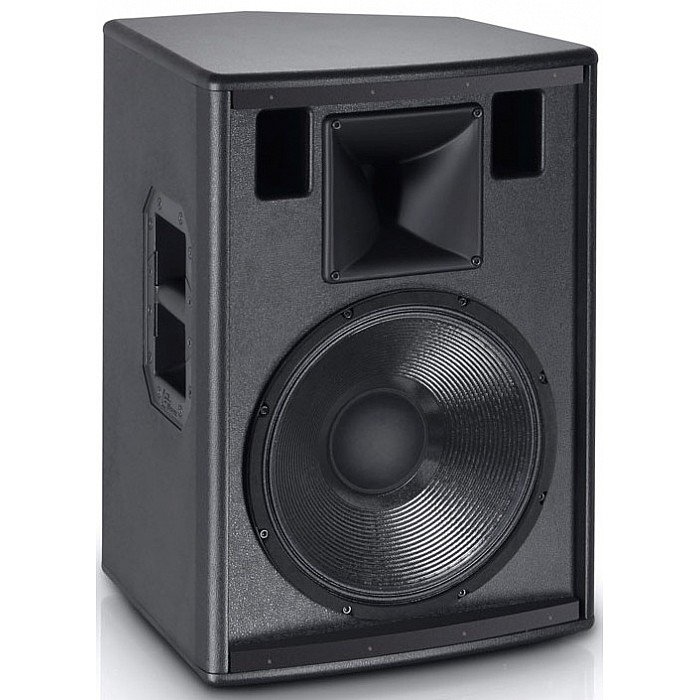

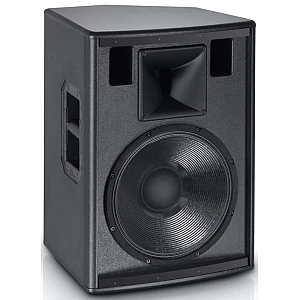

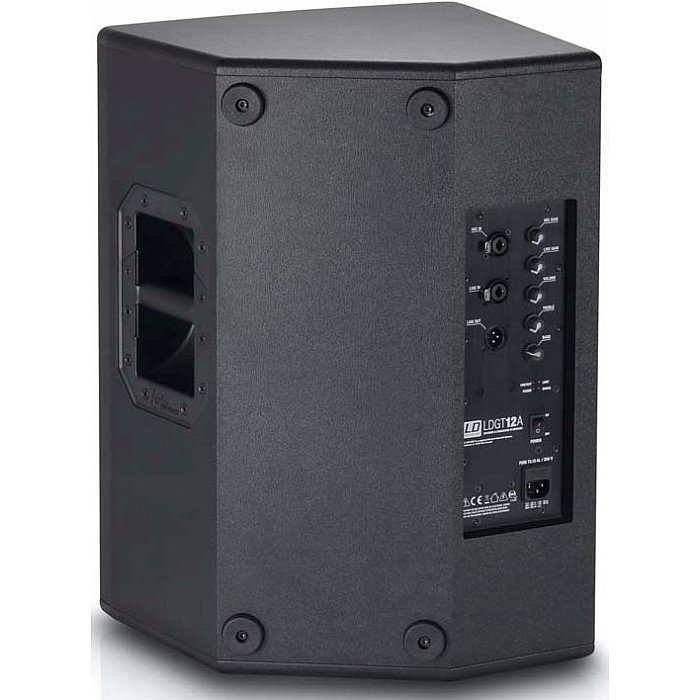

With its 12" custom woofer and 1" Celestion compression driver complement the GT 12 A active fullrange loudspeaker delivers high definition audio with a peak SPL of 122 dB, 60 Hz - 19 kHz frequency response and 90° x 60° dispersion.

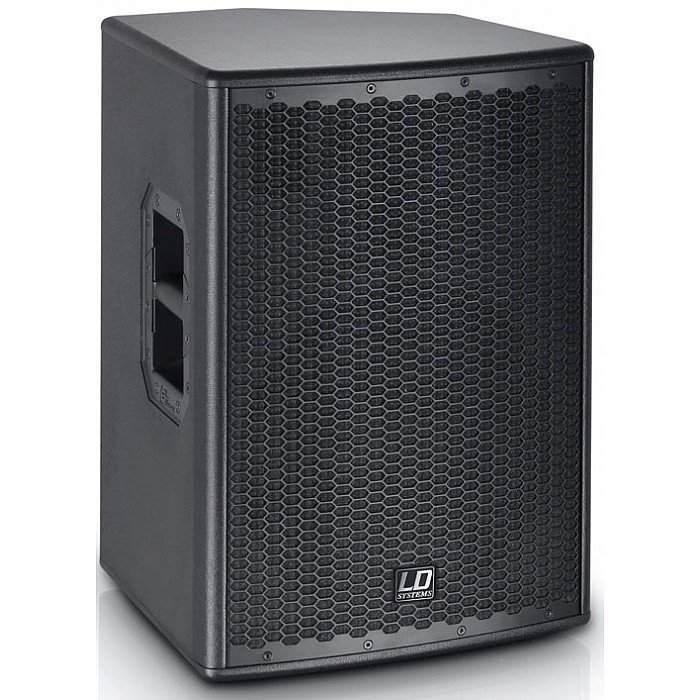

Covered in tough, textured Dura-Vinyl for protection and long-lasting appearance the rugged 15mm MDF bass reflex enclosure integrates a 54° monitor angle, honeycomb pattern steel grille and dual tilt pole mount.
Providing outstanding value, the GT 12 A is powered by a built-in Class D digital amplifier with highly efficient SMPS technology and 1,000 watts peak output. It features XLR and 6.3 mm connectors for line and microphone input, a 2-band EQ and overcurrent and overvoltage protection for reliable operation.
A protective cover is available as accessory.
Spech
Product number: | LDGT12A |
---|---|
Product type: | PA loudspeaker |
Type: | active |
Low/mid driver dimensions: | 12" |
Low/mid driver dimensions (mm): | 304.8mm |
Woofer magnet: | Ferrite |
Woofer brand: | Custom-made |
Woofer voice coil: | 2.5" |
Woofer voice coil (mm): | 63.5mm |
Horn: | CD horn |
HF driver dimensions: | 1" |
HF driver dimensions (mm): | 25.4mm |
HF driver magnet: | Ferrite |
HF driver brand: | Celestion |
HF driver voice coil: | 1" |
HF driver voice coil (mm): | 25.4mm |
Amplifier: | Class D |
Dispersion (H x V): | 90 x 60° |
RMS: | 250W |
Peak power: | 1000W |
Frequency response: | 60 - 19000Hz |
Crossover frequency: | 2200Hz |
Max. SPL (continuous): | 119dB |
Max. SPL (peak): | 122dB |
Protection circuits: | over-current, over voltage, HF Driver |
Input sensitivity: | Mic: 150 mV / Line: -10dBu |

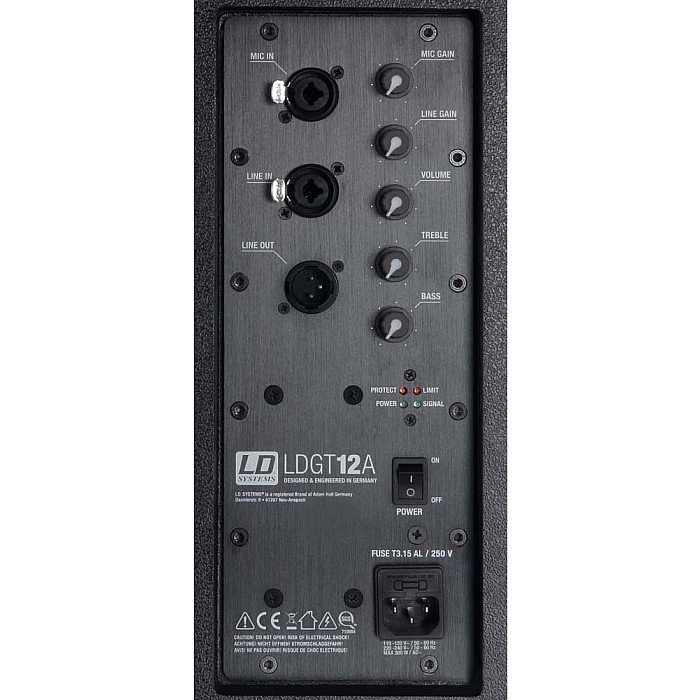

Controls: | Treble, Line Gain, Power, volume, Mic Gain, Bass |
Indicators: | signal, protect (protection circuit engaged), limit, Power |
Line inputs: | 1 |
Line input connectors: | 6.3 mm Jack, XLR |
Mic inputs: | 1, XLR, 6.3 mm Jack |
Line outputs: | 1 |
Line output connectors: | XLR |
Operating voltage: | Switching Power Supply, 110 V AC - 120 V AC, 220 V AC - 240 V AC (Auto), 50 - 60 Hz |
Cabinet material: | 15 mm MDF |

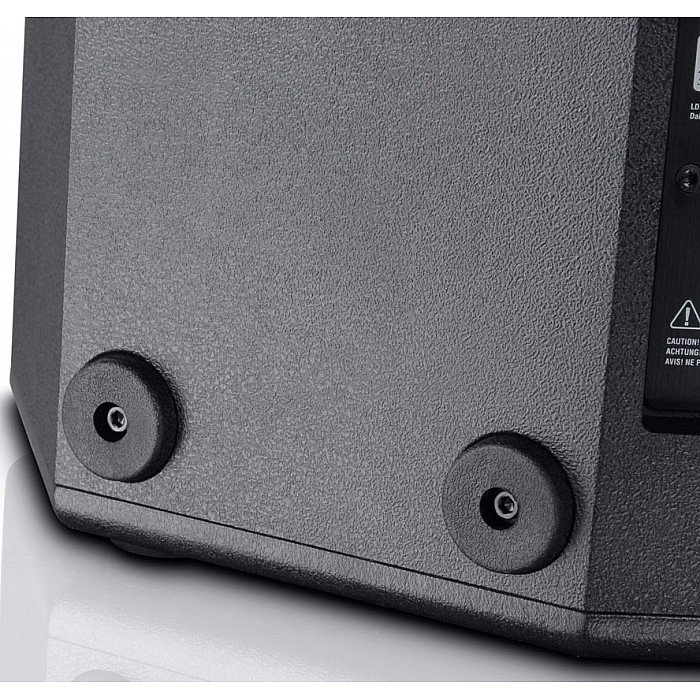

Cabinet surface: | Dura-vinyl textured paint |
Cabinet construction: | vented |

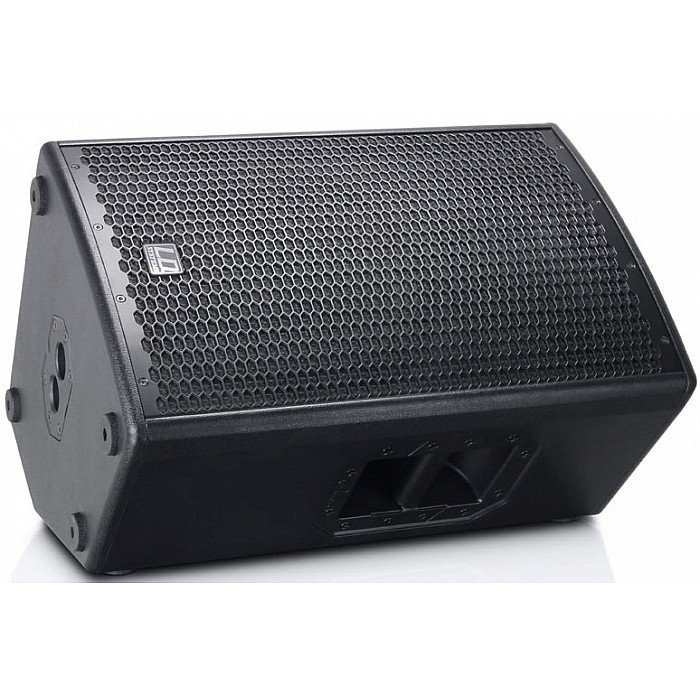

Monitor angle: | 54° |
Width: | 389mm |
Height: | 565mm |
Depth: | 368mm |

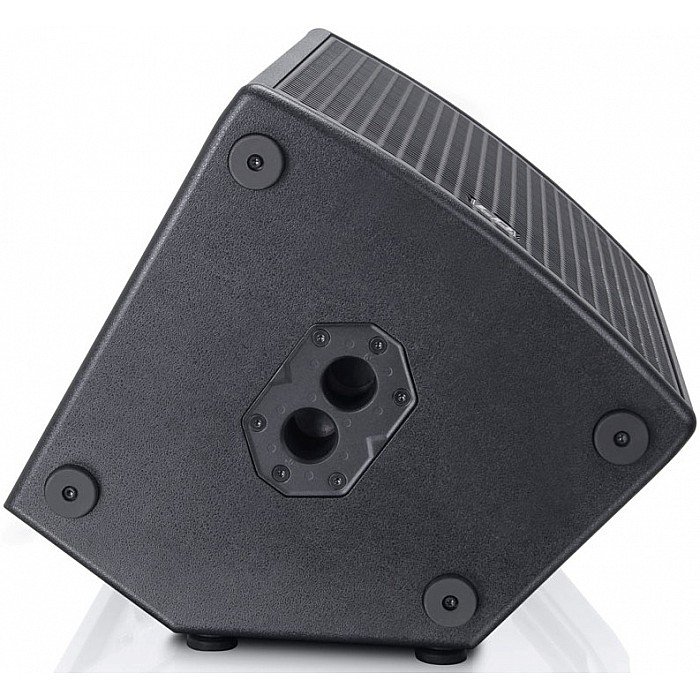

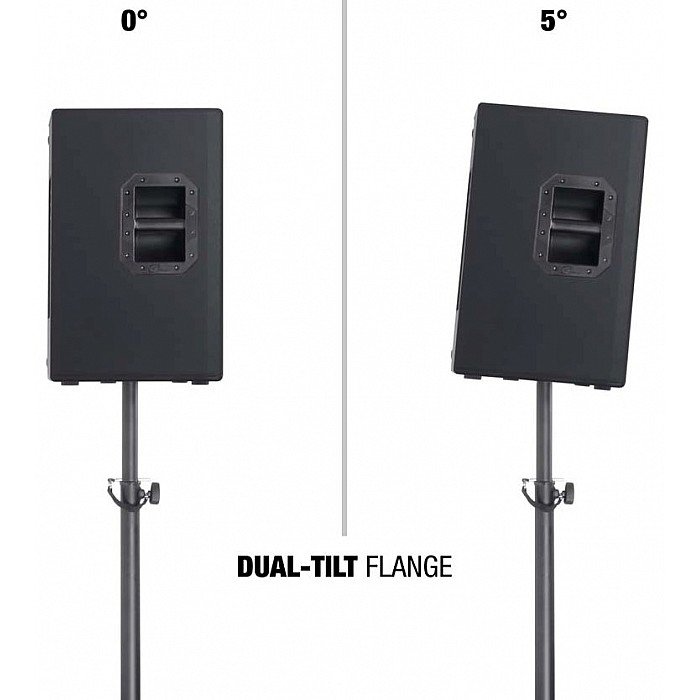

Features: | rugged steel grille, dual-tilt flange (0°/5°) |
Weight: | 20.7kg |
With its 12" custom woofer and 1" Celestion compression driver complement the GT 12 A active fullrange loudspeaker delivers high definition audio with a peak SPL of 122 dB, 60 Hz - 19 kHz frequency response and 90° x 60° dispersion.
Covered in tough, textured Dura-Vinyl for protection and long-lasting appearance the rugged 15mm MDF bass reflex enclosure integrates a 54° monitor angle, honeycomb pattern steel grille and dual tilt pole mount.
Providing outstanding value, the GT 12 A is powered by a built-in Class D digital amplifier with highly efficient SMPS technology and 1,000 watts peak output. It features XLR and 6.3 mm connectors for line and microphone input, a 2-band EQ and overcurrent and overvoltage protection for reliable operation.
A protective cover is available as accessory.
