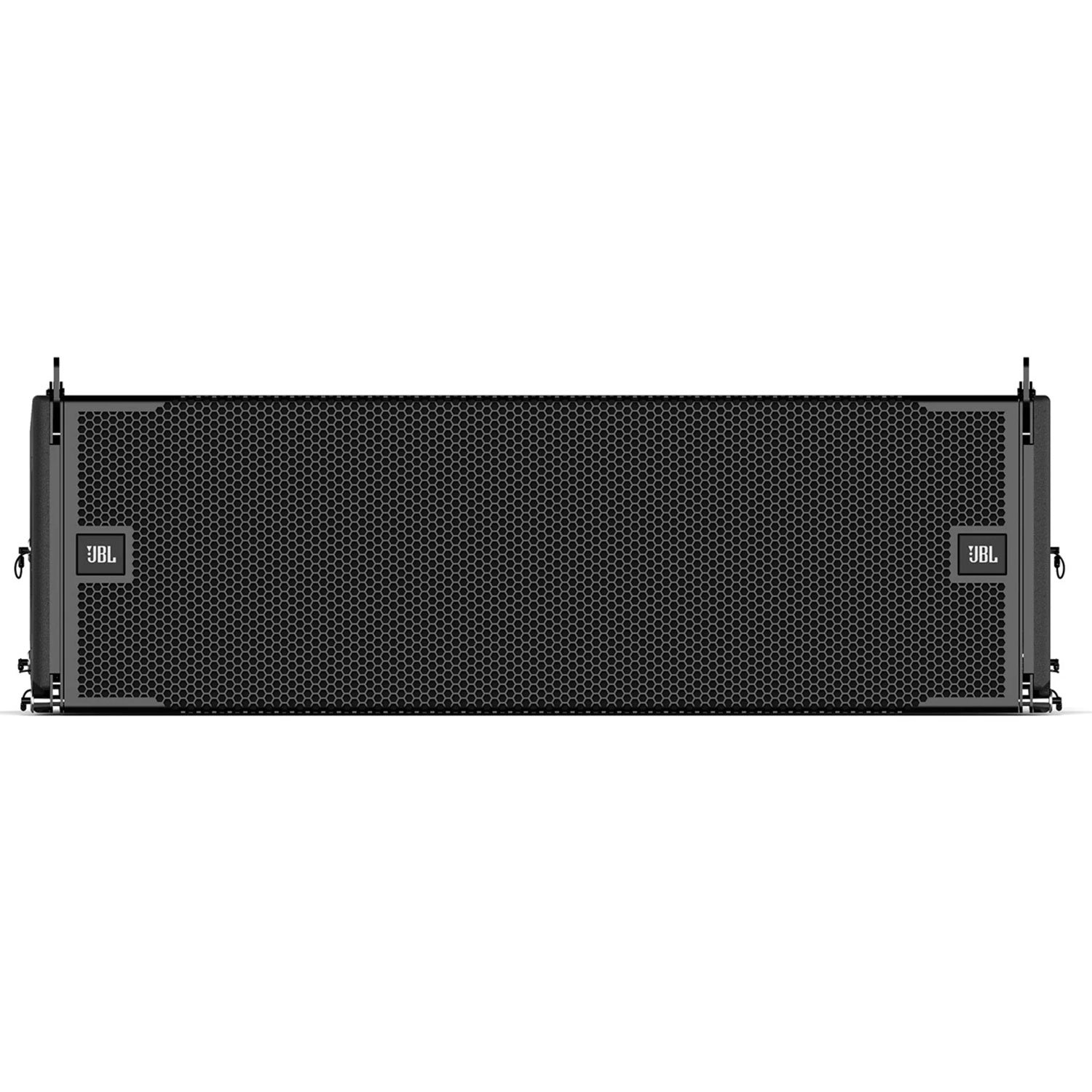

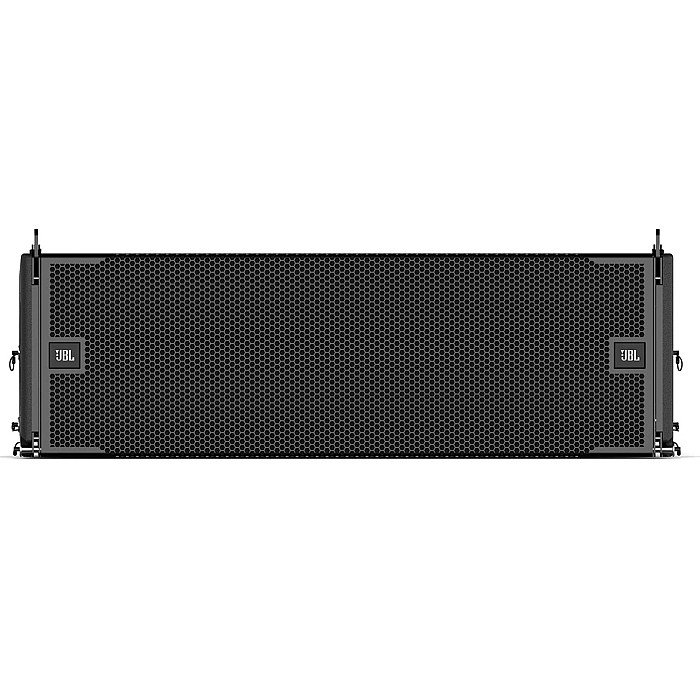

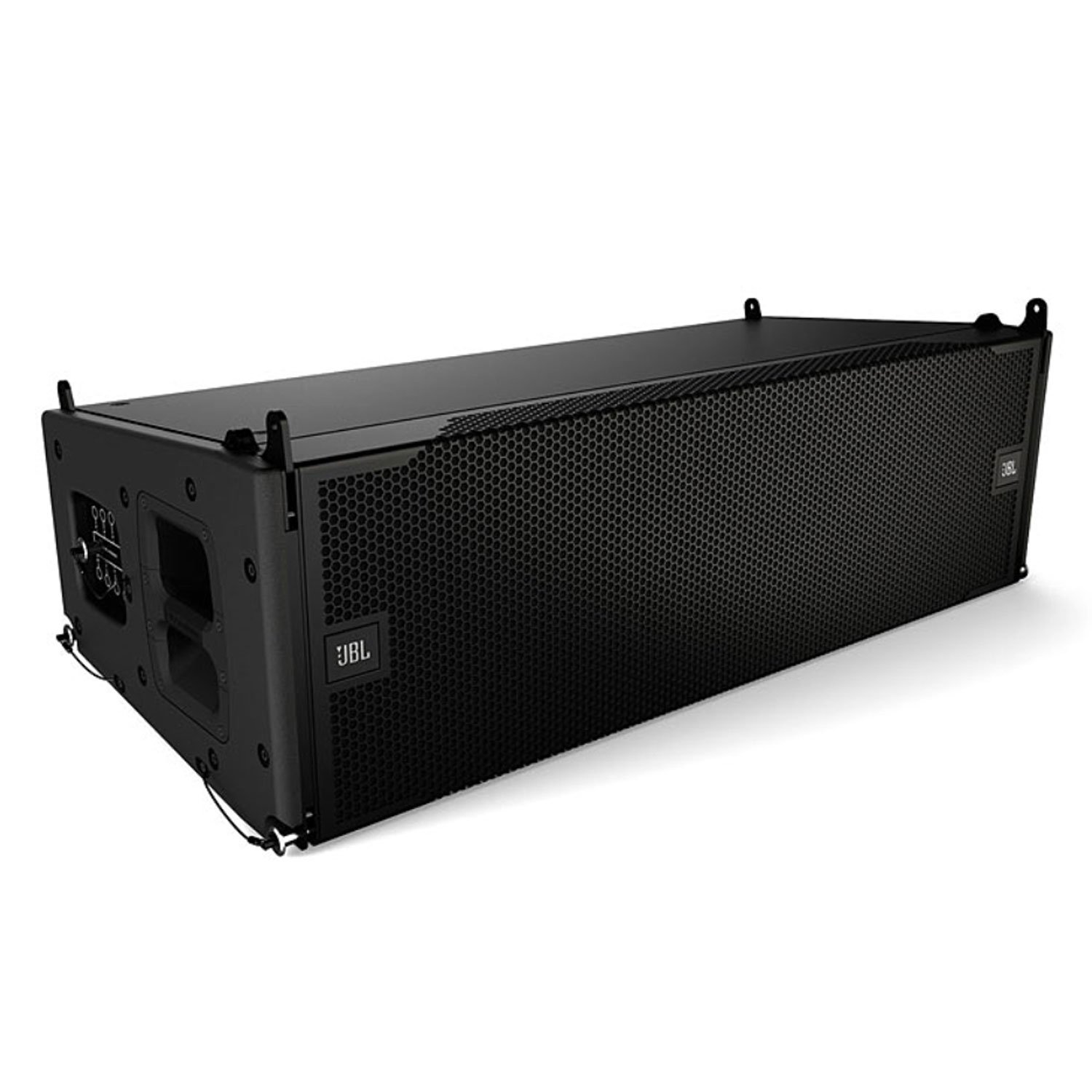

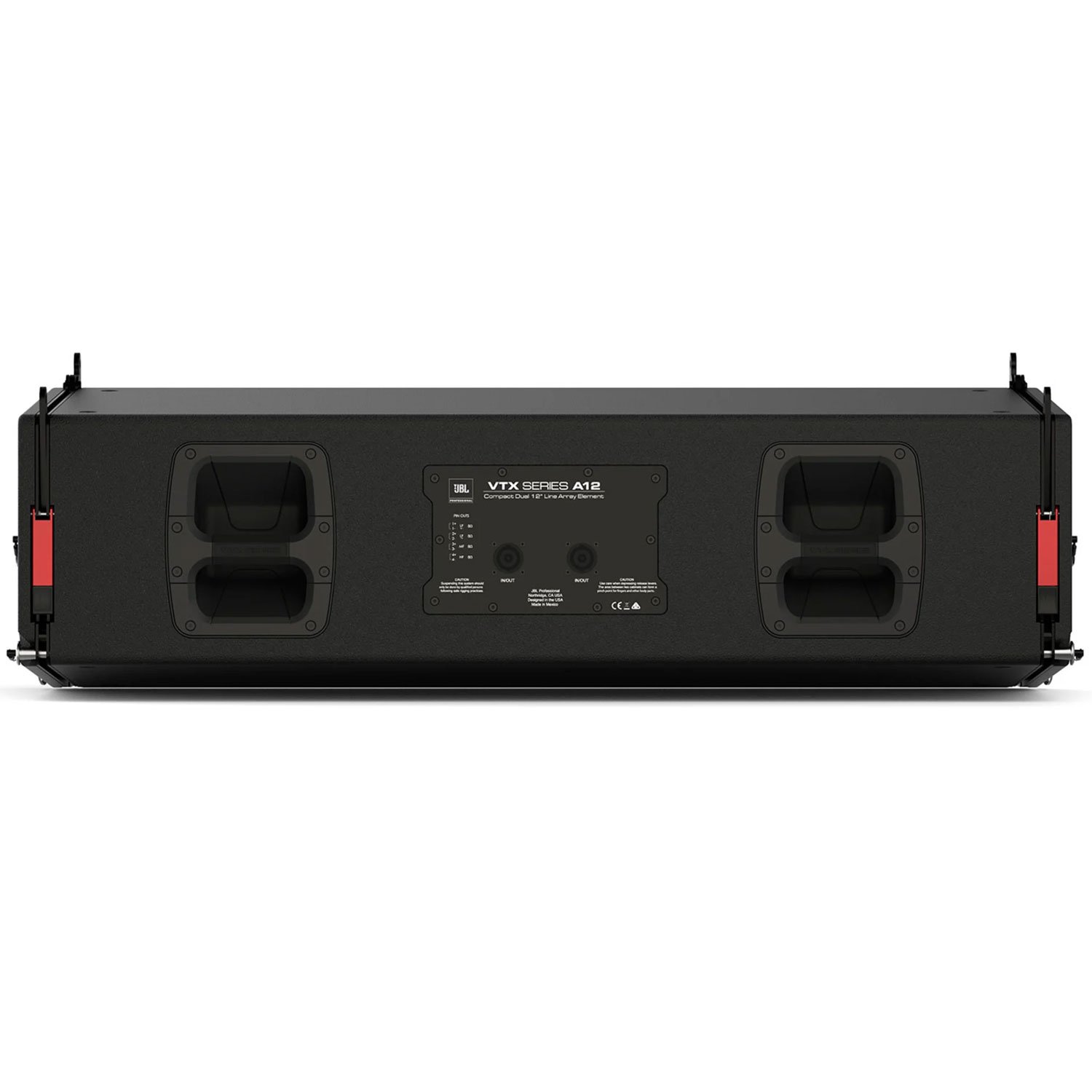

JBL VTX A12 12 Inch Passive Line Array Speaker

Spesifikasi JBL VTX A12 12 Inch Passive Line Array Speaker

JBL VTX A12 12 Inch Passive Line Array Speaker

Next Generation Dual 12" Line Array Loudspeaker

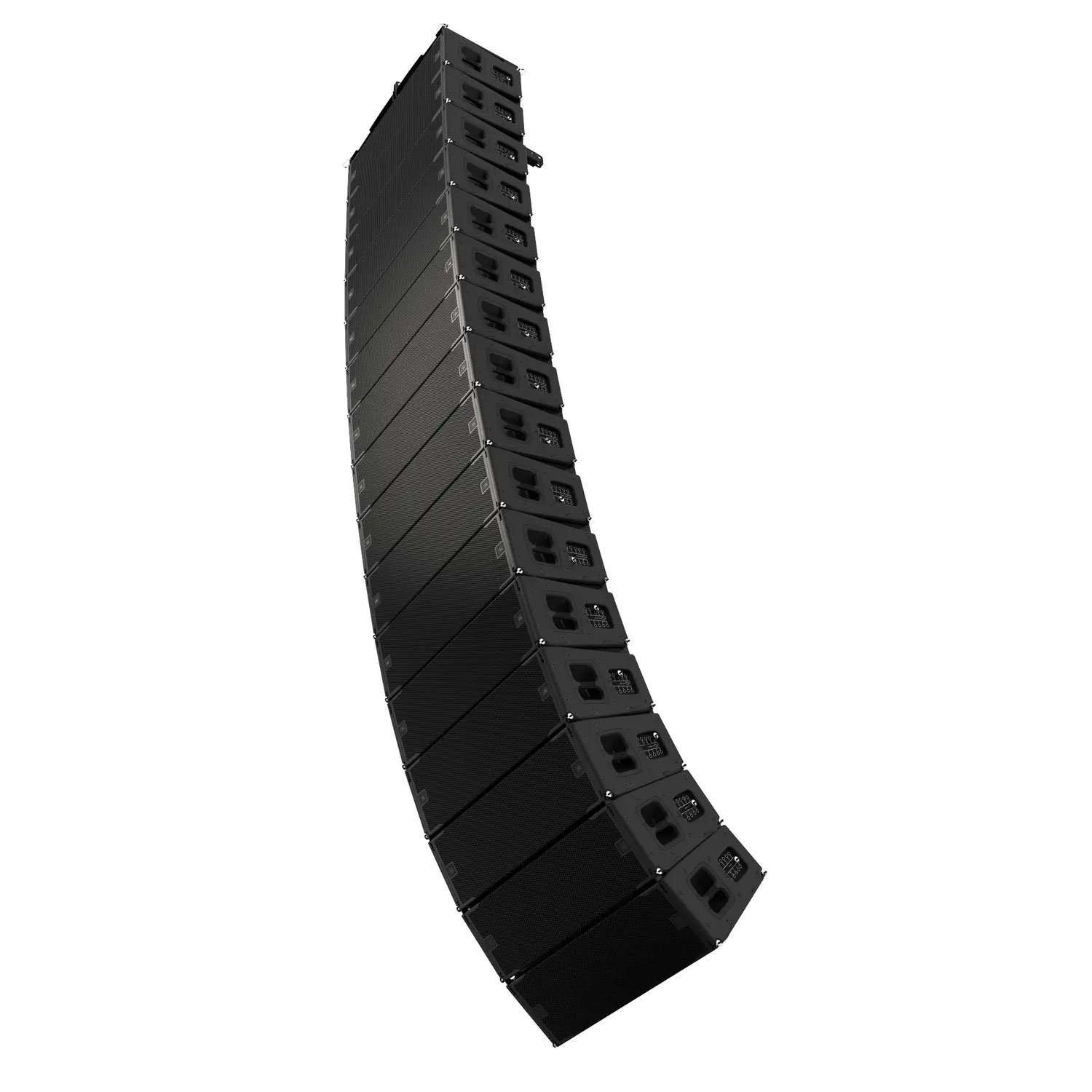

JBL VTX A12 is a complete tour sound solution for mid- to large-size touring applications and high-end fixed installations. VTX A12 was designed from scratch to address the unique challenges of rental companies, FOH engineers and tour sound production crews. Next-generation JBL transducer technology and a high-frequency waveguide design deliver unmatched performance, sensitivity and coverage. A patented JBL rigging mechanism and redesigned suspension system streamline deployment and setup. And refinements to the physical design maximize reliability and versatility, while minimizing size and dramatically reducing weight. VTX A12 isn’t just a superior line array—it’s a completely new way to approach tour sound.

JBL VTX A12 Features:
New and improved JBL transducers for the best output per weight.
Innovative HF section integrates the phasing plug and waveguide for high sensitivity and linearity even at high output levels.
Redesigned Radiation Boundary Integrator® (RBI) for reduced horn edge diffraction, improved LF sensitivity, lower distortion, and 90-degree coverage down to 250 Hz.
Next Generation LF section, including industry-defining Differential Drive woofers, with a dual magnet, dual voice-coil design for extended linear excursion.
Best-in-class rigging for streamlined, rapid deployment.
Full-face grill for superior weatherization and refined aesthetics.
New transport cart and frame for simplified transport and setup.
Optimizations throughout the design for space efficiency and reduced weight while simultaneously improving performance.
Full integration with JBL system control and prediction software.
Lightweight design.

1. Frequency Range (-10dB) 46 Hz - 19k Hz (Preset: VTX A12)
2. Horizontal Coverage (-6 dB) 90 degrees nominal (250 Hz - 18k Hz)
3. Max SPL 146 dB (Preset: VTX A12)
4. System Amplification Crown Audio I-Tech HD
5. Nominal Impedance LF: 2x 8 ohms
6. MF: 8 ohms
7. HF: 8 ohms
8. LF Driver (2) JBL 2264H 12-inch Neodymium Differential Drive® woofer
9. MF Driver (4) JBL 2165H 5.5-inch Neodymium Differential Drive® woofer
10. HF Driver (3) JBL 2423K 2-inch annular diaphragm compression driver
11. Enclosure Finnish birch plywood, Black DuraFlex finish, integral recessed handles

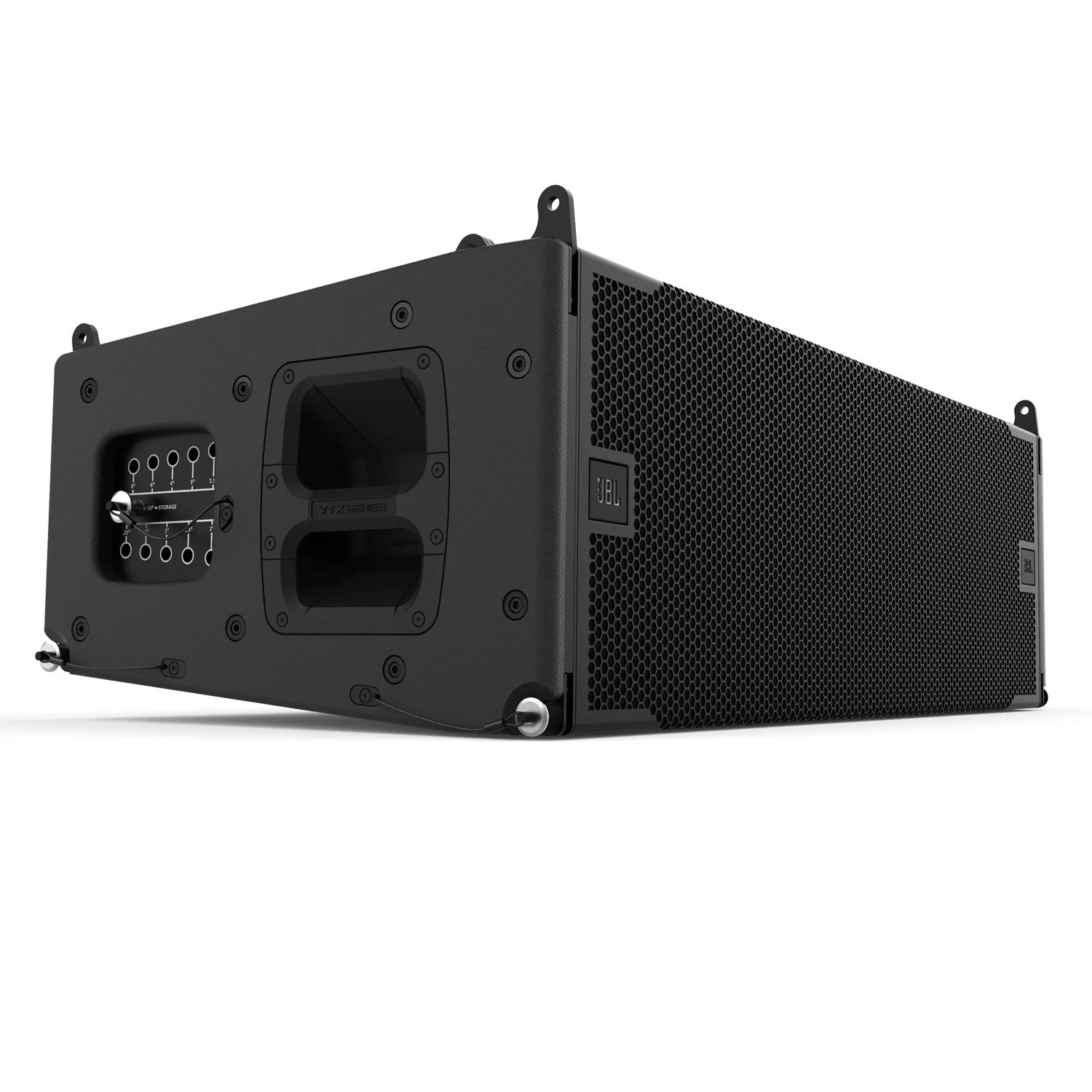

12. Suspension / Mounting High-grade steel with anti-corrosion coating, captive suspension plates, quick release pins, auto-locking mechanism for setting angles
13. Inter-enclosure Angle 0.25 | 0.5 | 1 | 1.5 | 2 | 2.5 | 3 | 4 | 6 | 8 | 10
14. Dimensions (H x W x D) 330 mm x 1118 mm x 495 mm
15. 13 in x 44 in x 19.5 in
16. Net Weight (each) 60.8 kg (134 lbs)
