Spesifikasi JBL KP 610 2 way Speaker

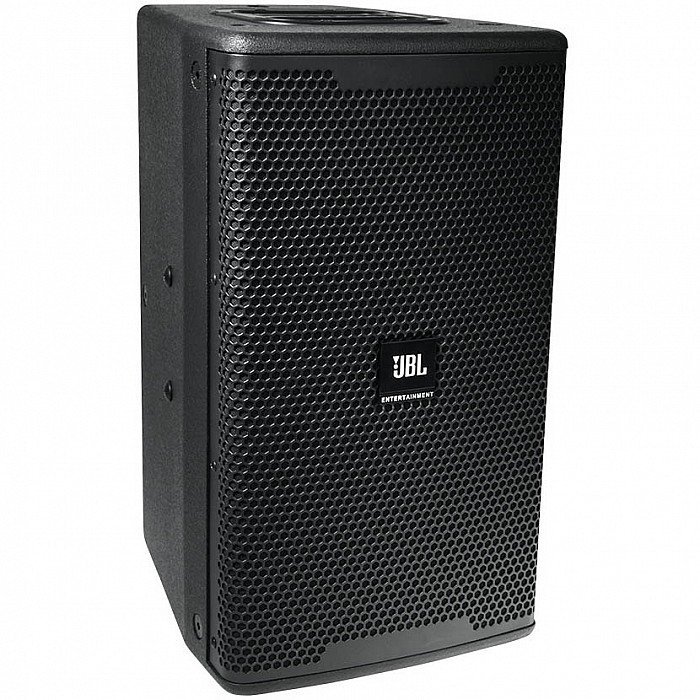

JBL KP 610 2 way Speaker

The KP610 is a premium high-output lightweight full-range loudspeaker. The KP610 uses a JBL 261H 254 mm (10 in) Differential Drive® woofer and a 2408H-1 37.5 mm (1.5 in) annular polymer diaphragm, neodymium compression driver for 300 watts power capacity. 80° x 70° coverage pattern provides smooth, even coverage whether used in the vertical or horizontal orientation. The highslope passive network minimizes band overlap.

The enclosure is constructed of 15 mm multi-ply high quality plywood and finished in a durable black paint coating. The trapezoid enclosure is fitted with dual Neutrik NL4MP connector for loop thru connection, fifteen M10 threaded suspension points, four M10 screws for KTV bracket mounting, a 35 mm pole mount. It utilizes a 16 gauge protective screen backed steel grille to provide driver protection with a very professional appearance.

Features

• 10″ Differential Drive® woofer for high-power capacity and very lightweight
• 1.5″ annular polymer diaphragm compression driver
• Enclosure constructed of 15 mm plywood with rugged durable painting 80° x 70° coverage pattern for even and smooth response on and off axis
• Attractive 16 gauge protective screen backed steel grille
• Precision engineered crossover for optimal power response and performance in the vocal midrange region
• Single position pole socket for applications requiring pole mounting
• SonicGuard™ protects high frequency driver from excess power without interrupting the performance.
• Rotatable JBL ENTERTAINMENT logo for easy coherence to your application
