Spesifikasi Flamma FX150 Guitar Multi Effects Pedal, Gray

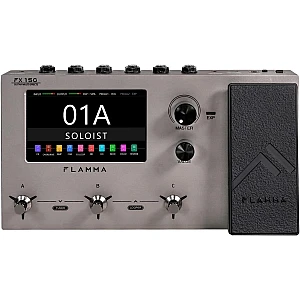

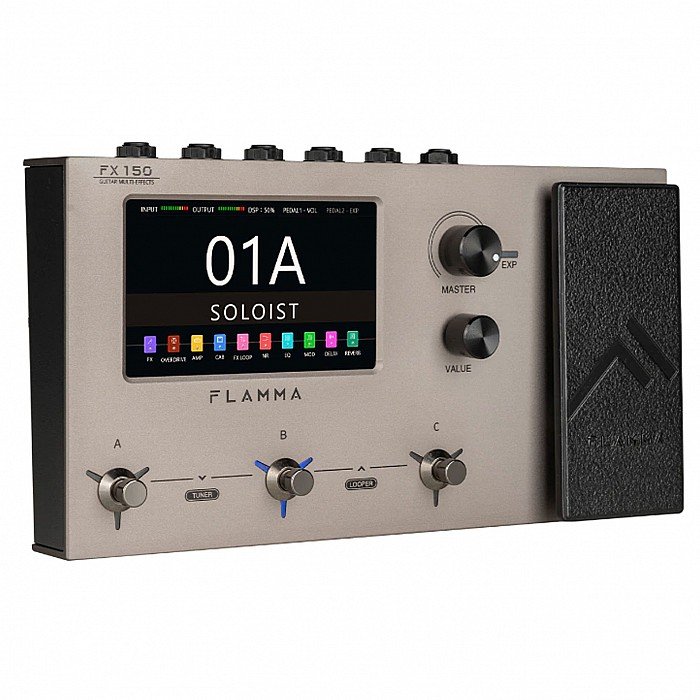

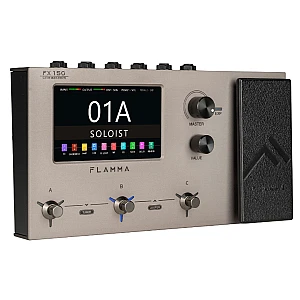

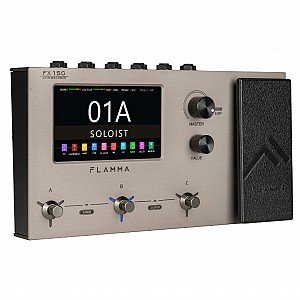

Flamma FX150 Guitar Multi Effects Pedal, Gray
FLAMMA FX150 boasts 160 types of unique effects ranging from modulation and delay effects to tonal presets, preamps, and amp simulation models. FLAMMA FX150 users have complete control over these effects and amp simulators and can modify and overwrite presets using the easy-to-use FX150 editor software across 180 user slots. The FLAMMA FX150 features 160 unique effect types ranging from modulation and delay effects to tonal presets, preamps, and amp simulation models. FLAMMA FX150 users have full control over these effects and amp simulators, being able to modify and overwrite presets using the easy-to-use FX150 editing software in 180 user slots. Surprisingly, the FX150 features a touchscreen, so it's clear that FLAMMA is taking its interface into the future!
Unlike most amp simulators on the market, the FX150 supports 1024-point impulse response files, meaning users have more flexibility to create perfect amp emulations than 512-point systems. Pre-installed on the FX150 are 30 high-quality cab emulations along with a wide range of preamp models, but like the effects, these can be replaced with edited versions or third-party IR files, all via the FX150 editing software and touch interface. The FX150 also includes 80 variations of rhythm machines, 10 unique metronomes, and a tuner, and the device itself acts as a USB sound card, meaning that FLAMMA has made it much easier for guitarists to start recording their creations. These rhythm machines, metronomes, and guitar effects can be used in conjunction with the 52-second looper, programmable footswitches, and auxiliary input, to create a truly unified, cutting-edge, and professional music-making station.
Features

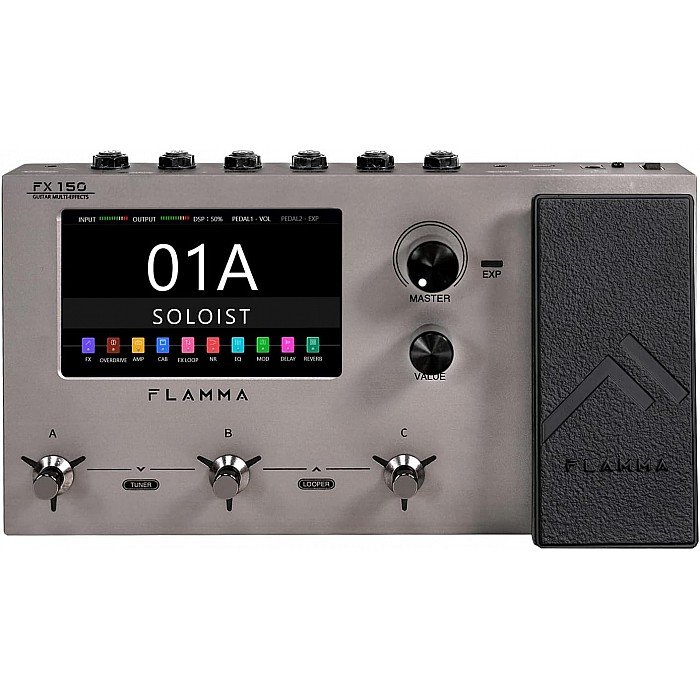

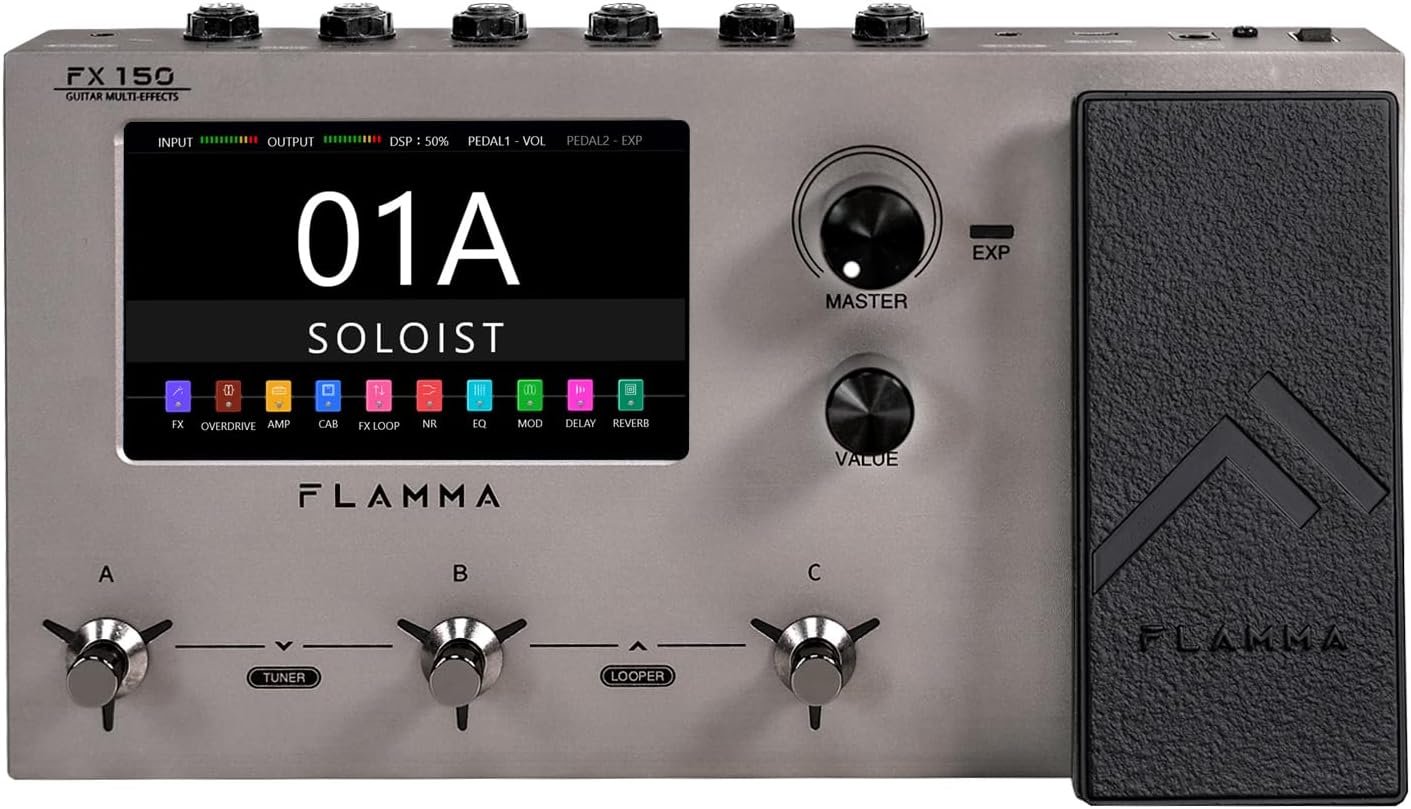

5in LCD Touch Screen
Smoothly and easily edit parameters with high quality touch screen. The big coloful 5' LCD screen brings you more convenience on practice or performance. You can easily adjust the effects chain at your finger between 10 effects modules.
4 Cable-method & FX LOOP
Global EQ allows user to adjust the tone quickly according to different audio setups. As the FX150 has an integrated FX LOOP, you can use the FX150 with an amplifier via Four-Cable Method. You can also add your favorite pedals into the effects loop.
30 Cab Sims & 50 Empty Slots
58 high quality 1024-point preamp models with the feel of an authentic tube amplifier, 30 high-quality cab simulations are preinstalled onto the FX150 alongside a huge range of pre-amp models. It also supports 3rd IR loading into 50 empty slots. Craft your sounds with plenty of choice.
Guitar Live Setup & Studio Recording
3-footswitches allows you easily control presets and guitar effects for complex live setups. Two different footswitch control modes for different situations. CTRL footswitch allows user to set corresponding footswitch as the on/off switch or tap tempo switch.
Home Practice Device & One-Man-Band
These drum machines, metronomes, and guitar effects can be used together with the 52-second looper, programmable foot switches, and auxiliary input, to create a truly unified, cutting-edge and professional music creation station.
Specifications
USB Audio
• USB audio recording with specialized editor software & OTG Recording
EXP2 Port
1/4” stereo audio input jack, connect to external expression pedal
SEND & RETURN
Use the FX150 with an amplifier via FX LOOP to build your guitar setsup
STEREO OUTPUT
• OUTPUT: 1/4” stereo audio output jack for unbalanced signal
TYPE SPECIFICATION
SIZE : 15.5*28.7*8.4 cm
DIM. : 1.345KG
VALUE EFFECTS
160 : Num. of Effect
180 : Num. of Preset Module
10 : Num. of Effect Patch
VALUE IMPLUSE RESPONSE
1024 : Sample Accuracy
WAV : File Format
44.1 kHz : Sample Rate

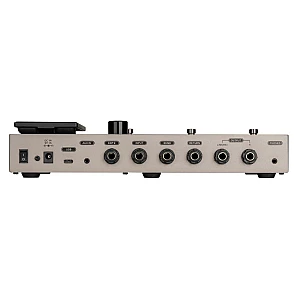

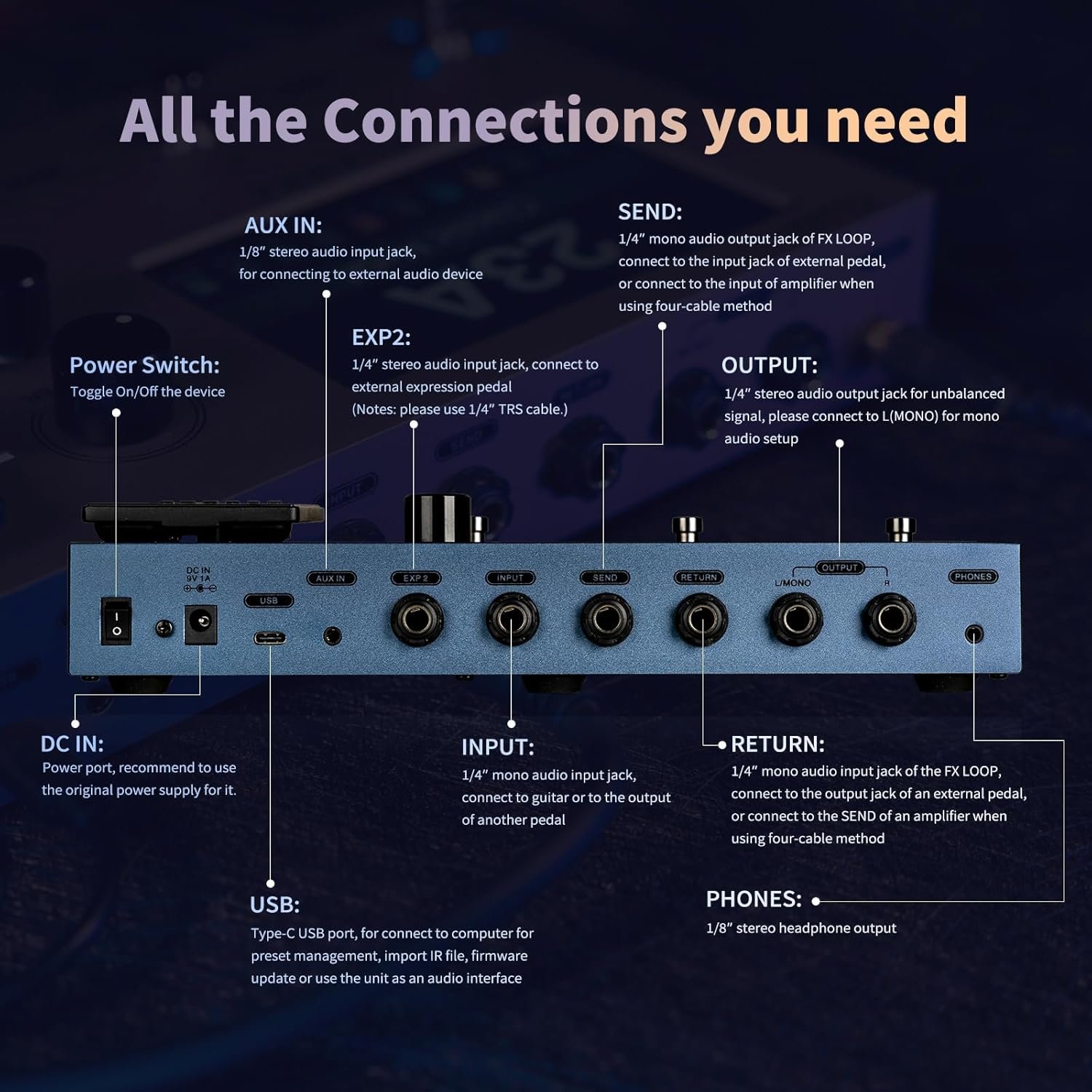

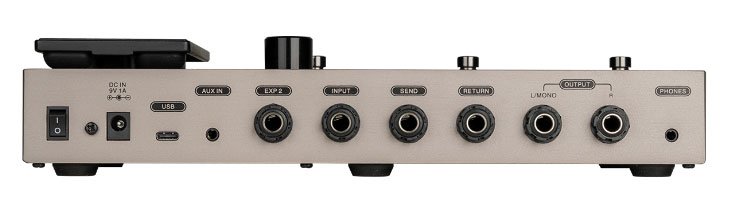

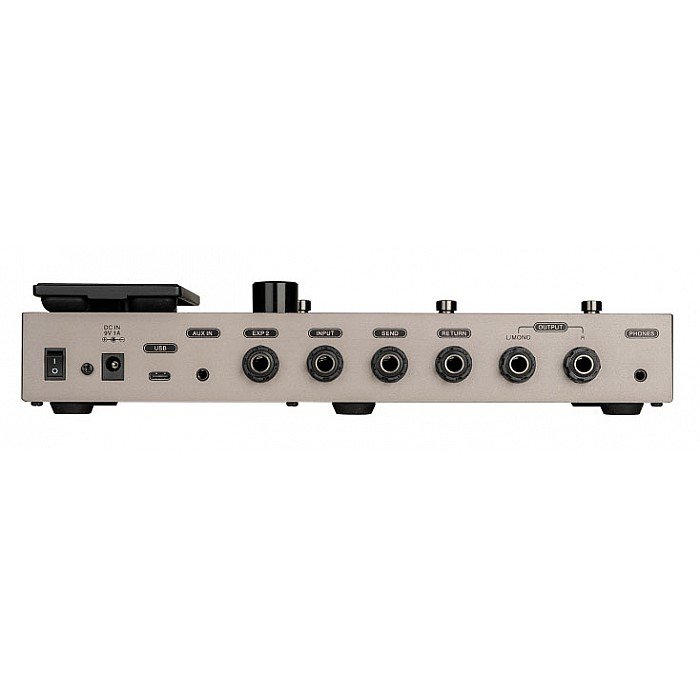

I/OHARDWARE
AUX IN1*1/8” unbalanced stereo input jack impedance value 47kΩ
EXP 21*1/4” TRS jack,
impedance value 10kΩ
INPUT/OUTPUT1*1/4” unbalanced mono input jack,impedance value 1MΩ
SEND1*1/4” unbalanced mono output jack,impedance value 510Ω
RETURN1*1/4” unbalanced mono input jack,impedance value 1MΩ
PHONES1*1/8” stereo output jack,impedance value 47Ω
USB1*USB TYPE-C port,
USB Audio for, OTG Recording
Spill-over Function
• Spill-over function for delay/reverb to fade out naturally
Global EQ Setting
• Adjust the tone quickly according to different audio setups
CTRL Footswitch
• Set corresponding footswitch as the on/off switch or tap tempo switch
Editable Effects Chain
• Change the order of modules on touch screen or software
