Spesifikasi FBT Mitus 206LA Active Line Array

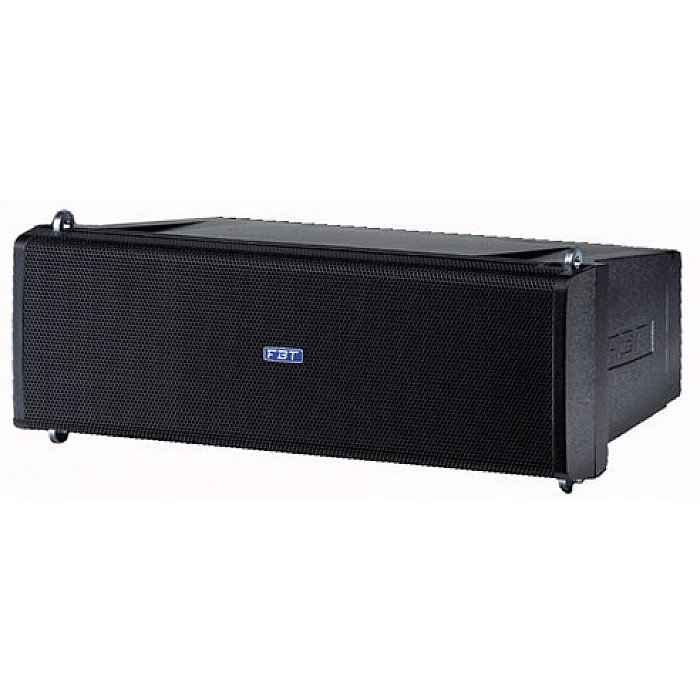

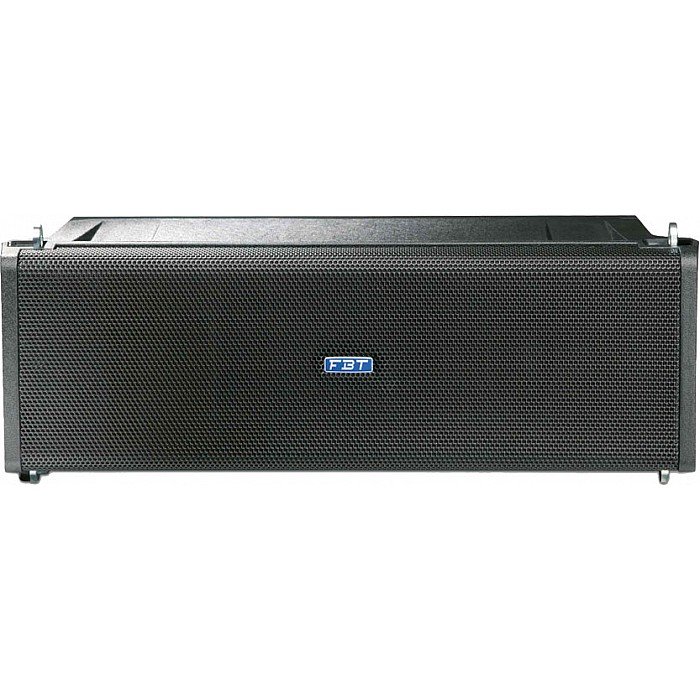

FBT Mitus 206LA Active Line Array

600W + 300W - 134dB SPL Active precision coverage vertical array

• 2 x 6.5’’ (165 mm) B&C neodymium woofers with 1.7’’ (44 mm) coil
• 1.4’’ (36 mm) exit B&C neodymium driver with 2.5’’ (64 mm) coil
• Frequency response from 68Hz to 20KHz
• Latest class D built-in amplifiers, 600Wrms to the LF and 300Wrms to the HF with switch mode power supply
• DSP on-board with 8 presets, +/- 5db HF level control for accurate amplitude shading

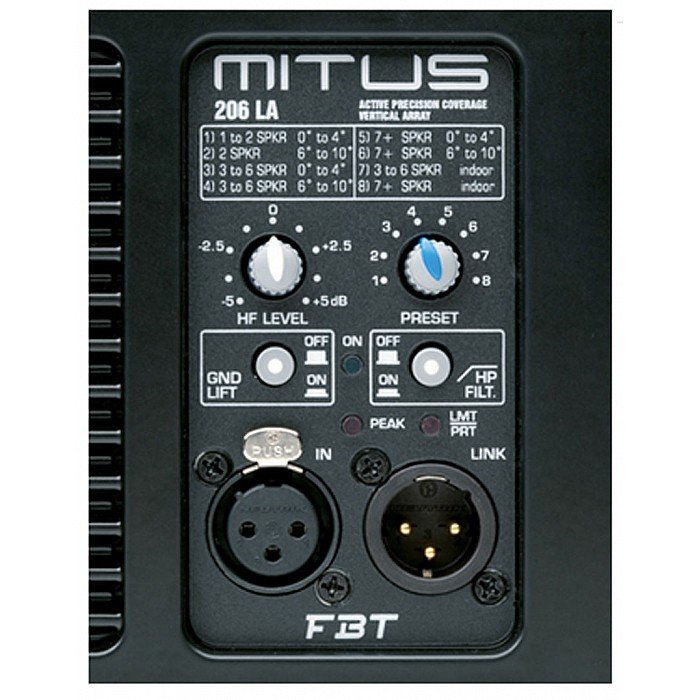

• Control panel with XLR input and link, volume, presets, HF level, HP-filter, ground-lift
• 100° horizontal waveguide with very low distortion and near flat wavefront up to 18Khz
• High impact polypropylene  gas-injected enclosure withintegrated rigging hardwareadjustable with 0° to 10°angle between cabinets at2° step
• Ideal for small to medium sized application, from single pole mounted loudspeakers with 100°H x 10°V coverage
• to multiple cabinet full sized line array, the MITUS 206LA maybe used also in  outdoor applications where the system is not directly exposed to the elements
• Wide range of hardware accessories for flying and ground stacked configurations
• Very lightweight, only 14Kg

Specification
