Electro Voice Electro Voice ZXA1-Sub 12" Powered Subwoofer

Spesifikasi Electro Voice ZXA1-Sub 12" Powered Subwoofer

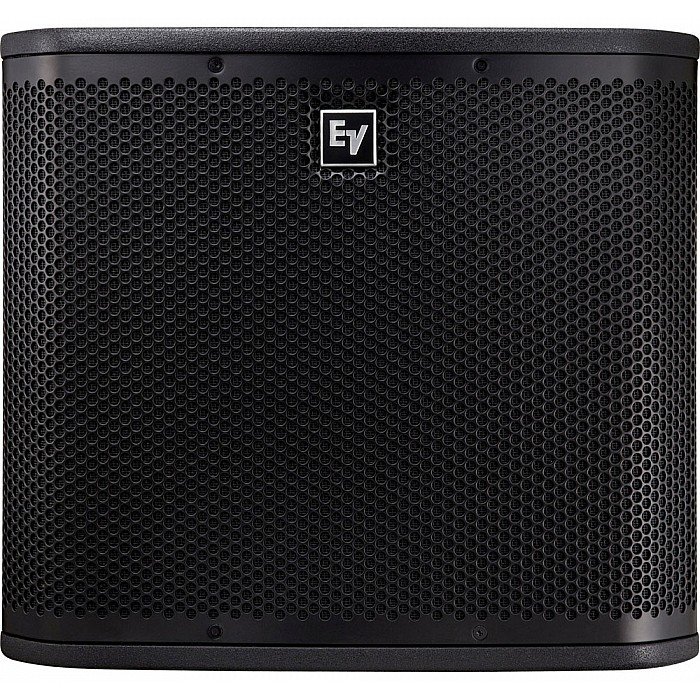

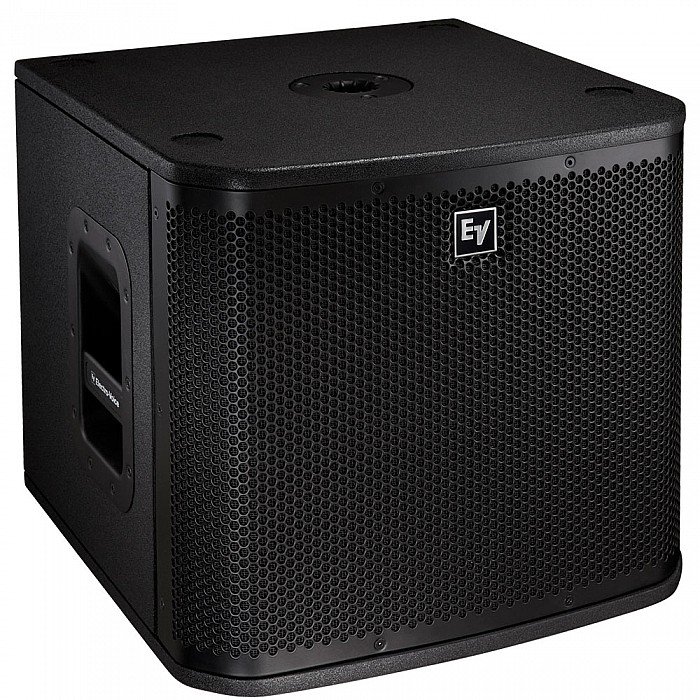

Electro Voice ZXA1-Sub 12" Powered Subwoofer

Extending the ZXA1's size-defying performance and sleek styling into the low-end realm, the ZXA1-Sub packs 700-W of self-powered punch into a low-profile wood enclosure. Match ZXA1 with ZXA1-Sub and hear just how big a small rig can sound, whether you want to add a tight thump to a DJ set or give the highs and mids some breathing room in a live performance. Take the stereo XLR outputs from your mixer and plug into the stereo XLR inputs of the ZXA1, then patch the stereo outputs into a pair of powered main speakers. The ZXA1 is equipped with a 100Hz high pass filter that keeps everything below 100Hz in the ZXA1 so your main speakers' power amp doesn't have to process the low end. Low frequencies are the most taxing aspect of any signal for a power amp, so not only will you get a perfectly tuned low end, your main speakers will operate with much greater efficiency.

Features

Integrated 700-W Class-D amplifier
EVS-12S 12-inch woofer
126 dB maximum SPL
Dual XLR stereo inputs and outputs
Pole mount for full-range systems
9-ply/15-mm wood enclosure, internally braced,
with textured paint
46 pounds, with integral handle for easy carrying
ZXA1-Sub 12" Powered Subwoofer Specifications:
Freq. Range: (-10 dB): 44Hz - 118Hz
Coverage: Omnidirectional
High Pass Frequency: 100 Hz, User Selectable
LF Transducer: (1) EVS-12S, 305mm (12”) Woofer
Enclosure Material: 9-ply/15-mm wood

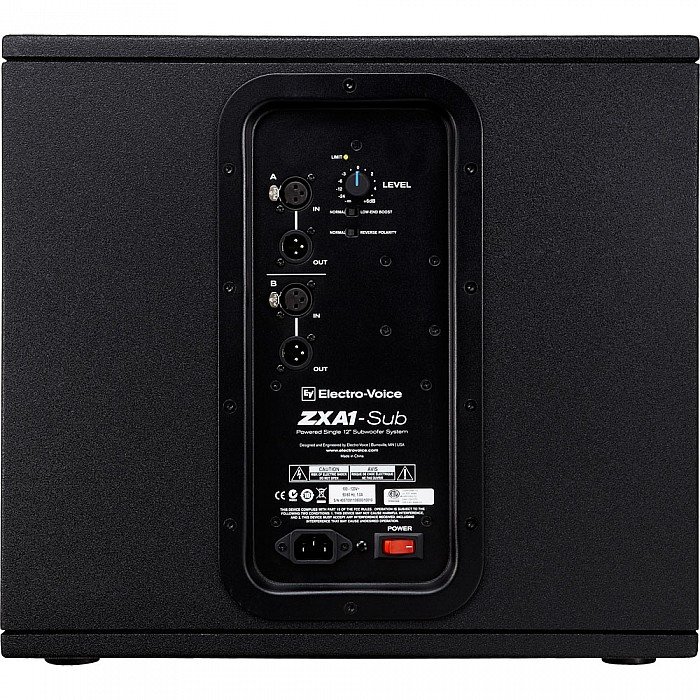

Connectors: (2) XLR Stereo Input, (2) XLR Stereo Output
Amplifier Power Output: 700W
Power Requirement (230V): 120V: 90V - 132V, 1.0A (1/8 power) 50-60Hz
230V: 190V-264V, 0.6A (1/8 power), 50-60Hz
