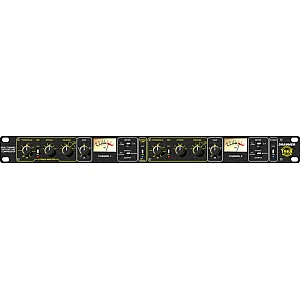

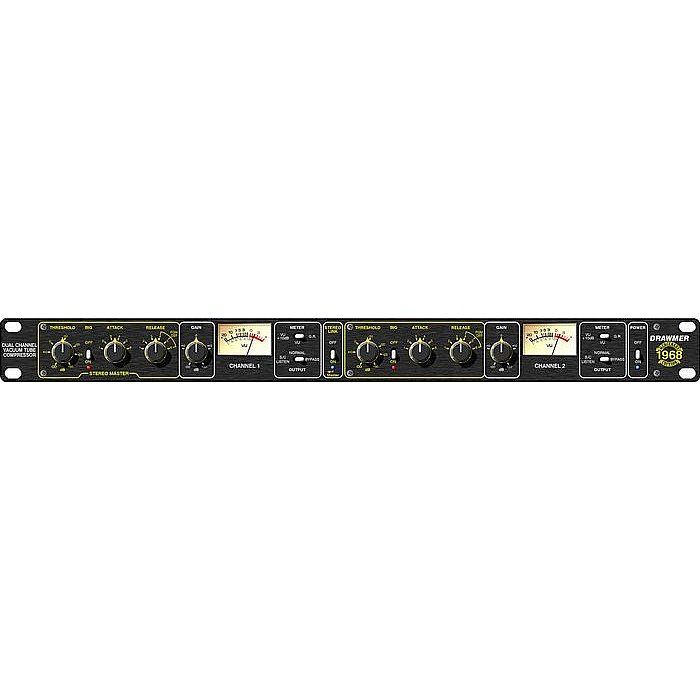

Drawmer 1968 Mercenary Edition Tube Compressor

The 1968 is a 1U Tube/FET 'stereo bus' compressor which by design delivers a transparent 'open' sound even during periods of heavy compression. Featured on both channels is a switchable 'BIG' mode which applies less processing to the fundamental low frequency but still disciplines the upward associated harmonics which if untamed can result in a 'boomy' or 'boxy' sound. The result - a solid bottom end with enhanced sub-bass and a smoother, wider frequency response overall.

Features

    * 2 Channel Tube/FET Compressor2 soft-knee compressors with variablethreshold, attack, release and output gainSwitchable BIG control on each channelDual mono or true stereo link operationSide chain access and side chain listen facilityVU metering of gain reduction and output levelsSwitchable +10dB mode on VU re-scalesthe meter for users working at 'hot' output levels.VU red warning glow to signify 'approaching clipping'Balanced +4dB XLR in/outs

1968 Mercenary Edition Tube Compressor Specifications:

    * INPUT IMPEDANCE 20K OhmsMAXIMUM INPUT LEVEL +20dBuOUTPUT IMPEDANCE 50 OhmsMAXIMUM OUTPUT LEVEL +22dBm (balanced)BANDWIDTH <17Hz to 28KHz -1dB<10Hz to 47.5kHz -3dBUNITY GAIN NOISE -85dB, 22Hz-22kHzDISTORTION @ 1KHzLine Input with BYPASS selected < 0.1%Line Input with NORMAL selected < 0.35%CROSSTALK >70dB@10kHz
